988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Transmission Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

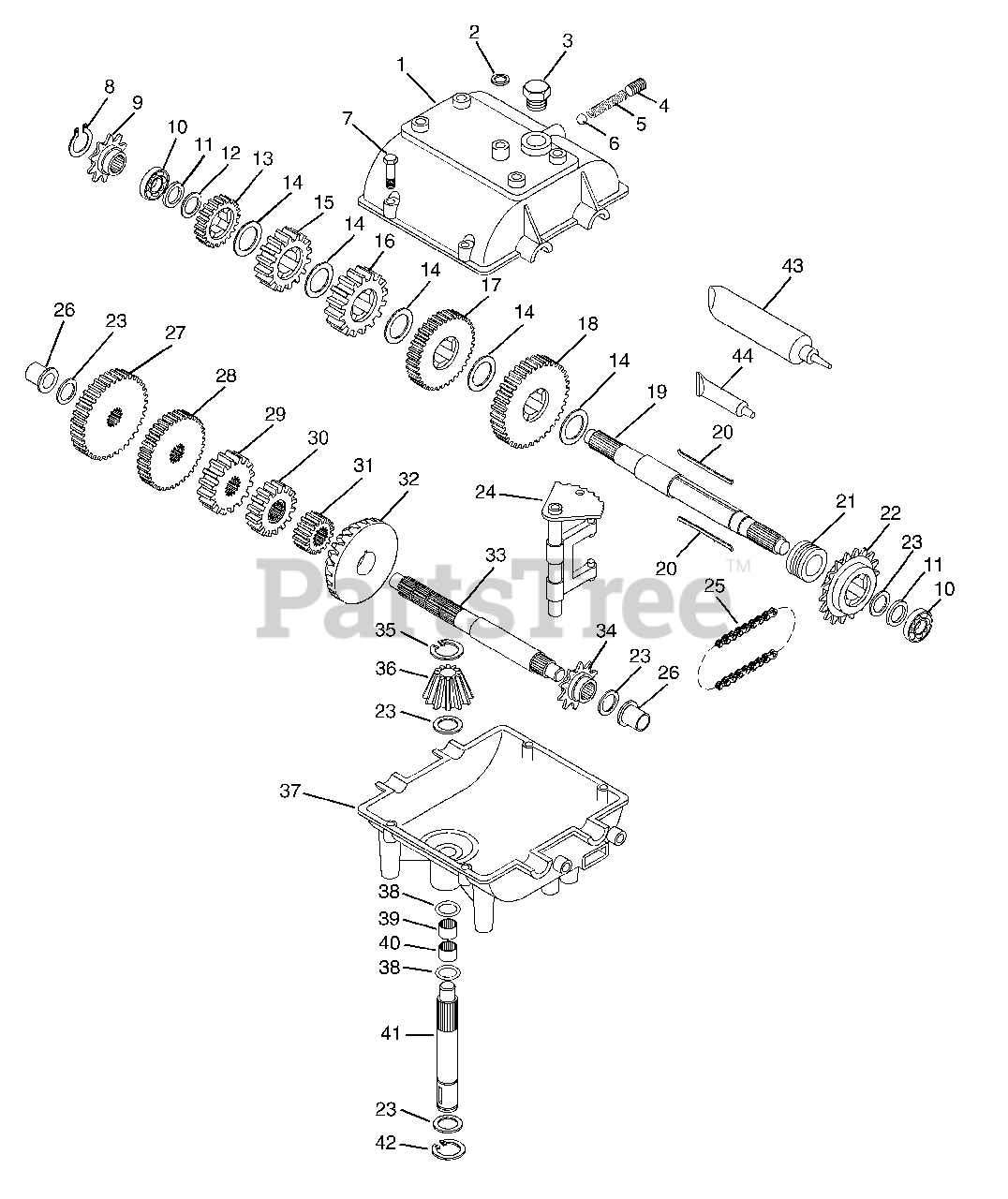

Transmission Parts Diagram

  • Title

1

Gravely 772099A

Cover, Transmission

$

$

Not available

2

Gravely 778069

Seal, Square Cut

$

$

Not available

3

Gravely 792074

Plug, Threaded

$

$

Not available

4

Gravely 792078

Screw, Set 3/8-16 x 3/8

$

$

Not available

5

Gravely 792079

Spring

$

$

Not available

6

Gravely 792077

Ball, Steel 5/16

$

$

Not available

7

Gravely 792073

Screw, HHD Taptite 1/4-20 x 1-1/4

$

$

Not available

8

Gravely 792072

Ring, Retaining

$

$

Not available

9

Gravely 786095

Sprocket (12 Teeth)

Note: (12 Teeth)

$

$

Not available

10

Gravely 780092

Bearing, Ball

$

$

Not available

11

Gravely 780065

Washer, Thrust

$

$

Not available

12

Gravely 780109

Washer, Thrust

$

$

Not available

13

Gravely 778121A

Gear, Spur (20 Teeth)

Note: (20 Teeth)

$

$

Not available

14

Gravely 780108

Washer, Thrust

$

$

Not available

15

Gravely 778122A

Gear, Spur (22 Teeth)

Note: (22 Teeth)

$

$

Not available

16

Gravely 778123A

Gear, Spur (25 Teeth)

Note: (25 Teeth)

$

$

Not available

17

Gravely 778124A

Gear, Spur (30 Teeth)

Note: (30 Teeth)

$

$

Not available

18

Gravely 778125

Gear, Spur (35 Teeth)

Note: (35 Teeth)

$

$

Not available

19

Gravely 776307

Shaft, Output & Brake

$

$

Not available

20

Gravely 792089A

Key

$

$

Not available

21

Gravely 784266

Collar, Shift

$

$

Not available

22

Gravely 786083

Sprocket (18 Teeth)

Note: (18 Teeth)

$

$

Not available

23

Gravely 780072

Washer, Thrust

$

$

Not available

24

Gravely 784267

Rod & Fork Assembly, Shift

$

$

Not available

25

Gravely 786081

Chain, Roller (No. 41 Chain, 24 Links)

Note: (No. 41 Chain, 24 Links)

$

$

Not available

26

Gravely 780105A

Bushing, Flanged

$

$

Not available

27

Gravely 778129A

Gear, Spur (30 Teeth)

Note: (30 Teeth)

$

$

Not available

28

Gravely 778128A

Gear, Spur (28 Teeth)

Note: (28 Teeth)

$

$

Not available

29

Gravely 778127A

Gear, Spur (25 Teeth)

Note: (25 Teeth)

$

$

Not available

30

Gravely 778126A

Gear, Spur (20 Teeth)

Note: (20 Teeth)

$

$

Not available

31

Gravely 778136

Gear, Spur (15 Teeth)

Note: (15 Teeth)

$

$

Not available

32

Gravely 778137A

Gear, Bevel (42 Teeth)

Note: (42 Teeth)

$

$

Not available

33

Gravely 776134

Shaft, Counter

$

$

Not available

34

Gravely 786082

Sprocket (9 Teeth)

Note: (9 Teeth)

$

$

Not available

35

Gravely 788040

Ring, Retaining

$

$

Not available

36

Gravely 778113A

Bevel Pinion, Input

$

$

Not available

37

Gravely 770090A

Case, Transmission

$

$

Not available

38

Gravely 792001

O-Ring

$

$

Not available

39

Gravely 780142

Bearing, Needle

$

$

Not available

40

Gravely 780086

Bearing, Needle

$

$

Not available

41

Gravely 776135

Shaft, Input

$

$

Not available

42

Gravely 792035

Ring, Retaining

$

$

Not available

43

Gravely 788067B

Grease (32 oz. Bottle Bentonite Grease)

Note: (32 oz. Bottle Bentonite Grease)

$

$

Not available

44

Gravely 510334

Gasket Eliminator (Loctite 515)

Note: (Loctite 515)

$

$

Not available
