988084 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Gear Selector Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

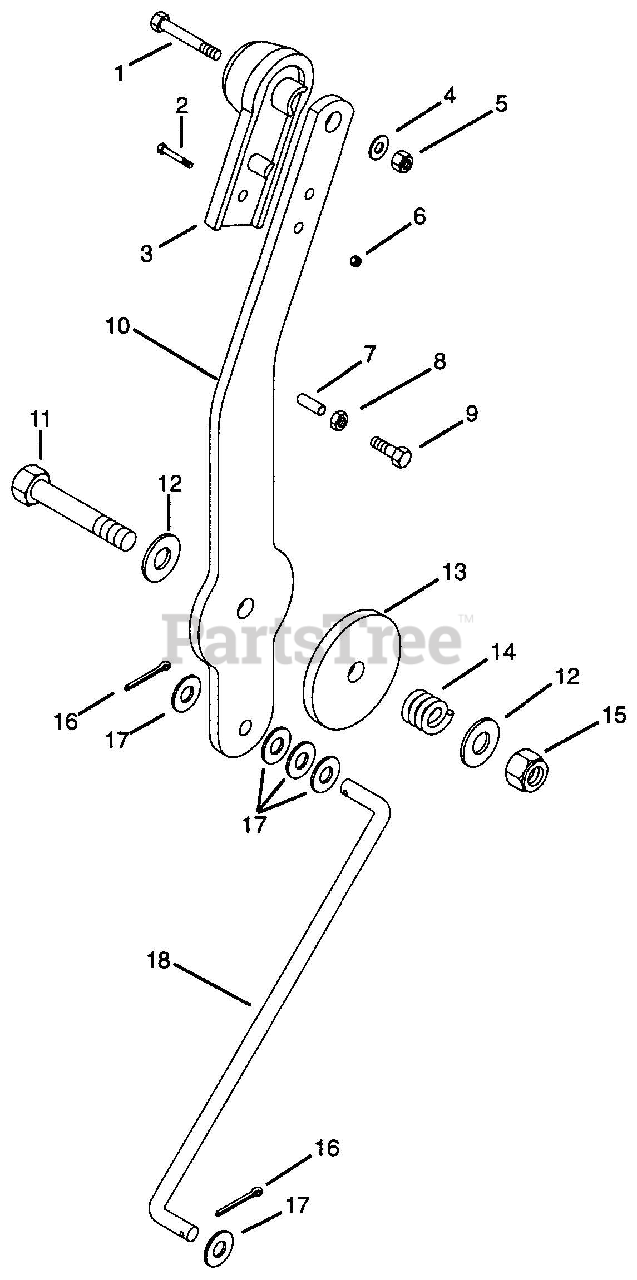

Gear Selector Parts Diagram

  • Title
1

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06110700

Screw-Machine 6-32 x .625

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 041252

Know - Hand Control
(Superseded to 07525800)

Note: Gravely Part Number

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x 625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06538900

Nut-Locking-Machine 6-32 w/Insert

$

$

Not available

7

Gravely 019362

Cap
(Superseded to 07520600)

Note: Gravely Part Number

$

$

Not available

8

Gravely 06533200

Nut-Hex .250-20 Grade 2
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 051128

Lever - Speed Control
(Superseded to 08843700)

Note: Gravely Part Number

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05966600

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 051230

Disc - Friction Material
(Superseded to 08844900)

Note: Gravely Part Number

$

$

Not available

14

Gravely 011779

Spring - Compression .125 x .78 x 1.00
(Superseded to 08327000)

Note: Gravely Part Number

$15.99

$

In Stock, only 2 left!

0

15

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06707000

Pin-Cotter .09 x 1.0
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 051718

Rod - Speed Control
(Superseded to 08879100)

Note: Gravely Part Number

$

$

Not available
