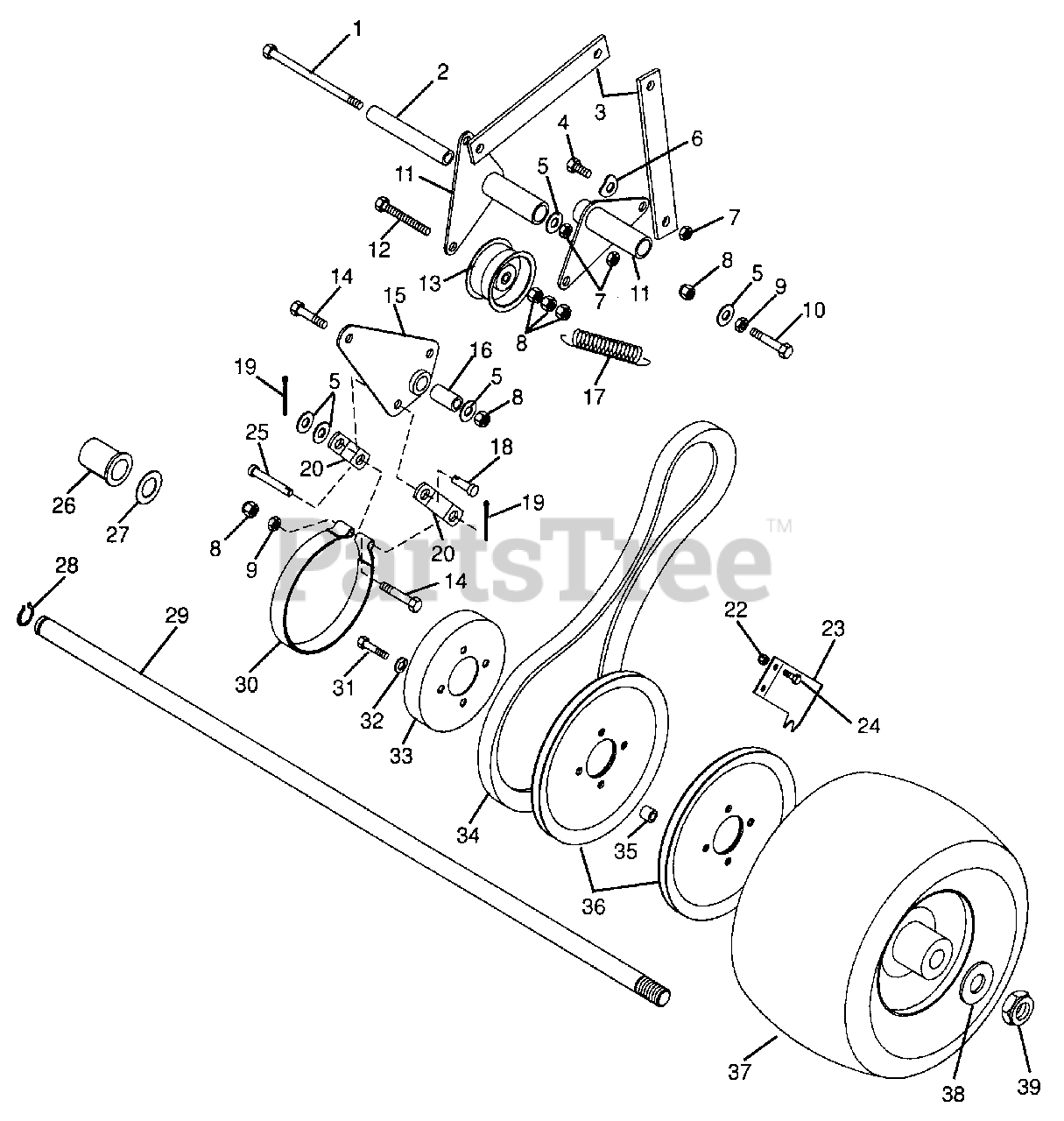

988082 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Wheel Drive Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

Wheel Drive Parts Diagram

  • Title

1

Gravely 05957700

Bolt-Hex .38-16 x 5.00
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 049665

Bush, Steel .385 x .610 x 3.85
(Superseded to 08836700)

$

$

Not available

3

Gravely 049668

Strap, Wheel Clutch
(Superseded to 08836800)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 041623

Washer-Spring .375
(Superseded to 06433000)

$

$

Not available

7

Gravely 06535300

Nut-Locking-Center .625-10 Grade 2

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06529600

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 049266

Weldment, Wheel Clutch Arm
(Superseded to 08834100)

$53.99

$

Usually ships in 4-12 days

0

12

Gravely 05957800

Bolt-Hex .38-16 x 3.0 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 048870

Sheave 3.25 x 1.25
(Superseded to 07318400)

$22.99

$

In Stock, only 1 left!

0

14

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

15

Gravely 049036

Weldment, Brake Arm
(Superseded to 08832500)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 049027

Bushing, Sleeve .391 x .622 x .950
(Superseded to 08833400)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 034400

Spring-Tension .069 x .62 x 3.50
(Superseded to 08332000)

$11.99

$

In Stock, only 1 left!

0

18

Gravely 06814800

Pin-Clevis .38 x .75

$3.99

$

In Stock, only 4 left!

0

19

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

20

Gravely 049026

Link, Brake Arm
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

21

Gravely 06535400

Nut, Locking 3/4 -10

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 052691

Cleaner, Pulley Groove Left Hand
(Superseded to 08848900)

$

$

Not available

23

Gravely 052692

Cleaner, Pulley Groove Right Hand
(Superseded to 08849000)

$25.99

$

Usually ships in 4-12 days

0

24

Gravely 05947200

Bolt-Hex .31-18 x .625
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

25

Gravely 011718

Pin-Clevis .372 x 1.25
(Superseded to 06814900)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 049969

Bushing-Flange 1.010 x 1.38 x 1.4 x 1.65
(Superseded to 05517900)

$5.99

$

In Stock, only 2 left!

0

27

Gravely 017959

Washer-Thrust 1.55 x 1.002 x .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

28

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

29

Gravely 049034

Shaft, Axle
(Superseded to 08832300)

$

$

Not available

30

Gravely 088806

Assembly, Brake Band, Pro
(Superseded to 08880600)

$58.99

$

In Stock, only 2 left!

0

31

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

32

Gravely 120214

Washer-Lock External .375 x .050
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 049015

Drum, Brake
(Superseded to 08863900)

$45.99

$

In Stock, Qty 5

0

34

Gravely 049029

V-Belt, Wheel Drive Set (2)
(Superseded to 07222400)

Note: (2)

$83.99

$

In Stock, only 4 left!

0

35

Gravely 048868

Bushing, Sleeve .385 x .625 x .475
(Superseded to 08809500)

$

$

Not available

36

Gravely 049033

Pulley-V 9.00 x 3.75
(Superseded to 07319700)

$

$

Not available

37

Gravely 07147300

Tire/Wheel Assembly 13 x 6.50-6
(Superseded to 07100239)

$159.99

$

Usually ships in 4-12 days

0

38

Gravely 06441500

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

39

UNKNOWN

UNKNOWN

$

$

Not available
