988082 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Steering Control Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

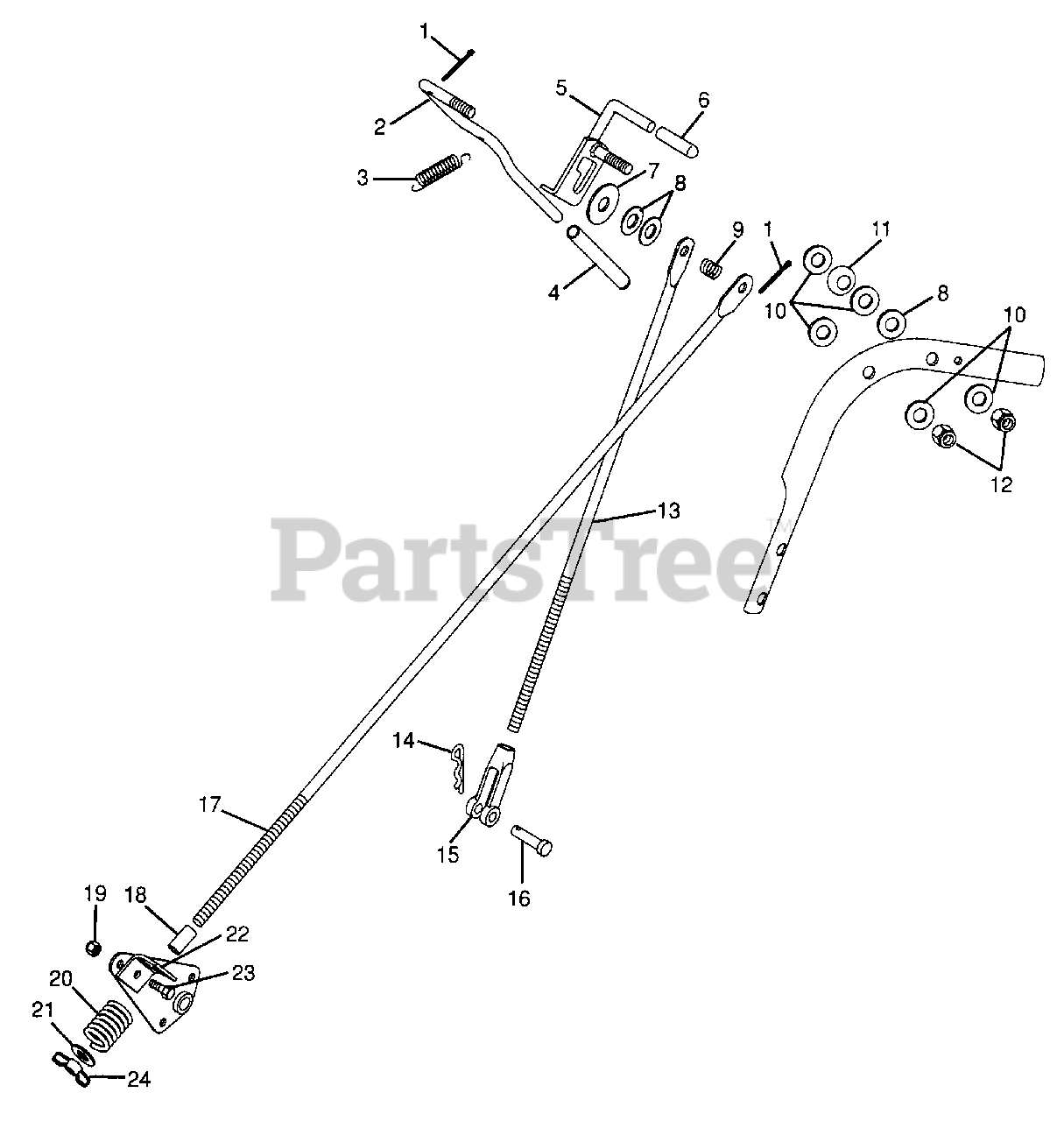

Steering Control Parts Diagram

  • Title
1

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

2

Gravely 052624

Lever, Hand Control
(Superseded to 04905200)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 043446

Spring-Tension .041 x .500 x 1.750
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 043197

Grip, Hand Clutch Lever
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 042990

Weldment, Clutch-Brake Lock
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 06442600

Washer-Flat-Steel .438 x 1.375 x .083

$

$

Not available

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 043193

Spring-Compression .045 x .600 x .750
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

10

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

11

Gravely 041623

Washer-Spring .375
(Superseded to 06433000)

$

$

Not available

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 049705

Rod, Clutch Actuating
(Superseded to 08878600)

$49.99

$

Usually ships in 4-12 days

0

14

Gravely 06713500

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 121741

Pin, Clevis 5/16 x .812
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 049337

Rod, Brake
(Superseded to 08878500)

$

$

Not available

18

Gravely 050094

Bushing .327 x .411 x 2.0
(Superseded to 08841300)

$

$

Not available

19

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 049704

Bracket, Brake Rod
(Superseded to 08837000)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06537100

Nut-Nylock-Wing .312-18

$5.99

$

In Stock, only 1 left!

0
