988082 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Electric System - 18 H.P. (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

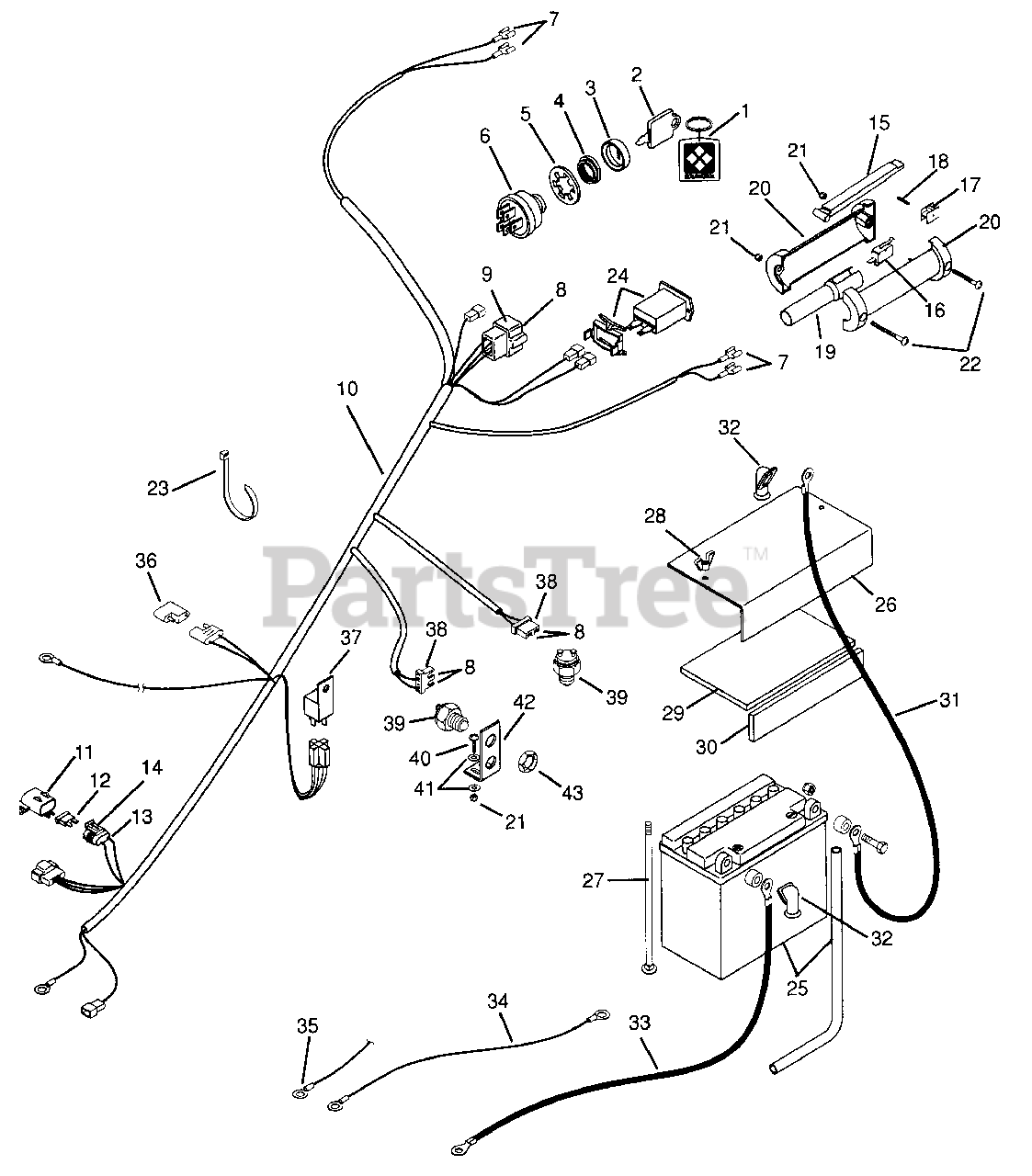

Electric System - 18 H.P. (Electric Start) Parts Diagram

  • Title
1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 018586

Washer-Lock .625
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

8

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

9

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

10

Gravely 04900200

Wire Harness, Pro 200

$

$

Not available

11

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

12

Fuse, 30 AMP

Fuse, 30 AMP

$

$

Not available

13

Gravely 045922

Terminal, For 14-16 Ga Wire
(Superseded to 20822900)

$

$

Not available

14

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

15

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

17

Gravely 08855100

Holder, Switch

$

$

Not available

18

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, only 2 left!

0

19

Gravely 08853100

Insert, Handlebar

$

$

Not available

20

Gravely 08870200

Handle, Left Hand and Right Hand

$35.99

$

In Stock, only 2 left!

0

21

Gravely 06536000

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06118300

Screw-Machine 10-24 x 1.50

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

25

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

$

$

Not available

26

Gravely 049294

Cover, Battery
(Superseded to 08835800)

$

$

Not available

27

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00
(Superseded to 06200229)

$4.49

$

In Stock, only 2 left!

0

28

Gravely 06537500

Nut-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

29

Gravely 050417

Pad, Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

30

Gravely 050418

Pad, Battery
(Superseded to 08800600)

$

$

Not available

31

Gravely 049101

Cable, Battery to Solenoid
(Superseded to 08987000)

$51.99

$

In Stock, only 1 left!

0

32

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

33

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

34

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

35

Gravely 035378

Terminal, Ring Tongue
(Superseded to 08805800)

$

$

Not available

36

Gravely 03081700

Molded Diode Plug - Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

37

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

38

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 034640

Switch-Neutral Start N.C
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

40

Gravely 06116900

Screw-Machine 10-24 x .750
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

41

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

42

Gravely 034637

Bracket-Interlock Switch
(Superseded to 08803600)

$

$

Not available

43

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0
