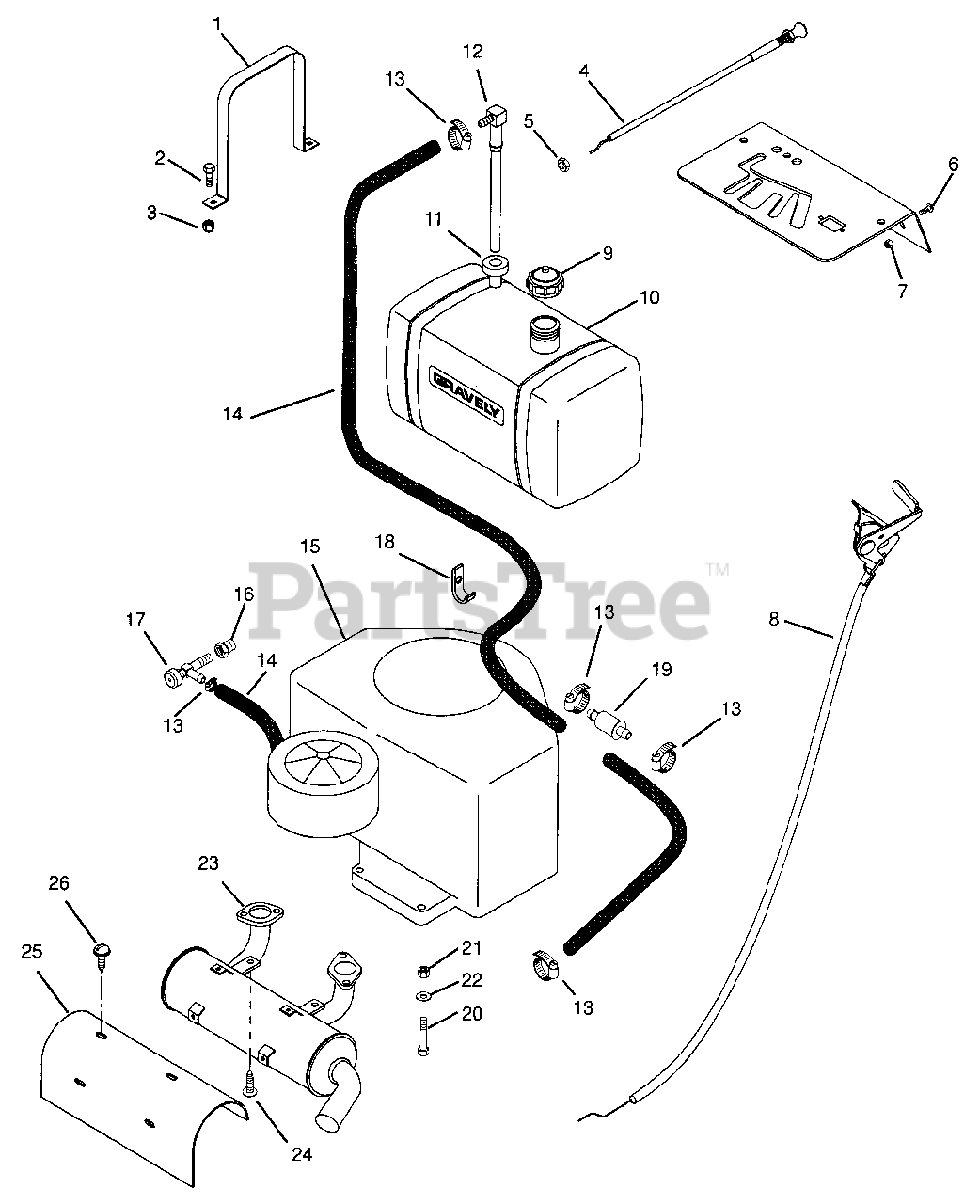

988081 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

  • Title

1

Gravely 049338

Strap, Fuel Tank
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

2

Gravely 05957900

Bolt-Hex .25-20 x .63
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

3

Gravely 06529700

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 035137

Control, Choke
(Superseded to 06924800)

Note: (Model 081)

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 069361

Cable, Choke
(Superseded to 06936100)

Note: (Model 082)

$

$

Not available

5

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06925700

Assembly Throttle Control Cable
(Superseded to 06941000)

Note: (Model 081)

$65.99

$

Usually ships in 4-12 days

0

8

Gravely 06925800

Throttle Control Cable Assembly
(Superseded to 06943700)

Note: (Model 082)

$59.99

$

Usually ships in 4-12 days

0

9

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

10

Gravely 088933

Tank, Fuel Gravely Pro
(Superseded to 08893300)

$

$

Not available

11

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 088936

Fitting, Tank
(Superseded to 08893600)

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 052614

Engine 16 HP Briggs Twin

Note: (Model 081)

$

$

Not available

15

Gravely 08248100

Engine Kohler CV 18 HP PS-61541

Note: (Model 082)

$

$

Not available

16

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

Gravely 069094

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

19

Gravely 08811700

Filter, Fuel

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09204700

Muffler, Kohler CV18-CV25

Note: (Model 082)

$335.99

$

Usually ships in 4-12 days

0

23

Gravely 052615

Kit, Muffler
(Superseded to 08870700)

Note: (Model 081)

$

$

Not available

24

Gravely 07413100

Screw-Tapping M6-1 x 25MM

$

$

Not available

25

Gravely 08898000

Heat Shield

Note: (Model 082)

$55.99

$

Usually ships in 4-12 days

0

26

Gravely 07413200

Screw-Tapping with Washer

$4.99

$

In Stock, only 2 left!

0
