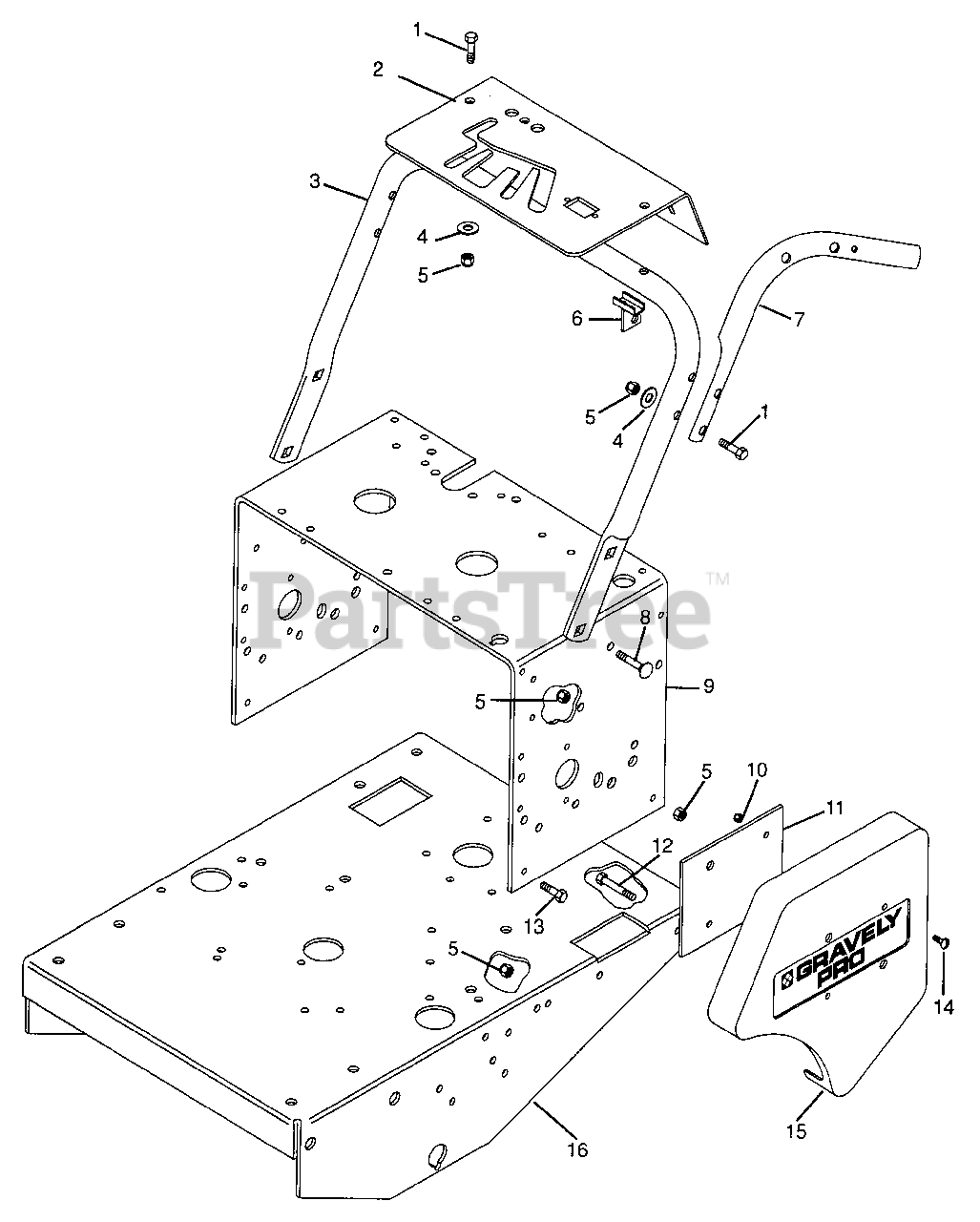

988081 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

Frame Parts Diagram

  • Title

1

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

2

Gravely 049290

Panel, Instrument
(Superseded to 08835500)

$

$

Not available

3

Gravely 049032

Tube, Handlebar Mounting
(Superseded to 08868500)

$

$

Not available

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529600

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 049272

Weldment, PTO Lever Mounting
(Superseded to 08834500)

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 052622

Handlebar Left Hand
(Superseded to 08847551)

$

$

Not available

7

Gravely 052623

Handlebar Right Hand
(Superseded to 08847651)

$

$

Not available

8

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

9

Gravely 049031

Support, Handlebar
(Superseded to 08832100)

$

$

Not available

10

Gravely 06529700

Nut-Locking-Center.250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 049340

Bracket, Belt Guard Left Hand
(Superseded to 08836000)

$

$

Not available

12

Gravely 05958000

Bolt-Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06118000

Screw-Machine .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 049709

Guard, Belt Left Hand
(Superseded to 08868000)

$

$

Not available

15

Gravely 049710

Guard, Belt Right Hand
(Superseded to 08868100)

$

$

Not available

16

Gravely 051938

Weldment, Pro Frame
(Superseded to 08866300)

$159.99

$

Usually ships in 4-12 days

0
