988081 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Electric System - 16 H.P. (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

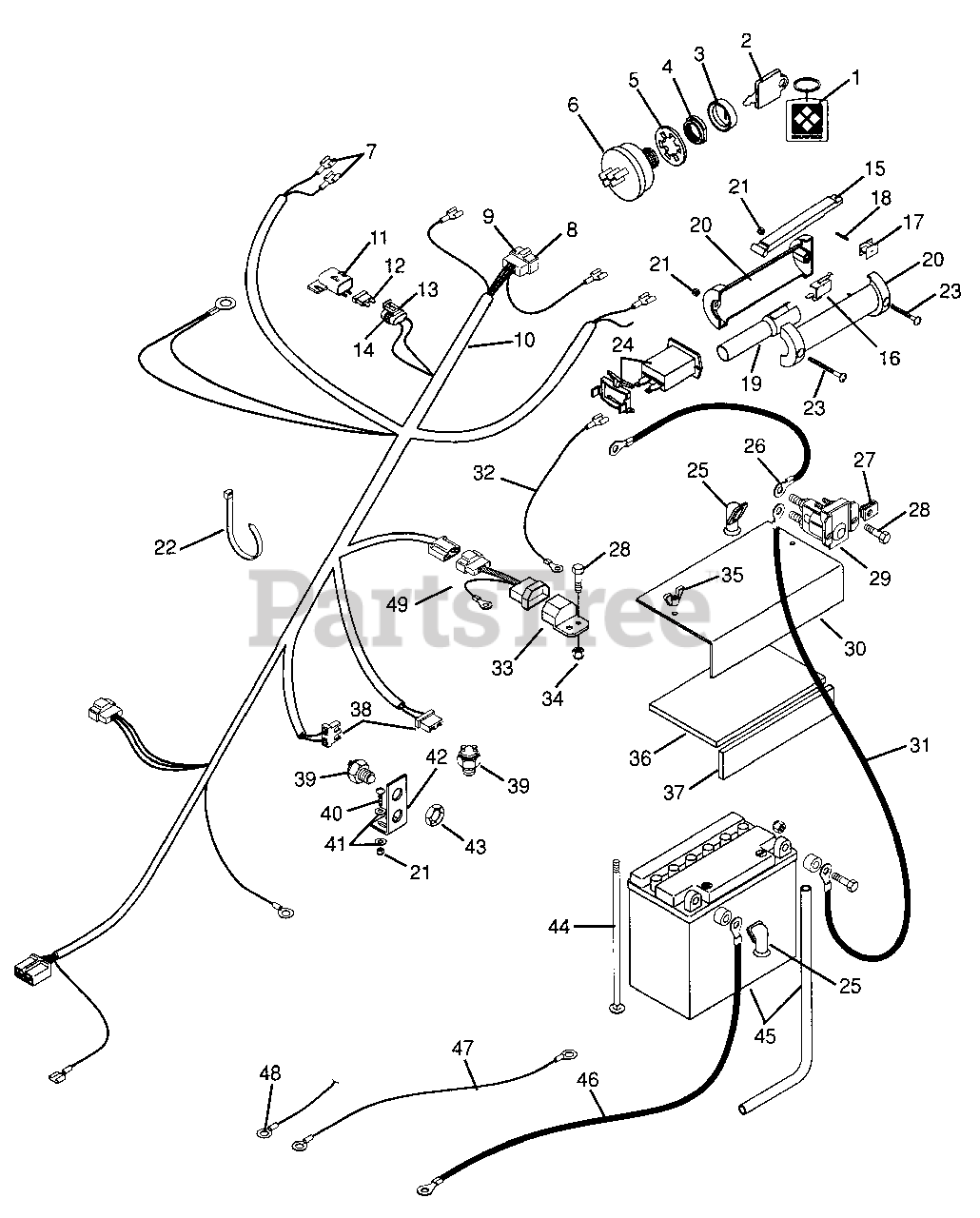

Electric System - 16 H.P. (Electric Start) Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 018586

Washer-Lock .625
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08883300

Switch-Key w/Carb. Terminal
(Superseded to 59211900)

$90.99

$

In Stock, only 1 left!

0

7

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

8

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

9

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

10

Gravely 08883400

Wire Harness, Pro 200

$

$

Not available

11

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

12

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 045922

Terminal, For 14-16 Ga Wire
(Superseded to 20822900)

$

$

Not available

14

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

15

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

17

Gravely 08855100

Holder, Switch

$

$

Not available

18

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, only 2 left!

0

19

Gravely 08853100

Insert, Handlebar

$

$

Not available

20

Gravely 08870200

Handle, Left Hand and Right Hand

$35.99

$

In Stock, only 2 left!

0

21

Gravely 06536000

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06118300

Screw-Machine 10-24 x 1.50

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

25

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

26

Gravely 03492500

Cable, Starter

$21.99

$

Usually ships in 4-12 days

0

27

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

28

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 045071

Solenoid
(Superseded to 03551000)

Note: (Models 007, 063)

$34.99

$

In Stock, Qty 14

0

30

Gravely 049294

Cover, Battery
(Superseded to 08835800)

$

$

Not available

31

Gravely 08816700

Cable, Battery to Solenoid

$

$

Not available

32

Gravely 021425

Wire, Instrument Panel
(Superseded to 08801600)

$

$

Not available

33

088858

Interlock Module

$

$

Not available

34

Gravely 06529700

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06537500

Nut-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

36

Gravely 050417

Pad, Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

37

Gravely 050418

Pad, Battery
(Superseded to 08800600)

$

$

Not available

38

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 034640

Switch-Neutral Start N.C
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

40

Gravely 06116900

Screw-Machine 10-24 x .750
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

41

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

42

Gravely 034637

Bracket-Interlock Switch
(Superseded to 08803600)

$

$

Not available

43

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

45

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

$

$

Not available

46

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

47

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

48

Gravely 035378

Terminal, Ring Tongue
(Superseded to 08805800)

$

$

Not available

49

Gravely 08885300

Adapter Harness, Interlock
(Superseded to 08885301)

$

$

Not available
