988079 - Gravely Pro 150 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 15hp Kohler

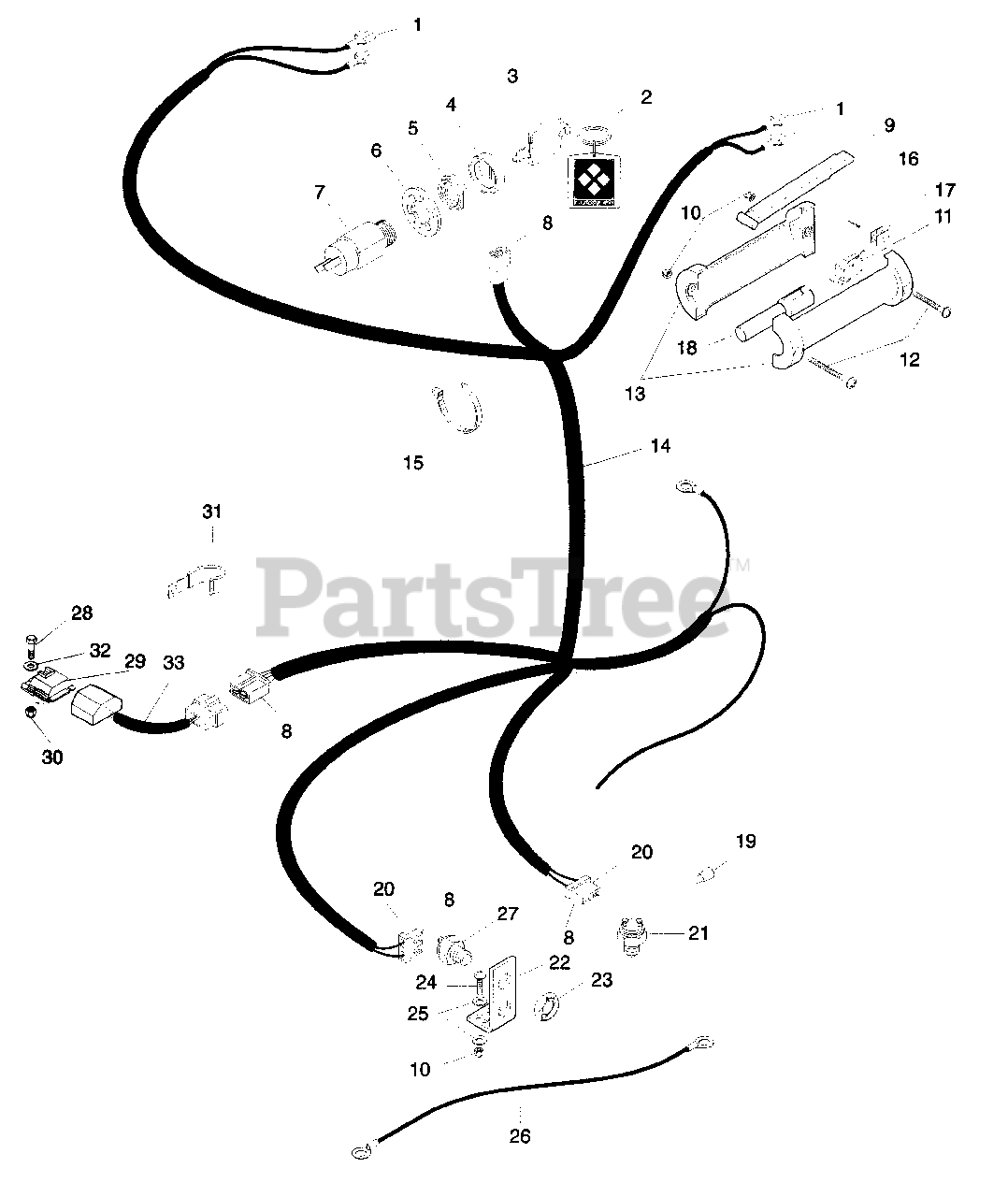

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 018586

Washer-Lock .625
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 024565

Key Switch Assembly

$

$

Not available

8

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

9

086022

Lever

$

$

Not available

10

Gravely 06536000

Nut-Locking-Nylon w/Insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 08828300

Switch

$

$

Not available

12

061183

Screw-Machine, Pan Head 10-24 x 1.50

$

$

Not available

13

Gravely 088702

Handle, Left Hand & Right Hand
(Superseded to 08870200)

$35.99

$

In Stock, only 2 left!

0

14

Gravely 088516

Harness, Wiring Pro Recoil
(Superseded to 08851600)

$

$

Not available

15

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 088551

Holder, Switch
(Superseded to 08855100)

$

$

Not available

18

Gravely 088531

Insert, Handlebar
(Superseded to 08853100)

$

$

Not available

19

Gravely 011763

Nut-Connector
(Superseded to 07016700)

$

$

Not available

20

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 034640

Switch-Neutral Start (N.C.)
(Superseded to 08803700)

Note: (N.C.)

$34.99

$

In Stock, only 1 left!

0

22

Gravely 034637

Bracket, Interlock Switch
(Superseded to 08803600)

$

$

Not available

23

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06116900

Bolt-Hex 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 0425529

Wire, Ground

$

$

Not available

27

Gravely 020916

Switch-Neutral Start
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

28

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

088857

Module

$

$

Not available

30

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 069160

J-Clamp
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

088856

Adapter Harness

Note: (075, 077)

$

$

Not available

33

088855

Adapter Harness, Interlock

Note: (078, 079)

$

$

Not available

34

Gravely 588009

Kit, Interlock Module

Note: (059, 060, 301)

$

$

Not available

34

Gravely 588011

Kit, Interlock Module Coil

Note: (069, 070, 074)

$

$

Not available
