988076 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM - 16, 18 AND 20 H.P. UNIT (ELECTRIC START) Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

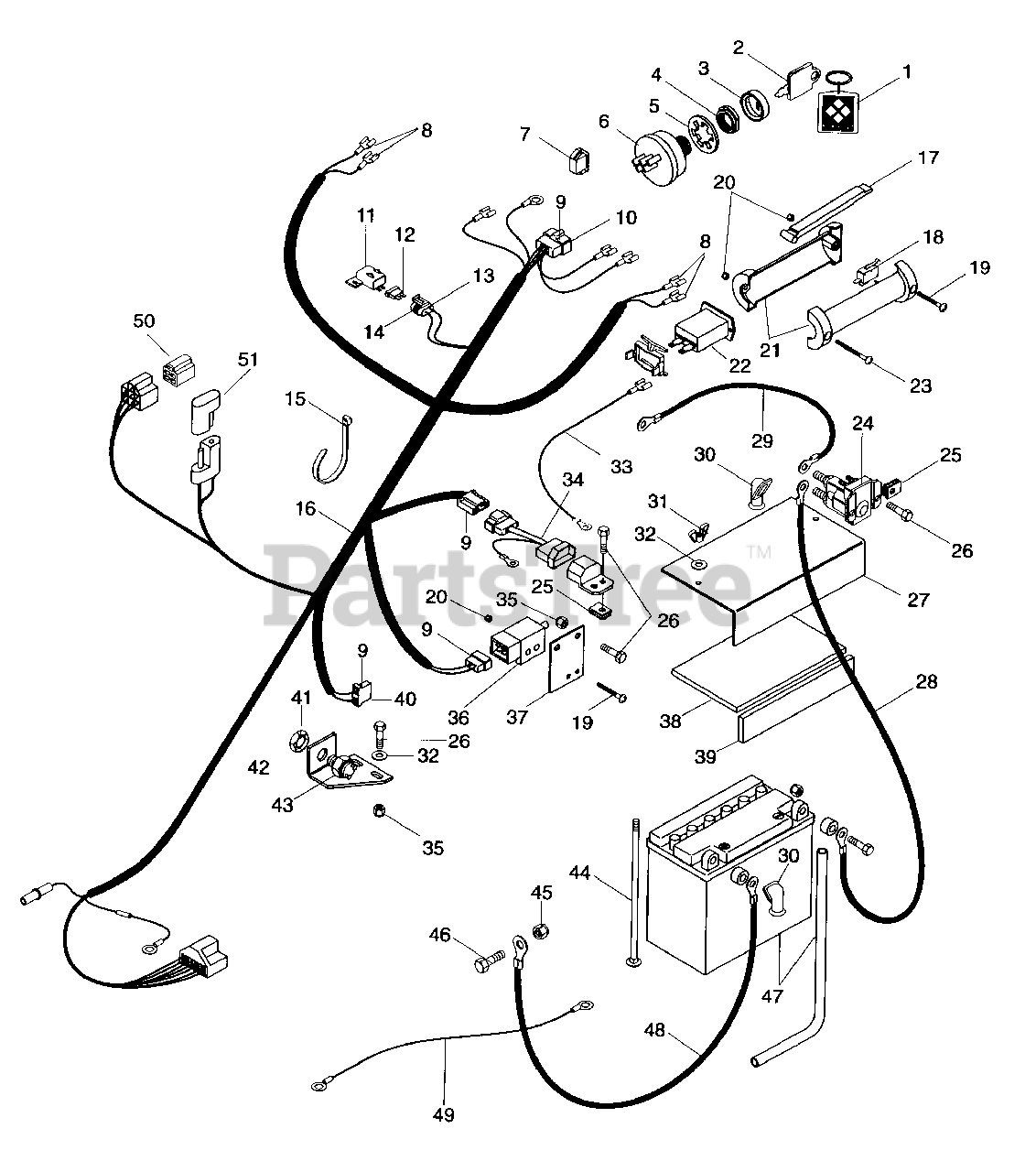

ELECTRICAL SYSTEM - 16, 18 AND 20 H.P. UNIT (ELECTRIC START) Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap - Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

5

Gravely 018586

Washer Lock .625
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 027396

Ignition Switch Assembly
(Superseded to 52709300)

Note: Model (064)

$56.99

$

In Stock, Qty 6

0

Gravely 088833

Switch, Key
(Superseded to 59211900)

Note: Model (019)

$90.99

$

Usually ships in 4-12 days

0

036023

Key Switch

Note: Models (073,076)

$

$

Not available

7

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

8

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

9

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

10

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

11

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

12

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 045920

Assembly, Connector, Weather Tight
(Superseded to 20822700)

$

$

Not available

14

Gravely 045923

Terminal, For 10-12 Gauge Wire
(Superseded to 20823001)

$

$

Not available

15

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 053036

Harness, Wiring, 20-HP Kohler
(Superseded to 08855601)

Note: Model (064)

$

$

Not available

Gravely 088832

Harness, Wiring, Pro-300/16 B & S
(Superseded to 08883200)

Note: Model (019)

$

$

Not available

088938

Harness, Wiring

Note: Models (073,076)

$

$

Not available

17

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

19

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 14

0

20

Gravely 190254

Nut-Locking 10-24 Nylon
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 053003

Handle
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

22

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

23

Gravely 159967

Screw-Machine 10-24 x 1.50
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 045071

Solenoid
(Superseded to 03551000)

Note: Model (064)

$34.99

$

In Stock, Qty 15

0

25

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

26

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 049294

Cover, Battery
(Superseded to 08835800)

$

$

Not available

28

Gravely 042129

Cable, Battery to Solenoid
(Superseded to 08816700)

$

$

Not available

29

Gravely 047649

Cable, Starter
(Superseded to 03492500)

Note: Model (019)

$21.99

$

Usually ships in 4-12 days

0

Gravely 035141

Cable, Solenoid to Starter
(Superseded to 08805700)

Note: Models (064,073,076)

$

$

Not available

30

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

31

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 20+

0

32

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 021425

Wire, Instrument Panel
(Superseded to 08801600)

$

$

Not available

34

Gravely 043435

Kit, Interlock Module, Electric
(Superseded to 58801000)

Note: Model (064)

$162.99

$

Usually ships in 4-12 days

0

Adapter Harness, Interlock

Adapter Harness, Interlock

Note: Model (064)

$

$

Not available

Module, Interlock, Electric

Module, Interlock, Electric

$

$

Not available

Gravely 088147

Kit, Interlock Module, Electric
(Superseded to 58800800)

Note: Model (019)

$

$

Not available

Adapter Harness, Interlock

Adapter Harness, Interlock

Note: Model (019)

$

$

Not available

Module, Interlock, Electric

Module, Interlock, Electric

Note: Model (019)

$

$

Not available

Service Bag

Service Bag

Note: Model (019)

$

$

Not available

35

Gravely 419454

Nut-Locking-Nylon .250-20 w/Insert Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

36

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

37

Gravely 051810

Bracket, Interlock Switch
(Superseded to 08846100)

$

$

Not available

38

Gravely 050417

Pad, Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

39

Gravely 050418

Pad, Battery
(Superseded to 08800600)

$

$

Not available

40

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 051717

Bracket, interlock Switch
(Superseded to 08846000)

$

$

Not available

43

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

44

Gravely 126922

Bolt-Round Head Square Neck .25-20 x 7.00
(Superseded to 06200229)

$4.49

$

In Stock, Qty 6

0

45

Gravely 419455

Nut-Locking Nylon .312-18 w/Insert Grade 2
(Superseded to 06500820)

Note: Models (064,073)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: Models (064,073)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 041358

Battery, 12 Volt
(Superseded to 78801800)

$

$

Not available

48

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

49

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

50

Gravely 030428

Relay

$

$

Not available

51

030817

Molded Diode Plug - Clear 1 AMP

$

$

Not available
