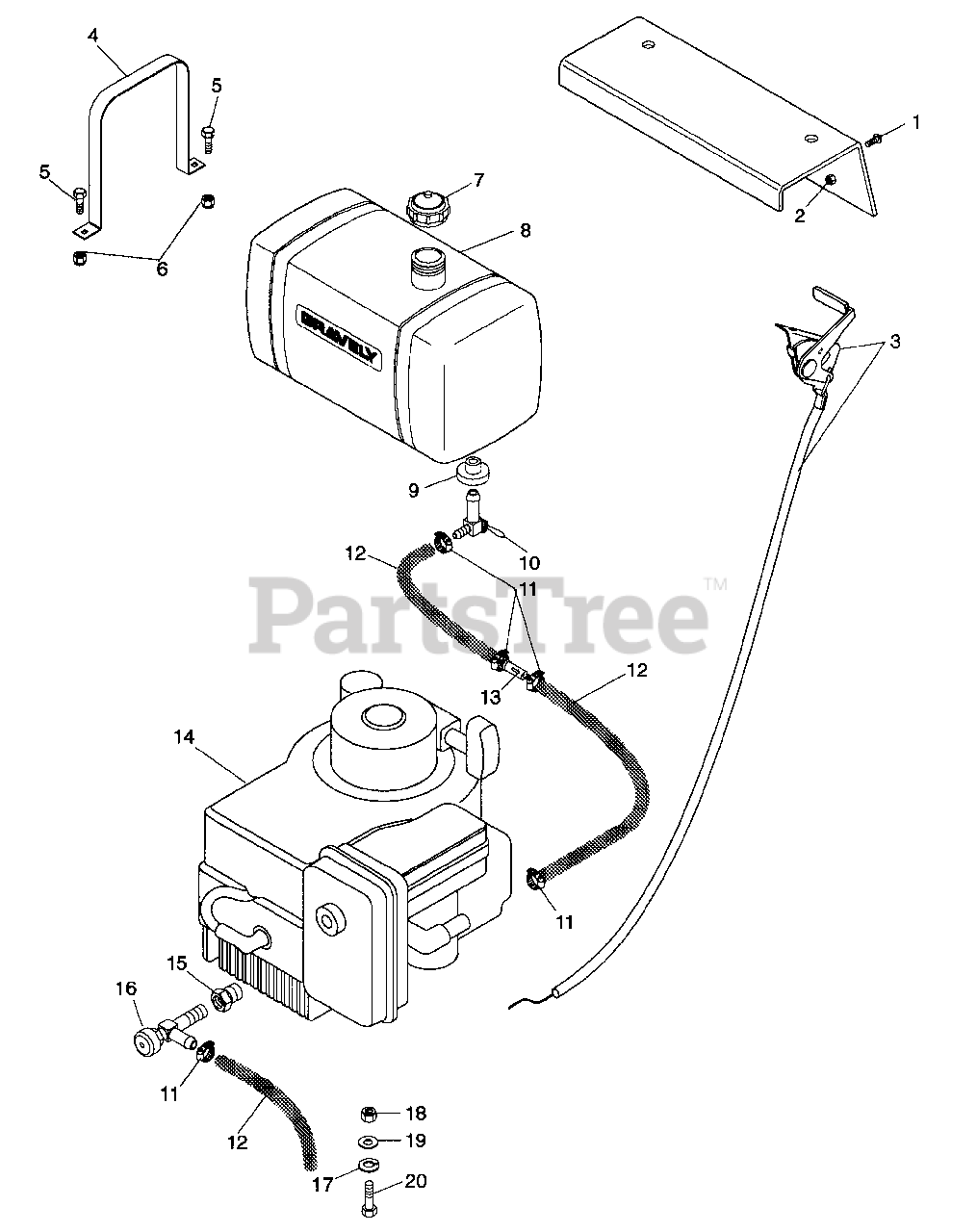

988074 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kohler (SN: 000101 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kohler

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 160046

Screw-Machine 10-32 x .50
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 088731

Assembly, Throttle Control/Cable
(Superseded to 06943600)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 091121

Tank Strap for 4.5 G Fuel Tank
(Superseded to 09112100)

$

$

Not available

5

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 091120

Fuel Tank, 4.5 Gallon
(Superseded to 09112000)

$

$

Not available

9

Gravely 047613

Bushing, Flange .375 x 1.06 x .625
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 049284

Valve, Ball Shut-Off
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

Filter, Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 044350

Engine, Kawasaki

Note: (Used Only On Model(s): 060,301).

$

$

Not available

14

Gravely 082375

Engine-14 HP Kawasaki

Note: (Used Only On Model(s): 059).

$

$

Not available

14

Gravely 048621

Engine, 14 HP Kohler, PS-141

Note: (Used Only On Model(s): 069).

$

$

Not available

14

Gravely 082446

Engine, 12.5 HP Command

Note: (Used Only On Model(s): 074).

$

$

Not available

14

Gravely 082454

Engine, 15 HP Kohler Command

Note: (Used Only On Model(s): 070).

$

$

Not available

15

Gravely 041831

Adapter, Oil Drain
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 021914

Bolt-Hex M8 x 1.25 x 30 MM
(Superseded to 05968200)

$3.99

$

Usually ships in 4-12 days

0

Gravely 088812

Guard, Muffler, 12.5 Kawasaki, Europro
(Superseded to 08881200)

Note: (Used Only On Model(s): 301).

$

$

Not available

Gravely 088813

Guard, Muffler, 14 Kawasaki, Europro
(Superseded to 08881300)

Note: (Used Only On Model(s): 059,060,301).

$

$

Not available
