988073 - Gravely Pro 300 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 18hp Kohler

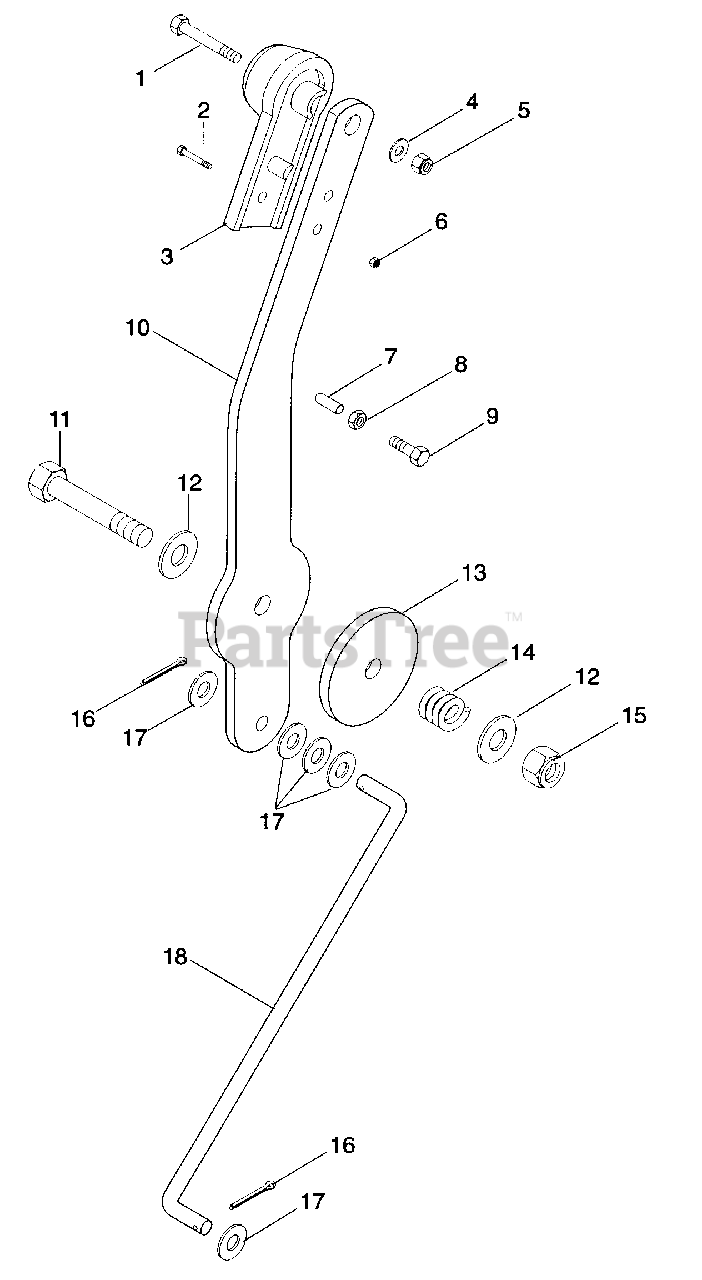

GEAR SELECTOR Parts Diagram

  • Title

1

Gravely 180034

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 159341

Screw-Machine 6-32 x .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 041252

Knob, Hand Control
(Superseded to 07525800)

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 427254

Nut-Locking-Machine 6-32 w/Insert
(Superseded to 06538900)

$

$

Not available

7

Gravely 019362

Cap
(Superseded to 07520600)

$

$

Not available

8

Gravely 120375

Nut-Hex .250-20 Grade 2
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 051128

Lever, Speed Control
(Superseded to 08843700)

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 180185

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 051230

Disc, Friction Material
(Superseded to 08844900)

$

$

Not available

14

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

15

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 121224

Pin-Cotter .09 x 1.0

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 051718

Rod, Speed Control
(Superseded to 08879100)

$

$

Not available
