988072 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Traction Clutch Linkage Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

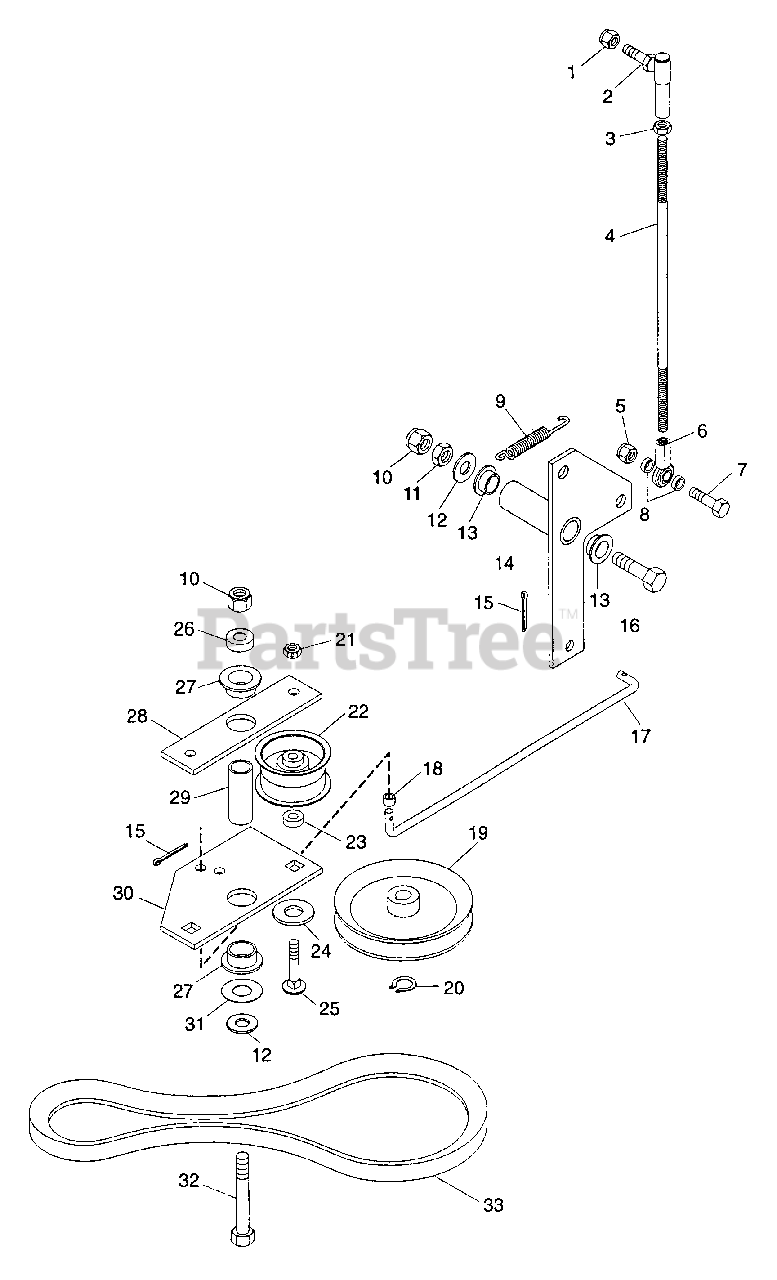

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 06524500

Nut-Locking-Nylon .375-24 Grade 2
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

2

Gravely 08801200

Joint, Steering Ball
(Superseded to 02917100)

$23.99

$

In Stock, Qty 6

0

3

Gravely 06522900

Nut-Hex .375-24 Grade 2
(Superseded to 06500940)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 08877500

Rod, Clutch Actuating

$

$

Not available

5

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 08821700

Rod End, Spherical Bearing

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 05915100

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

8

Gravely 05526700

Bushing-Flange .383 x .50 x .165

$

$

Not available

9

Gravely 08353300

Spring-Tension .095 x .500 x 5.5

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 06512900

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06502100

Nut .50-13
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06430200

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05521100

Bushing-Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

14

Gravely 08833600

Weldment, Clutch Arm

$

$

Not available

15

Gravely 06700100

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

16

Gravely 05940400

Bolt-Hex .50-13 x 4.50
(Superseded to 05962300)

$5.99

$

In Stock, only 2 left!

0

17

Gravely 08878100

Rod, Traction Clutch

$

$

Not available

18

Gravely 08813800

Bushing, Steel .380 x .495 x .437

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07319400

Sheave, Transmission

$59.99

$

Usually ships in 4-12 days

0

20

Gravely 05711900

Ring-Retaining-External .579 x .93

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06524800

Nut-Locking-Center .625-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07317200

Idler-Flat 2.468 x .38

$34.99

$

In Stock, only 2 left!

0

23

Gravely 03488200

Bushing .406 x .750 x .188

$5.99

$

In Stock, Qty 6

0

24

Gravely 06428300

Washer-Flat-Steel .531 x 1.063 x .095

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06217800

Bolt-Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 08841700

Bushing, Steel .790 x 1.00 x .320

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 05518400

Bushing-Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

28

Gravely 08821300

Plate, Idler

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 08815100

Bushing, Steel .560 x .745 x 2.04

$21.99

$

In Stock, only 1 left!

0

30

Gravely 08821200

Plate, Idler
(Superseded to 04905951)

$

$

Not available

31

Gravely 05419800

Bearing-Needle-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

32

Gravely 05936100

Bolt-Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

33

Gravely 07223800

V-Belt A-Section

$28.99

$

In Stock, only 2 left!

0
