988071 - Gravely Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) Gear Selector And Jack Shaft Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler

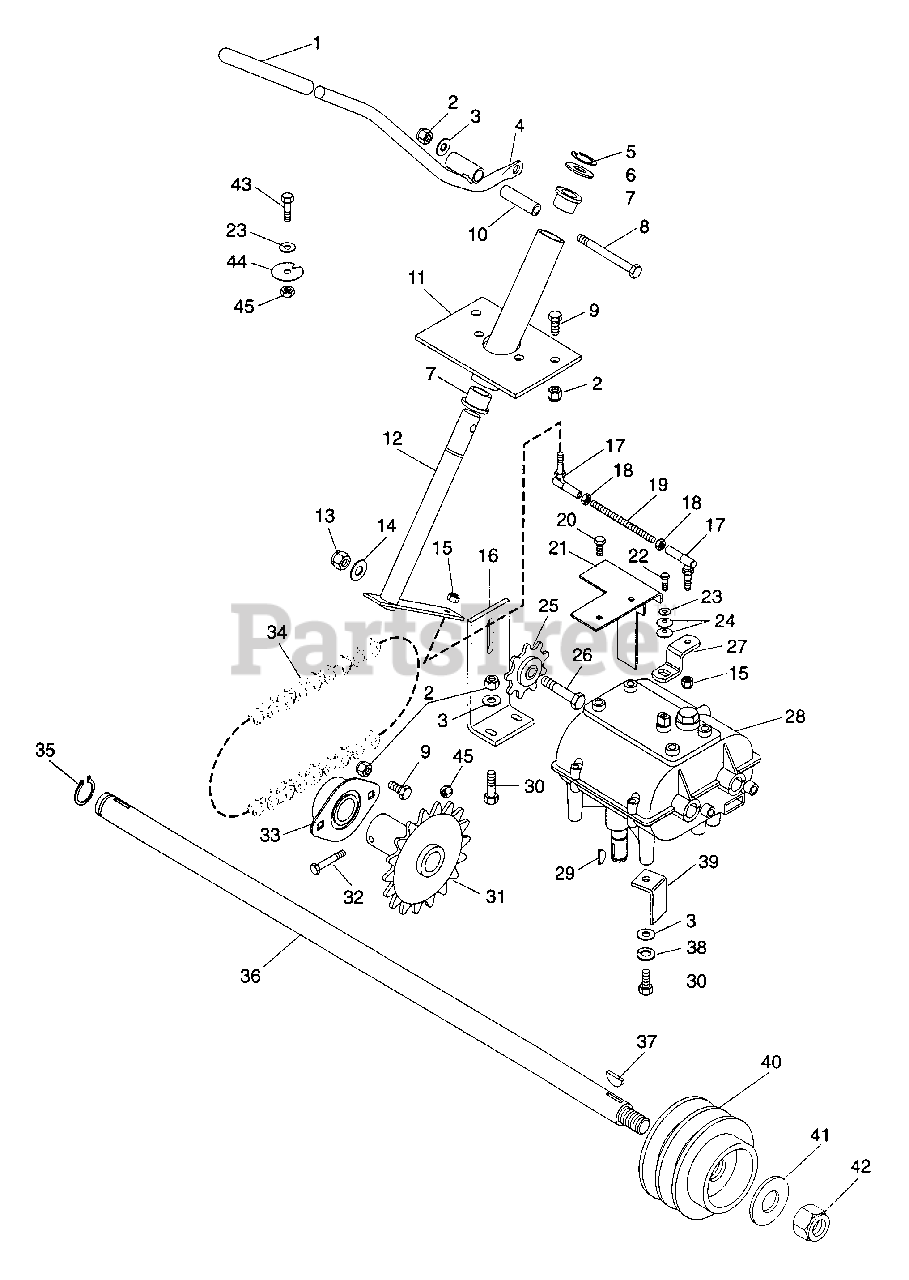

Gear Selector And Jack Shaft Parts Diagram

  • Title

1

Gravely 07528200

Grip, PTO Lever

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08833300

Weldment, Shift Lever

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 05714600

Ring-Retaining-External .689 x .077

$2.49

$

In Stock, Qty 5

0

6

Gravely 05427700

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

7

Gravely 05518400

Bushing-Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

8

Gravely 05934600

Bolt-Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 05913500

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 08833500

Bushing, Steel .328 x .497 x 1.53

$

$

Not available

11

Gravely 08832800

Weldment, Shifter Tube

$

$

Not available

12

Gravely 08833100

Weldment, Shifter Shaft

$

$

Not available

13

Gravely 06513500

Nut-Locking-Nylon .375-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06520600

Nut-Locking-Center .250-28 Grade 2
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

16

Gravely 08833900

Bracket, Idler Sprocket

$33.99

$

Usually ships in 4-12 days

0

17

Gravely 08802500

Ball, Joint Disconnecting

$

$

Not available

18

Gravely 06500400

Nut .250-28

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 08878700

Rod, Transmission Shifting

$

$

Not available

20

Gravely 07410900

Bolt-Tapping .312-18 x .62
(Superseded to 07400127)

$1.49

$

In Stock, Qty 12

0

21

Gravely 08846800

Guard, Chain

$

$

Not available

22

Gravely 05931000

Bolt-Hex .25-28 x .75 Grade 8
(Superseded to 05970000)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06412700

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06435000

Washer, Belleville

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 08835300

Sprocket, Idler

$

$

Not available

26

Gravely 05916100

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 08863751

Arm, Transmission Shift

$

$

Not available

28

Gravely 08870600

Transmission, Pro Line

$707.99

$

Usually ships in 4-12 days

0

29

Gravely 06608700

Key, Woodruff .19 x .75

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05918100

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 08838600

Weldment, 28T 1/2 P Sprocket

$196.99

$

Usually ships in 4-12 days

0

32

Gravely 05923300

Bolt-Hex .25-20 x 2.25 Grade 8
(Superseded to 05952700)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 05426500

Bearing-Flange 1.000 x 2.125 x .6875
(Superseded to 05433300)

$68.99

$

In Stock, only 1 left!

0

34

Gravely 08867500

Chain, No. 40

$39.99

$

Usually ships in 4-12 days

0

35

Gravely 05713600

Ring-Retaining-External .984 x .042

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 08832400

Shaft, Jack

$374.99

$

Usually ships in 4-12 days

0

37

Gravely 06608900

Key, Woodruff .25 x 1

$3.99

$

In Stock, Qty 18

0

38

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 08803200

Guard, V-Belt

$

$

Not available

40

Gravely 08832700

Pulley, Jack Shaft

$

$

Not available

41

Gravely 06430400

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06520300

Nut-Locking-Jam-Nylon .75-10
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

43

Gravely 05932000

Bolt-Hex .25-20 x .63

$1.99

$

In Stock, only 1 left!

0

44

Gravely 08841600

Washer, Flat Notched

$

$

Not available

45

Gravely 06506600

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0
