988071 - Gravely Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler

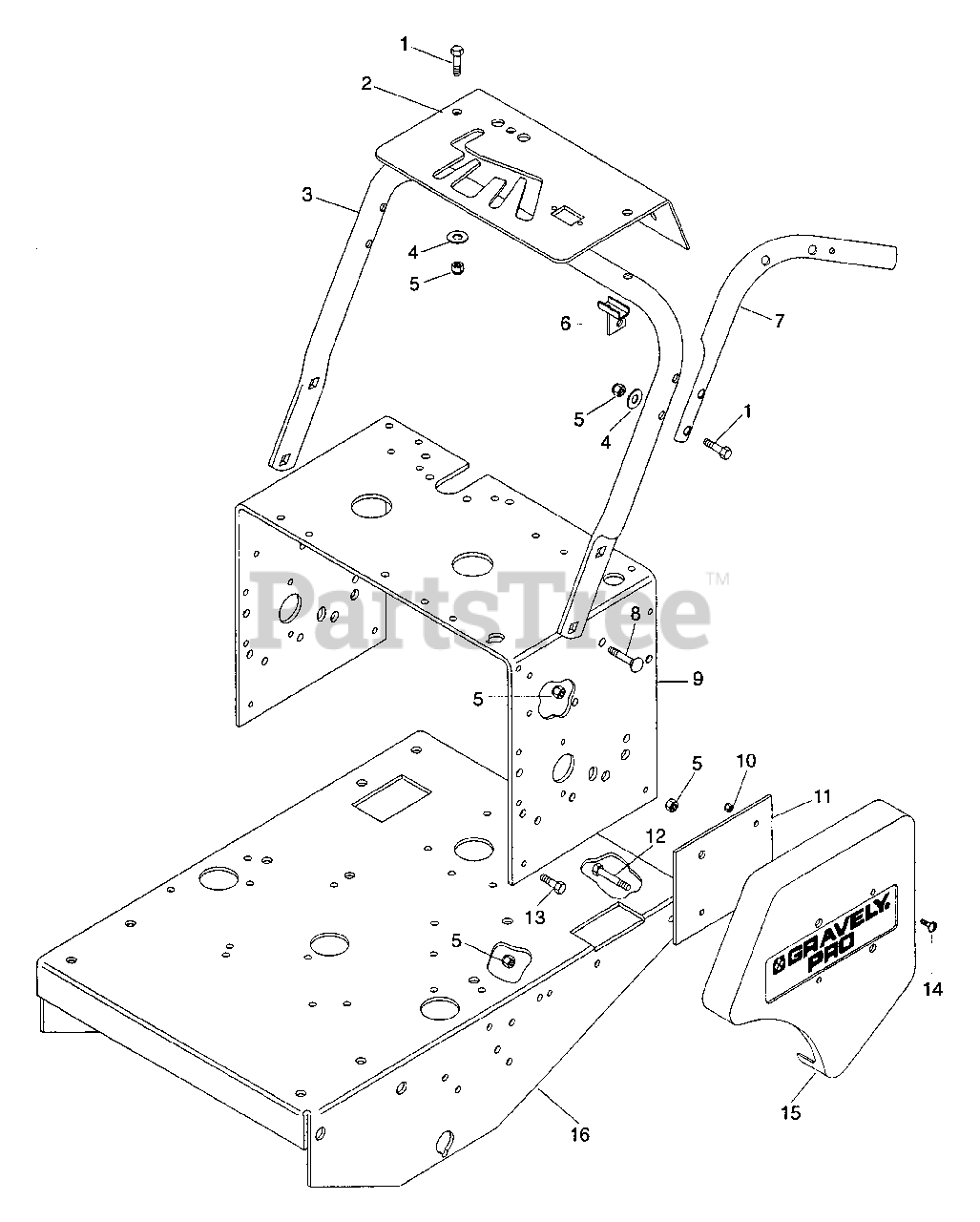

Frame Parts Diagram

  • Title

1

Gravely 05914700

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

2

Gravely 08835500

Panel, Silk Screened

$

$

Not available

3

Gravely 08868500

Tube, Handlebar Mounting

$

$

Not available

4

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 08834500

Weldment, PTO Lever Mounting

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 08847500

Handlebar Left Hand
(Superseded to 08847551)

$

$

Not available

7

Gravely 08847600

Handlebar Right Hand
(Superseded to 08847651)

$

$

Not available

8

Gravely 06201300

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 08832100

Support, Handlebar

$

$

Not available

10

Gravely 06506600

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 08836000

Bracket, Belt Guard Left Hand

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 05934900

Bolt-Hex .38-16 x 1.38

$

$

Not available

13

Gravely 05914500

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06113500

Screw-Machine .25-20

$2.99

$

In Stock, only 3 left!

0

15

Gravely 08868000

Guard, Belt Left Hand

$

$

Not available

15

Gravely 08868100

Guard, Belt Right Hand

$

$

Not available

16

Gravely 08846600

Weldment, Pro Frame
(Superseded to 08866300)

$159.99

$

Usually ships in 4-12 days

0
