988070 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) TRANSMISSION MODEL 700-032 Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler

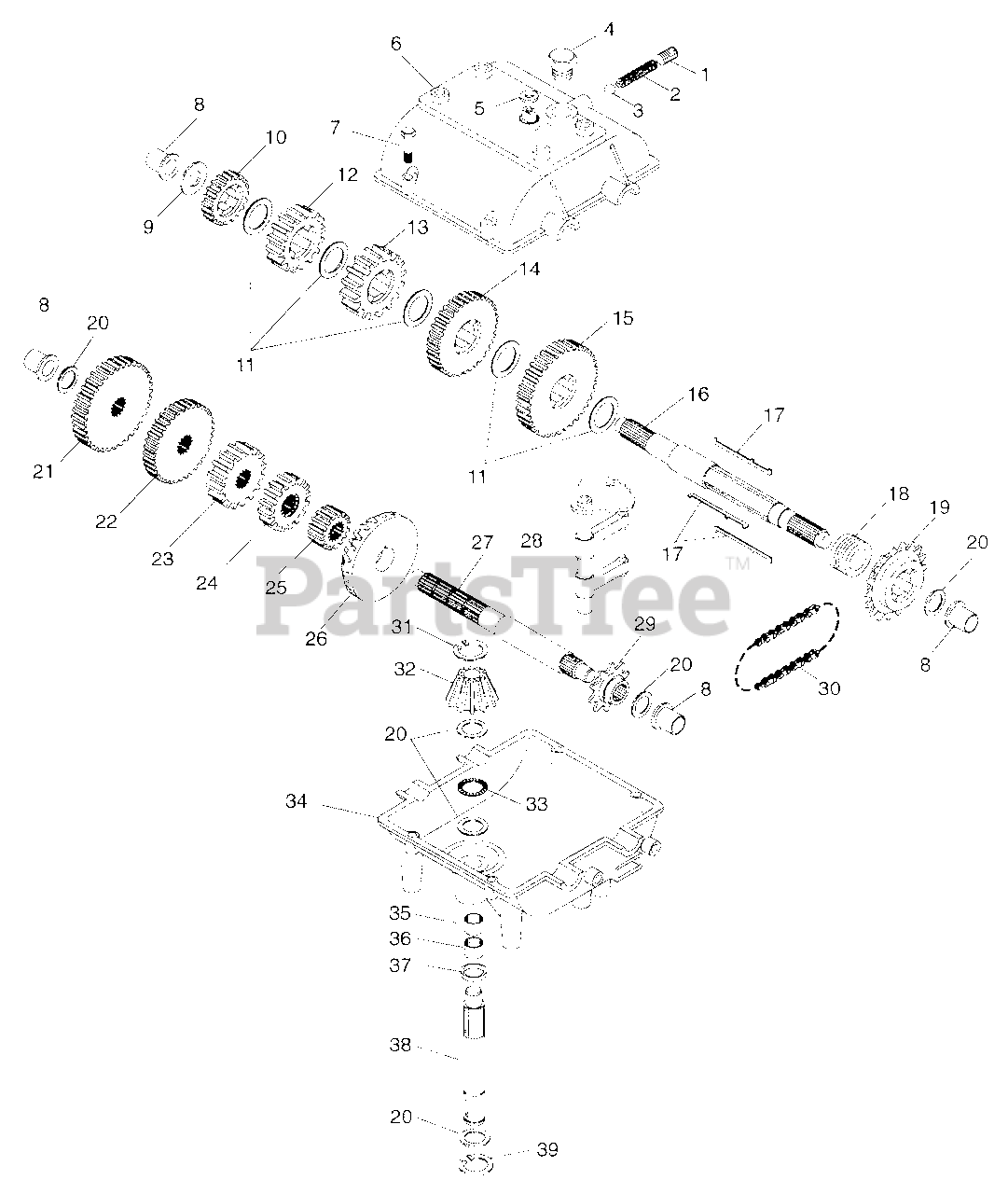

TRANSMISSION MODEL 700-032 Parts Diagram

  • Title
1

Gravely 792078

Screw, Set 3/8-16 x 3/8

$

$

Not available

2

$

$

Not available

3

Gravely 792077

Ball, Steel 5/16

$

$

Not available

4

Gravely 792074

Plug, Threaded

$

$

Not available

5

Gravely 788069

Seal, Square Cut

$

$

Not available

6

Gravely 772083

Cover, Transmission

$

$

Not available

7

Gravely 792073

Screw, HHD Taptite, 1/4-20 x 1.25

$

$

Not available

8

Gravely 780105A

Bushing, Flanged

$

$

Not available

9

Gravely 780139

Washer, Thrust

$

$

Not available

10

Gravely 778250

Gear, Spur(27 Teeth)

Note: (27 Teeth)

$

$

Not available

11

Gravely 780108

Washer, Thrust

$

$

Not available

12

Gravely 778124A

Gear, Spur(30 Teeth)

Note: (30 Teeth)

$

$

Not available

13

Gravely 778239

Gear, Spur(32 Teeth)

Note: (32 Teeth)

$

$

Not available

14

Gravely 778125

Gear, Spur(35 Teeth)

Note: (35 Teeth)

$

$

Not available

15

Gravely 778146A

Gear, Spur(37 Teeth)

Note: (37 Teeth)

$

$

Not available

16

Gravely 776217

Shaft, Output & Brake

$

$

Not available

$

$

Not available

18

Gravely 784266

Collar, Shift

$

$

Not available

19

Gravely 786083

Sprocket(18 Teeth)

Note: (18 Teeth)

$

$

Not available

20

Gravely 780072

Washer, Thrust

$

$

Not available

21

Gravely 778249

Gear, Spur(23 Teeth)

Note: (23 Teeth)

$

$

Not available

22

Gravely 778126A

Gear, Spur(20 Teeth)

Note: (20 Teeth)

$

$

Not available

23

Gravely 778240

Gear, Spur(18 Teeth)

Note: (18 Teeth)

$

$

Not available

24

Gravely 778151

Gear, Spur(15 Teeth)

Note: (15 Teeth)

$

$

Not available

25

Gravely 778145

Gear, Spur(12 Teeth)

Note: (12 Teeth)

$

$

Not available

26

Gravely 778154

Gear, Bevel(42 Teeth)

Note: (42 Teeth)

$

$

Not available

27

Gravely 776134

Shaft, Counter

$

$

Not available

28

Gravely 784267

Rod & Fork Assembly, Shift

$

$

Not available

29

Gravely 786082

Sprocket(9 Teeth)

Note: (9 Teeth)

$

$

Not available

30

Gravely 786081

Chain, Roller(No. 41 Chain, 24 Links)

Note: (No. 41 Chain, 24 Links)

$

$

Not available

31

Gravely 788040

Ring, Retaining

$

$

Not available

32

Gravely 778176

Bevel Pinion, Input

$

$

Not available

33

Gravely 780071

Bearing, Thrust

$

$

Not available

34

Gravely 770061

Case, Transmission

$

$

Not available

35

Gravely 780086

Bearing, Needle

$

$

Not available

36

Gravely 780142

Bearing, Needle

$

$

Not available

37

$

$

Not available

38

Gravely 776135

Shaft, Input

$

$

Not available

39

Gravely 792035

Ring, Retaining

$

$

Not available
