988070 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler

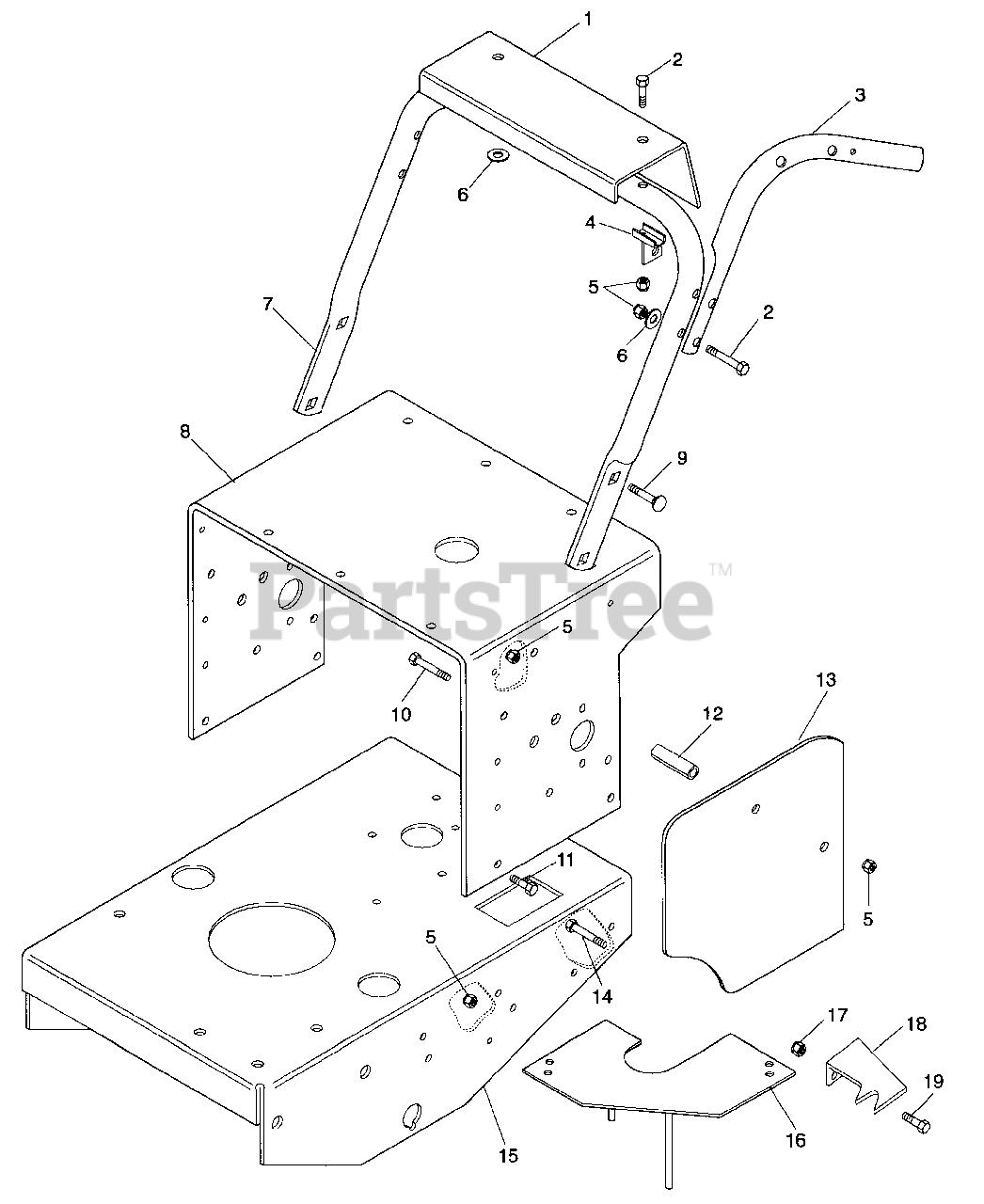

FRAME Parts Diagram

  • Title
1

Gravely 049275

Panel, Silk Screened
(Superseded to 58801300)

$

$

Not available

2

Gravely 180130

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 052622

Handlebar Left Hand
(Superseded to 08847551)

$

$

Not available

Gravely 052623

Handlebar Right Hand
(Superseded to 08847651)

$

$

Not available

4

Gravely 088734

PTO Lever Mounting Bracket
(Superseded to 08873400)

$

$

Not available

5

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 088735

Lower Handlebar, Pro 100
(Superseded to 08873500)

$

$

Not available

8

Gravely 088721

Pro-100 Top Frame
(Superseded to 08872100)

$

$

Not available

9

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

10

Gravely 189304

Bolt-Hex .38-16 x 4.00
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 088753

Bushing, Spacer, 3.25 x 3/8 ID x 5/8 OD
(Superseded to 08875300)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 088737

Guard, Drive Pro-100 Side Cover
(Superseded to 08873700)

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 180125

Bolt-Hex .38-16 x 1.38
(Superseded to 05934900)

$

$

Not available

15

Gravely 088720

Pro-100 Main Frame
(Superseded to 08872000)

$

$

Not available

16

Gravely 088739

Belt Brake Finger-Deck Clutch
(Superseded to 08873900)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 065062

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 088489

Cleaner, Pulley Groove Left Hand
(Superseded to 08848900)

$

$

Not available

Gravely 088490

Cleaner, Pulley Groove Right Hand
(Superseded to 08849000)

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 059321

Bolt-Hex .31-18 x .625
(Superseded to 05901832)

$

$

Not available

Gravely 078749

Decal Set, Pro-150
(Superseded to 07874900)

$

$

Not available

077112

Decal Warning Foreign(Euro Models Only)

Note: (Euro Models Only)

$

$

Not available
