988068 - Gravely Pro 250 Walk-Behind Mower Power Unit, 14hp Kawasaki OHV, Recoil (SN: 000101 & Above) FRAME Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 14hp Kawasaki OHV, Recoil

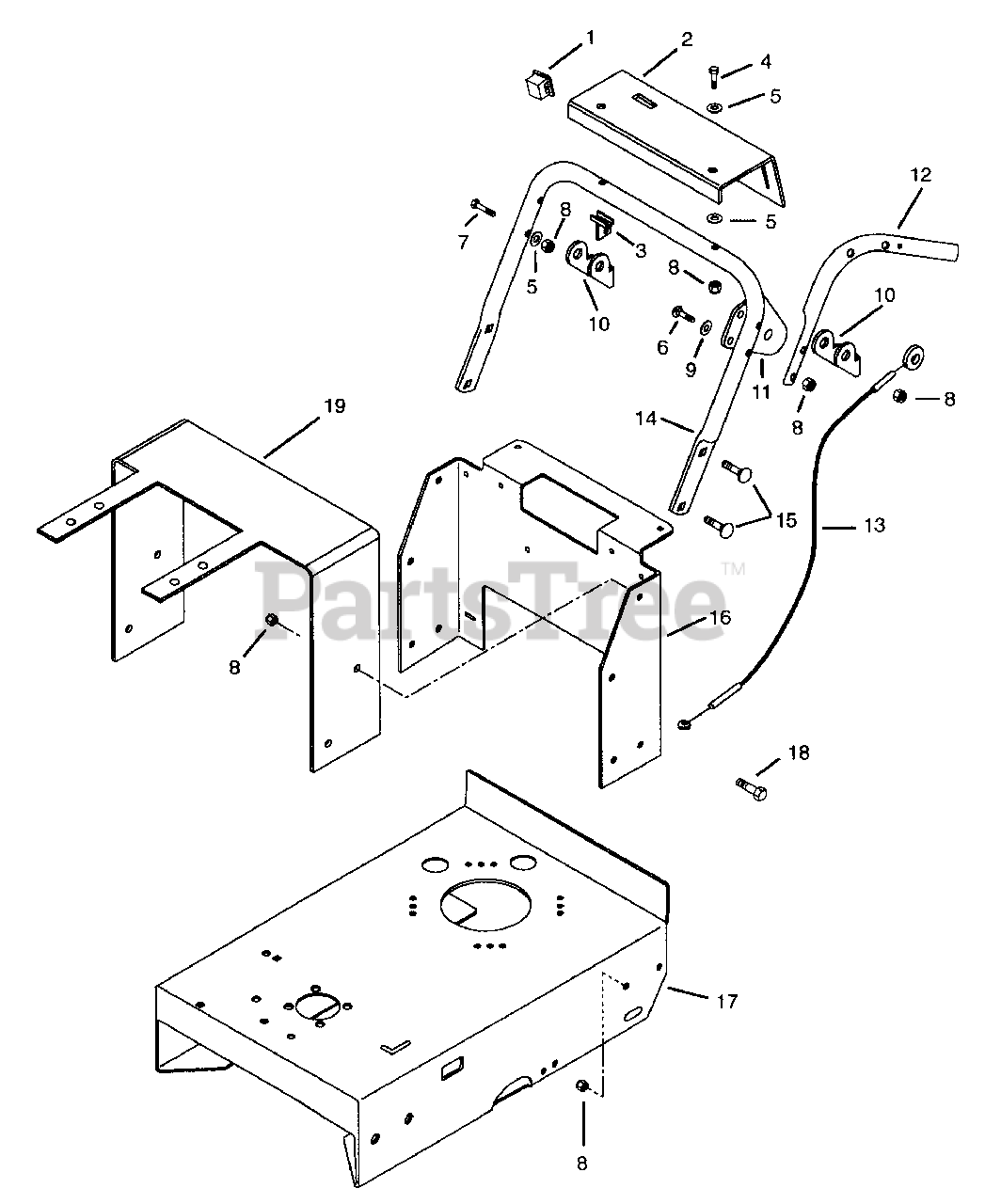

FRAME Parts Diagram

  • Title
1

Gravely 09003300

Switch, Blank

Note: (Used Only On Model(s): 068).

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 08893500

Panel, Instrument

$

$

Not available

3

Gravely 08844100

Weldment, PTO Lever Mounting

Note: (Used Only On Model(s): 068).

$

$

Not available

4

Gravely 05914700

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

5

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06205000

Bolt-Round Head Square Neck .38-16 x 2.25

$

$

Not available

7

Gravely 05924300

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06513500

Nut-Locking-Nylon .575-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06414500

Washer-Flat-Steel .390 x .750 x .125
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

10

Gravely 08891100

Bracket, Handlebar Cable

$

$

Not available

11

Gravely 08888900

Speed Control Plate

$

$

Not available

12

Gravely 08847500

Handlebar Left Hand
(Superseded to 08847551)

$

$

Not available

Gravely 08847600

Handlebar Right Hand
(Superseded to 08847651)

$

$

Not available

13

Gravely 06928400

Cable, Hand Control, Transmission Left Hand

$

$

Not available

Gravely 06931200

Cable, Hand Control, Transmission Right Hand

$

$

Not available

14

Gravely 08868500

Tube, Handlebar Mounting

$

$

Not available

15

Gravely 06201300

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 08886800

Rear Frame

$

$

Not available

17

Gravely 08886600

Main Frame

$

$

Not available

18

Gravely 05914500

Bolt-Hex .38-16 x 1.00
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 08894000

Bracket, Oil Cooler

$

$

Not available
