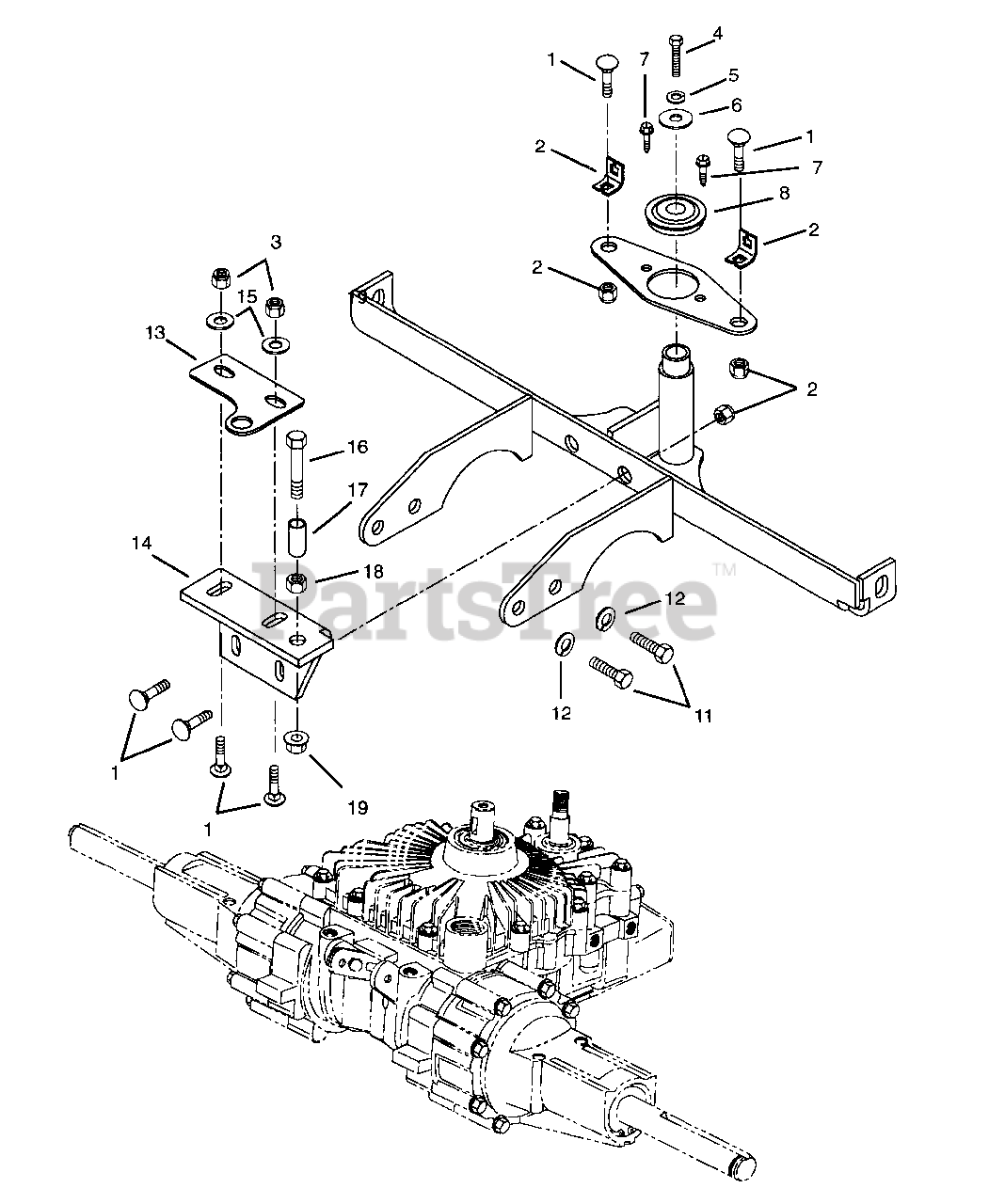

988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) TORQUE MOUNT Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

TORQUE MOUNT Parts Diagram

  • Title

1

Gravely 06204100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 08887600

Bracket, Lower Cable

$

$

Not available

3

Gravely 06506200

Nut-Locking-Nylon .312-18
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 07401400

Screw-Tapping .312-18 x .50
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06300300

Washer-Lock .312 x .097
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07401500

Screw-Tapping .250-20 x .37
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05417600

Bearing-Ball .625 x 1.382 x .50
(Superseded to 05417500)

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 08886700

Lever, Cable Swing

$

$

Not available

10

Gravely 08887500

Weldment, Transmission Torque Mount

$

$

Not available

11

Gravely 05913500

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 08888800

Plate, Neutral Switch

$

$

Not available

14

Gravely 08888700

Bracket, Neutral Switch

$

$

Not available

15

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05915200

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05958400)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 08892400

Spacer, Steering Cable

$

$

Not available

18

Gravely 06501800

Nut-Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0
