988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

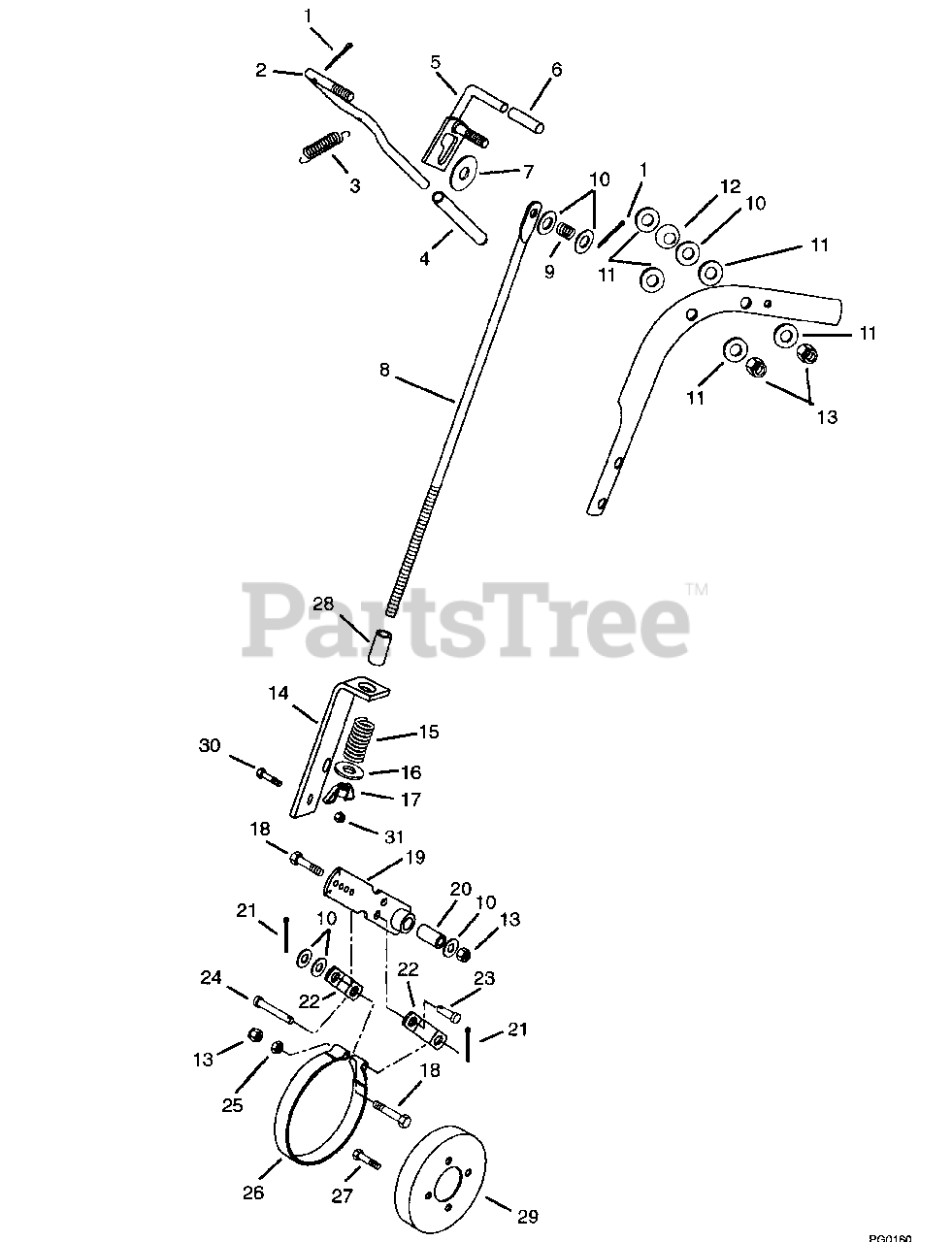

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 06700100

Pin-Cotter .09 x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

2

Gravely 08847700

Lever, Hand Control
(Superseded to 04905200)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 08339300

Spring-Tension .041 x .500 x 1.750

$5.99

$

In Stock, only 1 left!

0

4

Gravely 07528300

Grip, Hand Clutch Lever

$3.99

$

In Stock, only 2 left!

0

5

Gravely 08890100

Weldment, Neutral Lock Lever

$

$

Not available

6

Gravely 07503800

Tip-Brake Lock Lever

$1.49

$

In Stock, only 4 left!

0

7

Gravely 06430900

Washer-Flat-Steel .438 x 1.375 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 08887300

Rod, Brake Pull

$

$

Not available

9

Gravely 08338800

Spring-Compression .045 x .600 x .750

$6.99

$

In Stock, only 2 left!

0

10

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06433600

Washer-Flat-Nylon .375 x .75 x .125

$0.99

$

In Stock, Qty 11

0

12

Gravely 06433000

Washer-Spring .375

$

$

Not available

13

Gravely 06513500

Nut-Locking-Nylon .375-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 08887400

Bracket, Brake Pull

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 08329600

Spring-Compression .072 x .561 x 2.50

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07017600

Nut-Wing .31-18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

18

Gravely 05914700

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 08891500

Weldment, Brake Arm PRO-250

$

$

Not available

20

Gravely 08833400

Bushing, Sleeve .391 x .622 x .950

$5.99

$

In Stock, only 1 left!

0

21

Gravely 06702400

Pin-Cotter .12 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

22

Gravely 08831900

Link, Brake Arm
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

23

Gravely 06809600

Pin-Clevis .38 x .594
(Superseded to 06814800)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 06809200

Pin-Clevis .372 x 1.25
(Superseded to 06814900)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 06501800

Nut-Hex .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 08880600

Assembly, Brake Band

$58.99

$

In Stock, only 2 left!

0

27

Gravely 05914000

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

28

Gravely 08891700

Bushing .327 x .411 x 4.00
(Superseded to 08841700)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 08863900

Drum, Brake

$45.99

$

In Stock, Qty 5

0

30

Gravely 05908200

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06506600

Nut-Locking- Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0
