988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) FUEL SYSTEM Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

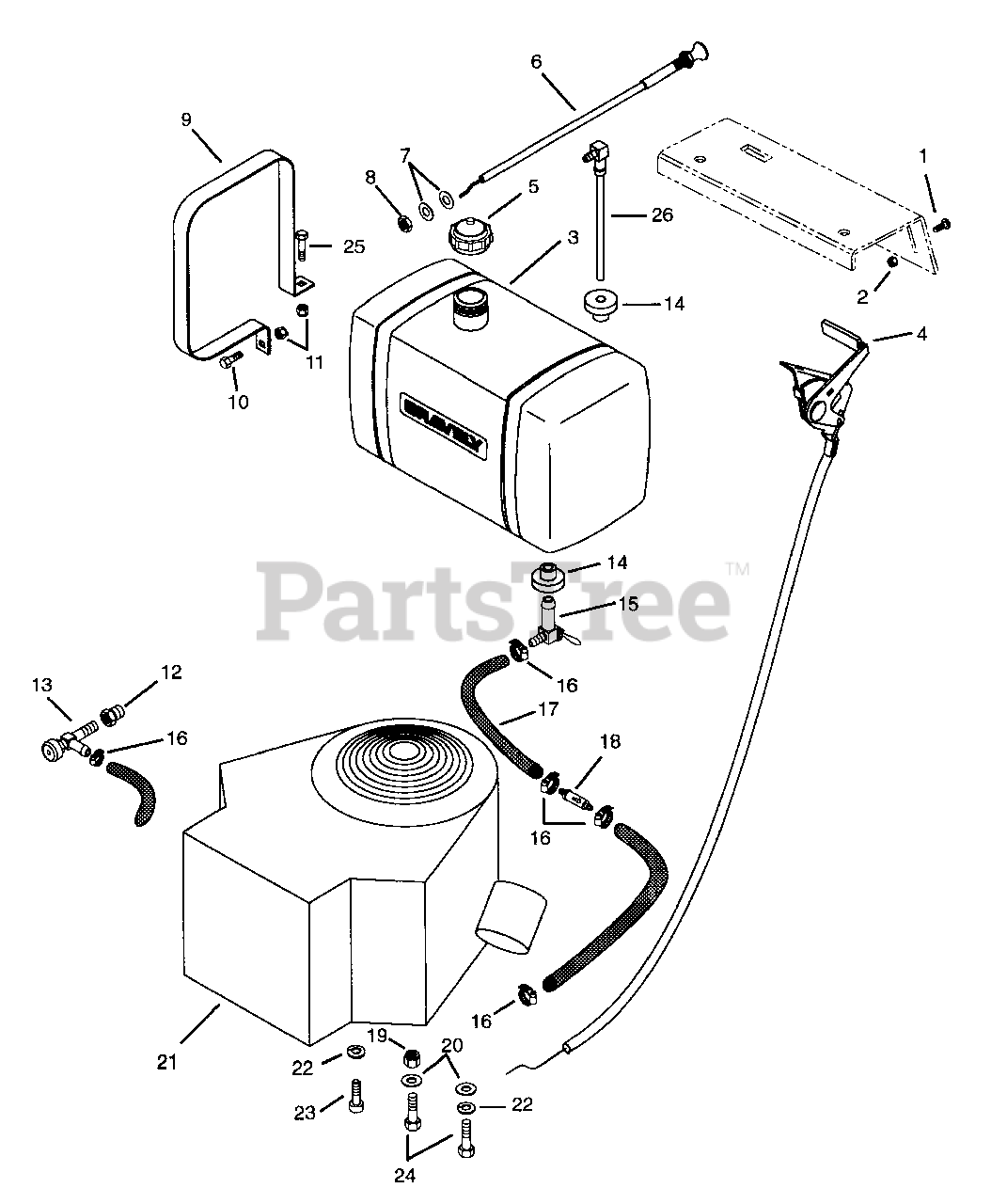

FUEL SYSTEM Parts Diagram

  • Title

1

Gravely 06113300

Screw-Machine 10-32 x .50

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 06502800

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 08867900

Tank, Fuel Gravely PRO

$164.99

$

Usually ships in 4-12 days

0

Gravely 08893300

Fuel Tank

Note: (Used Only On Model(s): 066,067).

$

$

Not available

4

Gravely 08873100

Assembly, Throttle Control
(Superseded to 06943600)

Note: (Used Only On Model(s): 068).

$52.99

$

Usually ships in 4-12 days

0

Gravely 06925700

Assembly, Throttle Control
(Superseded to 06941000)

Note: (Used Only On Model(s): 066,067).

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 07533400

Cap, Fuel Tank

$22.99

$

In Stock, only 1 left!

0

6

Gravely 06924800

Control, Choke

Note: (Used Only On Model(s): 066,067).

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06518800

Nut-Jam .375-24
(Superseded to 06534700)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 08887200

Strap, Fuel Tank

$

$

Not available

10

Gravely 05932000

Bolt-Hex .25-20 x .63

$1.99

$

In Stock, only 1 left!

0

11

Gravely 06506600

Nut-Locking-Nylon .250-20
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 03493100

Adapter, Oil Drain

Note: (Used Only On Model(s): 066,067).

$5.99

$

Usually ships in 4-12 days

0

Gravely 08757700

Adapter, Oil Drain

Note: (Used Only On Model(s): 068).

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 03493200

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

14

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

15

Gravely 08835100

Valve, Ball Shut Off

Note: (Used Only On Model(s): 068).

$

$

Not available

16

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 00924300

Gas Line
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08811700

Filter, Fuel

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06506200

Nut-Locking-Nylon .312-18
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

Note: (Used Only On Model(s): 066,067).

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08232600

Engine, 16 H.P. Briggs & Stratton

Note: (Used Only On Model(s): 066).

$

$

Not available

Gravely 08242200

Engine, 18 H.P. Kohler

Note: (Used Only On Model(s): 067).

$

$

Not available

Gravely 08237500

Engine, 14 H.P. Kawasaki OHV

Note: (Used Only On Model(s): 068).

$

$

Not available

22

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05941500

Bolt-Hex M8 x 1.25 x 30mm
(Superseded to 05968200)

Note: (Used Only On Model(s): 068).

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 05914000

Bolt-Hex .31-18 x 1.50
(Superseded to 05952400)

Note: (Used Only On Model(s): 066,067).

$1.49

$

In Stock, Qty 12

0

25

Gravely 05908300

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

26

Gravely 08893600

Fitting, Tank

Note: (Used Only On Model(s): 066,067).

$20.99

$

Usually ships in 4-12 days

0
