988060 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

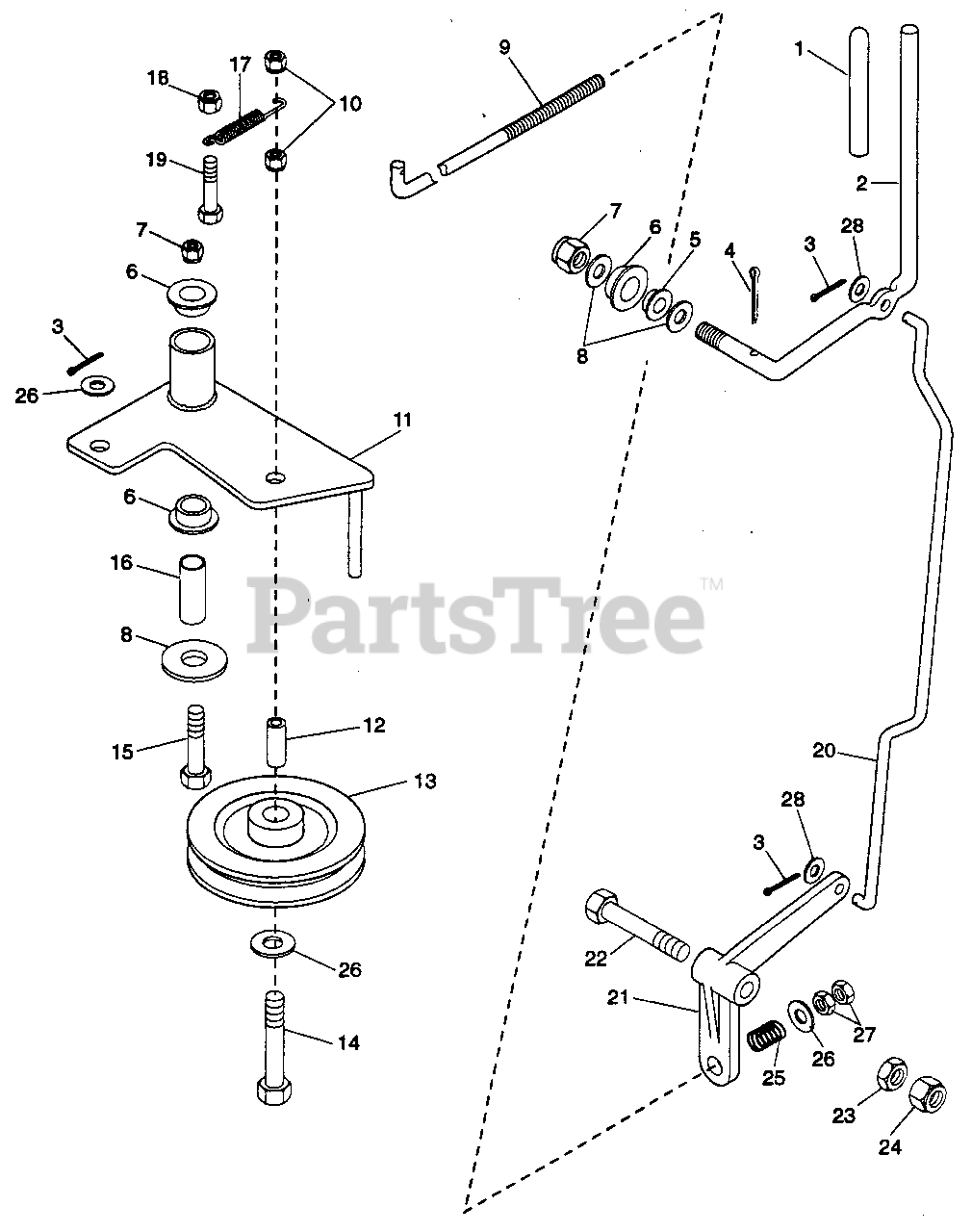

PTO CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 043196

GRIP, PTO LEVER
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 049291

LVR, PTO ACTUATING
(Superseded to 08878400)

$

$

Not available

3

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

4

Gravely 137253

PIN-COTR .188 X 1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 034738

BUSH., F .515 X 1.00 X .745 NY
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48 NY
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 415543

WSHR-FL-STL .531 X 1.250 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

9

Gravely 088730

PTO LINK ROD, PRO-150
(Superseded to 08873000)

$38.99

$

Usually ships in 4-12 days

0

10

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 088723

DECLUTCH ARM-PRO PTO
(Superseded to 08872300)

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 088741

SPACER .391 ID X .62 OD X 1.0
(Superseded to 08874100)

$

$

Not available

13

Gravely 052062

IDLER - PLY
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

14

Gravely 059208

BLT-HEX .38-16 X 3.50 PL GR 5
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

15

Gravely 059167

BLT-HEX .50-13 X 3.50 PL GR 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 088724

BUSHING FOR DECLUTCH ARM PIVOT
(Superseded to 08872400)

$

$

Not available

17

Gravely 083295

SG-TENS .095 X .85 X 4.38 WLD 25
(Superseded to 08329500)

$14.99

$

In Stock, only 2 left!

0

18

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 059134

BLT-HEX .31-18 X 1.25 PL GR 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

20

Gravely 088733

PTO LEVER LINK ROD, PRO 150
(Superseded to 08873300)

$

$

Not available

21

Gravely 049271

LVR, PTO CLUTCH
(Superseded to 08834400)

$

$

Not available

22

Gravely 180185

BLT-HEX .50-13 X 2.50 PL GR 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 120378

NUT .50-13 PL
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 414074

NUT-LK .50-13 HEX TYPE N
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 011779

SG-COMP .125 X .78 X 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120377

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 064123

WSHR-FL-STL .344 X .688 X .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
