988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

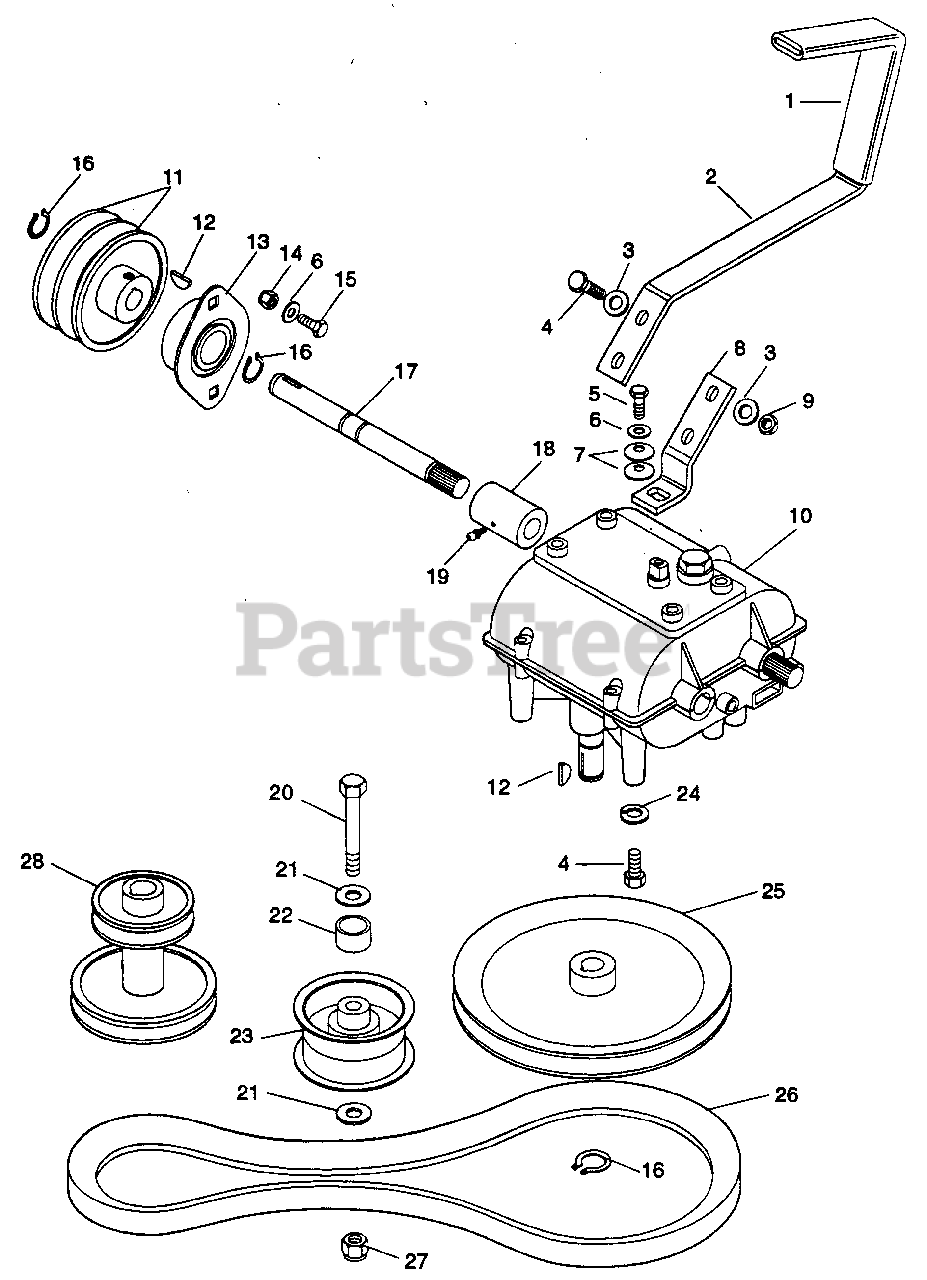

GEAR SELECTOR Parts Diagram

  • Title

1

Gravely 045550

GRIP
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

2

Gravely 048997

LVR, TRANS SHIFT
(Superseded to 08830500)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 120393

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 050986

BLT-HEX .25-28 X .75 HEX PL GR 8
(Superseded to 05970000)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 064127

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 050950

WSHR, BELLEVILLE
(Superseded to 06435000)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 048996

ARM, TRANS SHIFT
(Superseded to 04900300)

$47.99

$

In Stock, only 1 left!

0

9

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 049011

TRANS, 5-SPEED PRO 32
(Superseded to 58803400)

$

$

Not available

11

Gravely 088725

DRIVE SHEAVE(UPPER) - PRO-150
(Superseded to 58804900)

Note: (UPPER) - PRO-150

$297.99

$

In Stock, only 1 left!

0

12

Gravely 124549

KEY, WDRF .19 X .75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 049277

BRG-FLG .625 X 1.875 X .797
(Superseded to 05426400)

$62.99

$

In Stock, Qty 8

0

14

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 015338

RG-RTNG-EXT .579 X .93
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 088805

HALF SHAFT, TRANS, PRO-150
(Superseded to 08880500)

$51.99

$

Usually ships in 4-12 days

0

18

Gravely 049013

COUPLER, TRANS SHAFT
(Superseded to 08870100)

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 411027

FTG-LUBE .25-28 X .256
(Superseded to 07012600)

$

$

Not available

20

Gravely 180132

BLT-HEX .38-16 X 2.25 GR 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 049708

SPCR, .625 X .385 X .55
(Superseded to 08828000)

$

$

Not available

23

Gravely 052062

IDLER-PLY
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

24

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 048995

PLY-V 7.50 X .626
(Superseded to 07316900)

$

$

Not available

26

Gravely 049270

V-BELT A-RMA 14.9 X 33/64
(Superseded to 07222700)

$29.99

$

In Stock, only 1 left!

0

27

Gravely 056004

NUT-LK-NYL .375-16 PL

$

$

Not available

28

Gravely 088722

CRANK SHEAVE-PRO
(Superseded to 08872200)

$79.99

$

In Stock, only 1 left!

0
