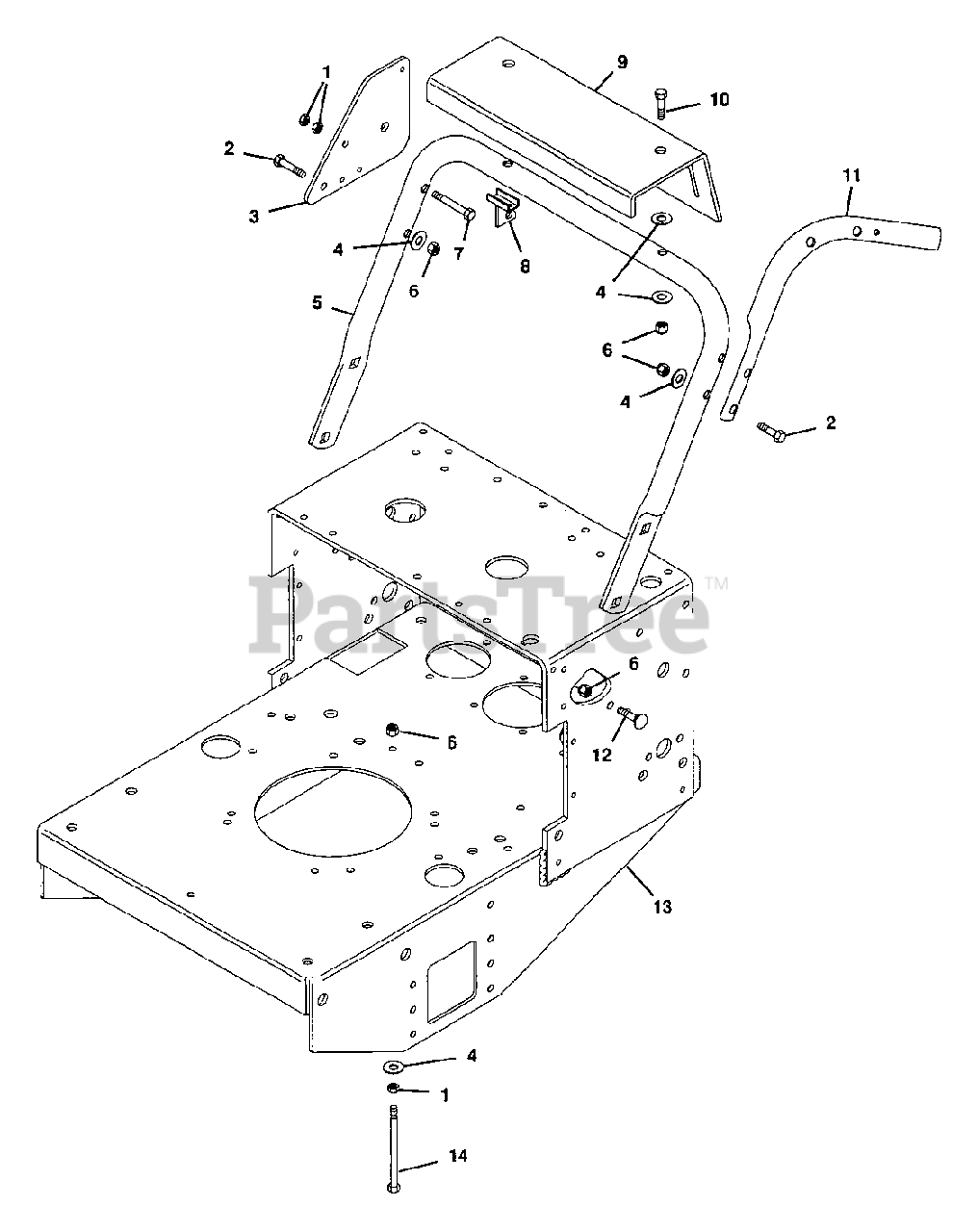

988058 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

Frame Parts Diagram

  • Title

1

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

3

51126

Plate, Speed Control Lever

$

$

Not available

4

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

49032

Tube, Handlebar Mounting

$

$

Not available

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 180134

Bolt, Hex 3/8-16x2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

8

51133

Weldment, PTO Lever Mounting

$

$

Not available

9

51148

Panel, Silk Screened

$

$

Not available

10

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

11

49008

Handlebar, L.H.

$

$

Not available

11

49009

Handlebar, R.H.

$

$

Not available

12

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

13

51104

Weldment, Frame

$

$

Not available

14

Gravely 191163

Bolt, Hex 3/8-16x4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0
