988052 - Gravely Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton

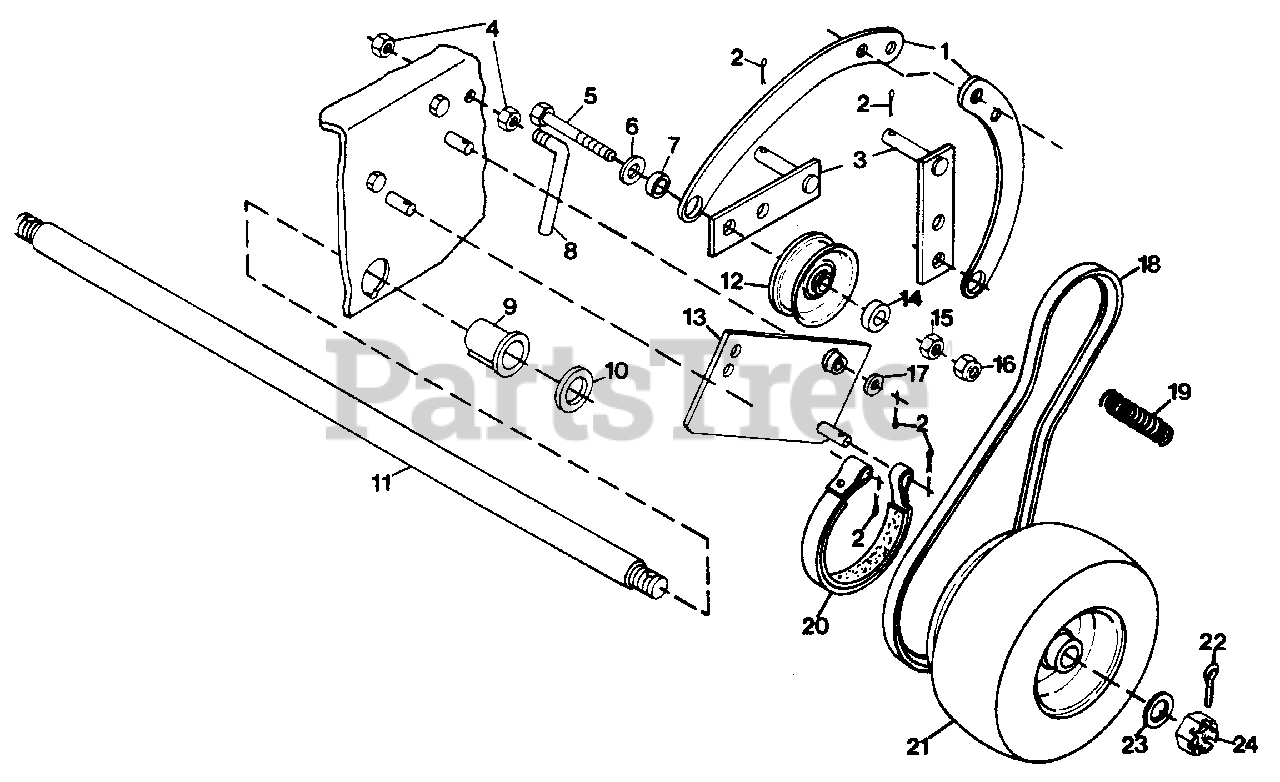

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 042979

STRAP, WHEEL CLUTCH
(Superseded to 08820000)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

3

Gravely 042977

WELDMENT, WHEEL CLUTCH L.H.
(Superseded to 08819800)

$30.99

$

Usually ships in 4-12 days

0

4

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

5

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 042989

BUSHING, WHEEL CLUTCH
(Superseded to 05526700)

$

$

Not available

8

Gravely 041355

ROD, PULLEY CLEANING
(Superseded to 08876300)

$

$

Not available

9

Gravely 044120

BUSHING, PRO AXLE
(Superseded to 05518300)

$

$

Not available

10

Gravely 041686

SPACER, WHEEL
(Superseded to 06425600)

$5.99

$

In Stock, only 2 left!

0

11

Gravely 041317

SHAFT, AXLE
(Superseded to 08813300)

$

$

Not available

11

Gravely 043950

SHAFT, AXLE (PRO-32)
(Superseded to 21267200)

Note: (PRO-32)

$

$

Not available

12

Gravely 027824

SHEAVE, IDLER
(Superseded to 07317100)

$

$

Not available

13

Gravely 044342

WELDMENT, BRAKE LEVER L.H.
(Superseded to 08824000)

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 044343

WELDMENT, BRAKE LEVER R.H.
(Superseded to 08824100)

$

$

Not available

14

Gravely 014672

SPACER, IDLER
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

15

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 041599

BELT, TRACTION
(Superseded to 07220700)

$131.99

$

Usually ships in 4-12 days

0

19

Gravely 047314

SPRING, CLUTCH IDLER
(Superseded to 08343000)

$14.99

$

In Stock, only 1 left!

0

20

Gravely 034306

ASSEMBLY, BRAKE BAND L.H.
(Superseded to 08802800)

$90.99

$

Usually ships in 4-12 days

0

20

Gravely 034307

ASSEMBLY, BRAKE BAND R.H.
(Superseded to 08802900)

$77.99

$

Usually ships in 4-12 days

0

21

Gravely 042270

ASSEMBLY, PRO WHEEL AND TIRE
(Superseded to 07129800)

$

$

Not available

21

Gravely 041151

WHEEL, 13X5.00-6(PRO-32)
(Superseded to 07129700)

Note: (PRO-32)

$

$

Not available

22

Gravely 137228

PIN, COTTER .156X1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

23

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 427640

NUT, SLOTTED 3/4-16
(Superseded to 06538700)

$5.99

$

Usually ships in 4-12 days

0
