988052 - Gravely Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton (SN: 000101 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton

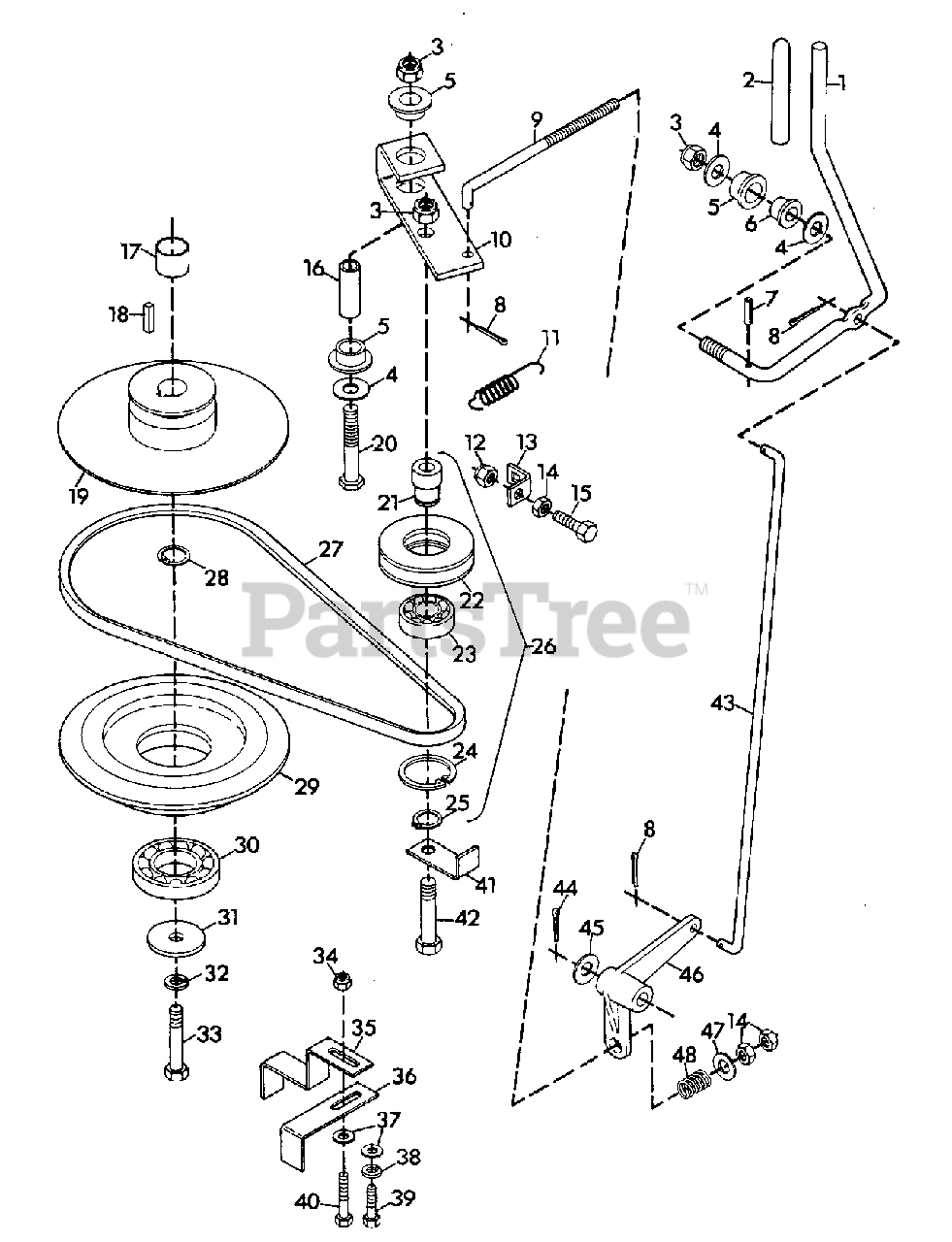

PTO CLUTCH LINKAGE Parts Diagram

  • Title
1

Gravely 042985

LEVER, PTO ACTUATING
(Superseded to 08877300)

$

$

Not available

2

Gravely 043196

GRIP, PTO LEVER
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

5

Gravely 010174

BUSHING, NYLON .76X1X.6 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 034738

BUSHING, .513X.750X.625
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 421202

PIN, SPRING .187X1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

9

Gravely 041334

ROD, PTO CLUTCH ACTUATING
(Superseded to 08876200)

$200.99

$

In Stock, only 1 left!

0

10

Gravely 041370

ARM, IDLER PIVOT
(Superseded to 08846200)

$

$

Not available

11

Gravely 034385

SPRING, PTO RETURN
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

14

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

16

Gravely 041992

SPACER
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

17

Gravely 042540

SPACER, MANUAL START
(Superseded to 08839000)

$

$

Not available

18

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 041839

HUB, PTO AND DRIVE CLUTCH
(Superseded to 08814600)

$543.99

$

In Stock, only 1 left!

0

20

Gravely 041333

BOLT, HEX 1/2-13X2.75 SPECIAL
(Superseded to 08813700)

$

$

Not available

21

Gravely 039327

BUSHING
(Superseded to 08810700)

$102.99

$

Usually ships in 4-12 days

0

22

Gravely 038896

SHEAVE, IDLER
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

23

Gravely 038898

BEARING, BALL
(Superseded to 05425100)

$

$

Not available

24

Gravely 018960

RING, RETAINING
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 039331

RING, RETAINING
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

26

Gravely 039336

ASSEMBLY, IDLER SHEAVE
(Superseded to 08810900)

$262.99

$

Usually ships in 4-12 days

0

27

Gravely 043213

V-BELT, PTO CLUTCH
(Superseded to 07225000)

$35.99

$

In Stock, only 1 left!

0

28

Gravely 031624

RING, RETAINING
(Superseded to 05717200)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 041353

SHEAVE, MOWER CLUTCH
(Superseded to 08814000)

$339.99

$

Usually ships in 4-12 days

0

30

Gravely 035330

BEARING, BALL 1.574X3.149X.708
(Superseded to 05420900)

$193.99

$

In Stock, only 3 left!

0

31

Gravely 044379

WASHER, SPECIAL
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

32

Gravely 120383

WASHER, LOCK 7/16 REG.
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

33

UNKNOWN

UNKNOWN

$

$

Not available

34

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 043194

GUIDE, PTO V-BELT
(Superseded to 08821100)

$

$

Not available

36

Gravely 034309

GUIDE, V-BELT
(Superseded to 08803000)

$

$

Not available

37

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

38

UNKNOWN

UNKNOWN

$

$

Not available

39

UNKNOWN

UNKNOWN

$

$

Not available

40

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

41

Gravely 039330

GUIDE, BELT
(Superseded to 08810800)

$

$

Not available

42

Gravely 180185

BOLT, HEX 1/2-13X2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

43

Gravely 042988

ROD, PTO CONTROL
(Superseded to 08820400)

$

$

Not available

44

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

45

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 041838

LEVER, PTO CLUTCH
(Superseded to 08814500)

$

$

Not available

47

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0
