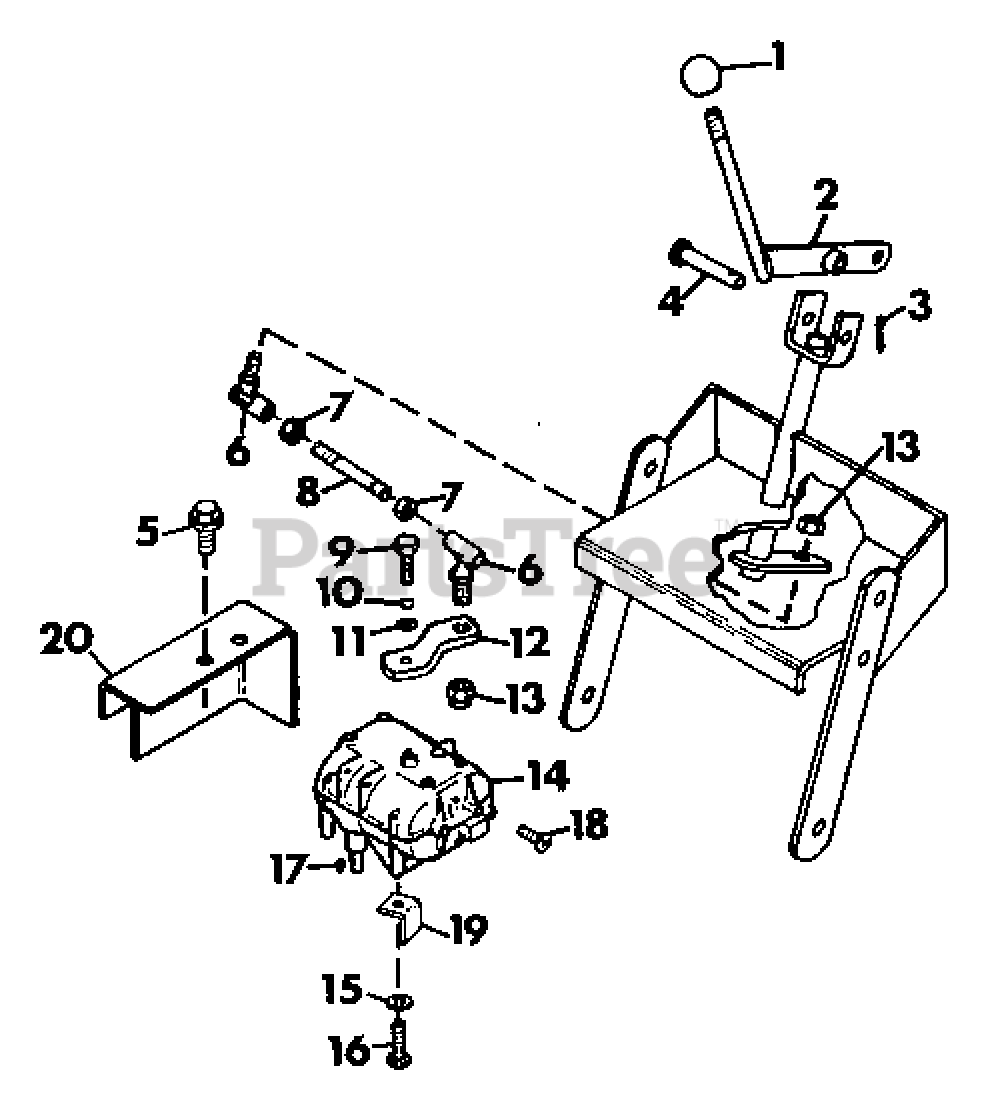

988050 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) Transmission Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

Transmission Parts Diagram

  • Title

1

11261

Knob, Control

$

$

Not available

2

34410

Weldment, Shift Lever

$

$

Not available

3

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

4

34632

Pin, Clevis

$

$

Not available

5

34357

Bolt, Self-Tapping 5/16-18x.62

$

$

Not available

6

32352

Ball Joint, Disconnecting

$

$

Not available

7

Gravely 120367

Nut, Hex 1/4-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

8

34635

Rod, Trans. Shifter

$

$

Not available

9

Gravely 181561

Bolt, Hex 1/4-28x.50
(Superseded to 05936600)

$

$

Not available

10

Gravely 120380

Washer, Lock 1/4
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 422845

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

34418

Arm, Trans. Shift

$

$

Not available

13

Gravely 416430

Nut, Lock 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

14

40544

Transmission, 5-Speed

$

$

Not available

15

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 124549

Key, Woodruff .187x.750 Hard
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 167260

Screw, Tapping 1/4-20x.625 PHD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

19

34329

Guide, V-Belt

$

$

Not available

20

34891

Guard, Transmission Chain

$

$

Not available
