988050 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

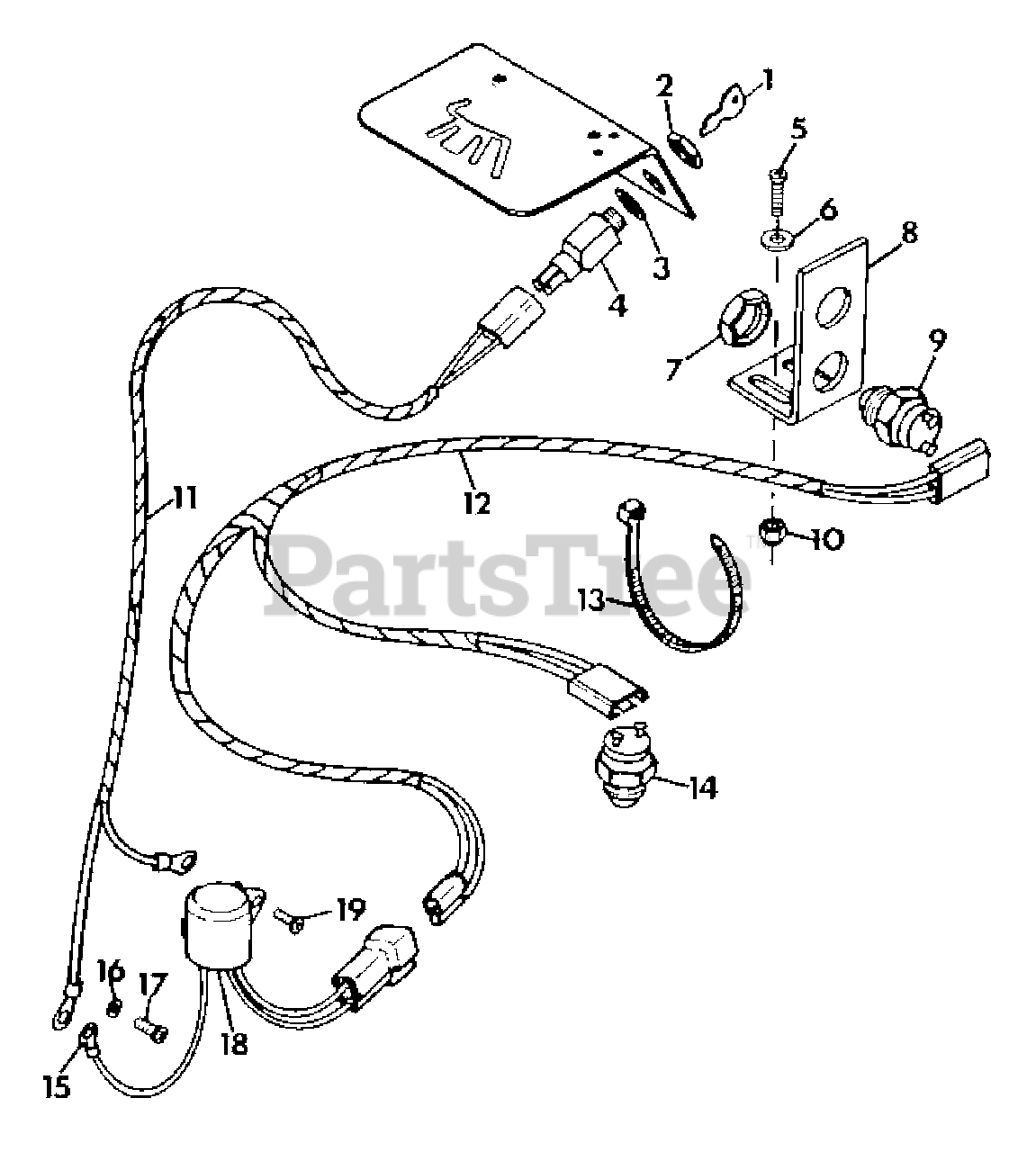

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

18570

Key, Ignition Switch

$

$

Not available

2

18585

Nut, Jam 5/8-32

$

$

Not available

3

18586

Washer, Lock 5/8 Int. Tooth

$

$

Not available

4

30202

Switch

$

$

Not available

5

Gravely 159947

Screw, Machine 10-24x.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 131015

Washer, Flat .188x.438x.049
(Superseded to 06409200)

$

$

Not available

7

Gravely 107354

Nut, Stamped 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

8

34637

Bracket, Interlock Switch

$

$

Not available

9

20916

Switch, Interlock

$

$

Not available

10

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

34638

Harness, Wiring Switch

$

$

Not available

12

34639

Harness, Wiring Interlock

$

$

Not available

13

10629

Tie, Cable

$

$

Not available

14

34640

Switch, Neutral Start

$

$

Not available

15

36932

Terminal, Connector Clip Type

Note: Item pertains only to Honda engine units.

$

$

Not available

16

Gravely 120217

Washer, Lock No. 10
(Superseded to 21049900)

Note: Item pertains only to Honda engine units.

$

$

Not available

17

Gravely 160046

Screw, Machine 10-32x.50 PHD
(Superseded to 06113300)

Note: Item pertains only to Honda engine units.

$2.49

$

Usually ships in 4-12 days

0

18

30204

Control Module

$

$

Not available

19

Gravely 448423

Screw, Tapping 10-24x.50 HHD SF
(Superseded to 07410700)

$

$

Not available
