988045 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

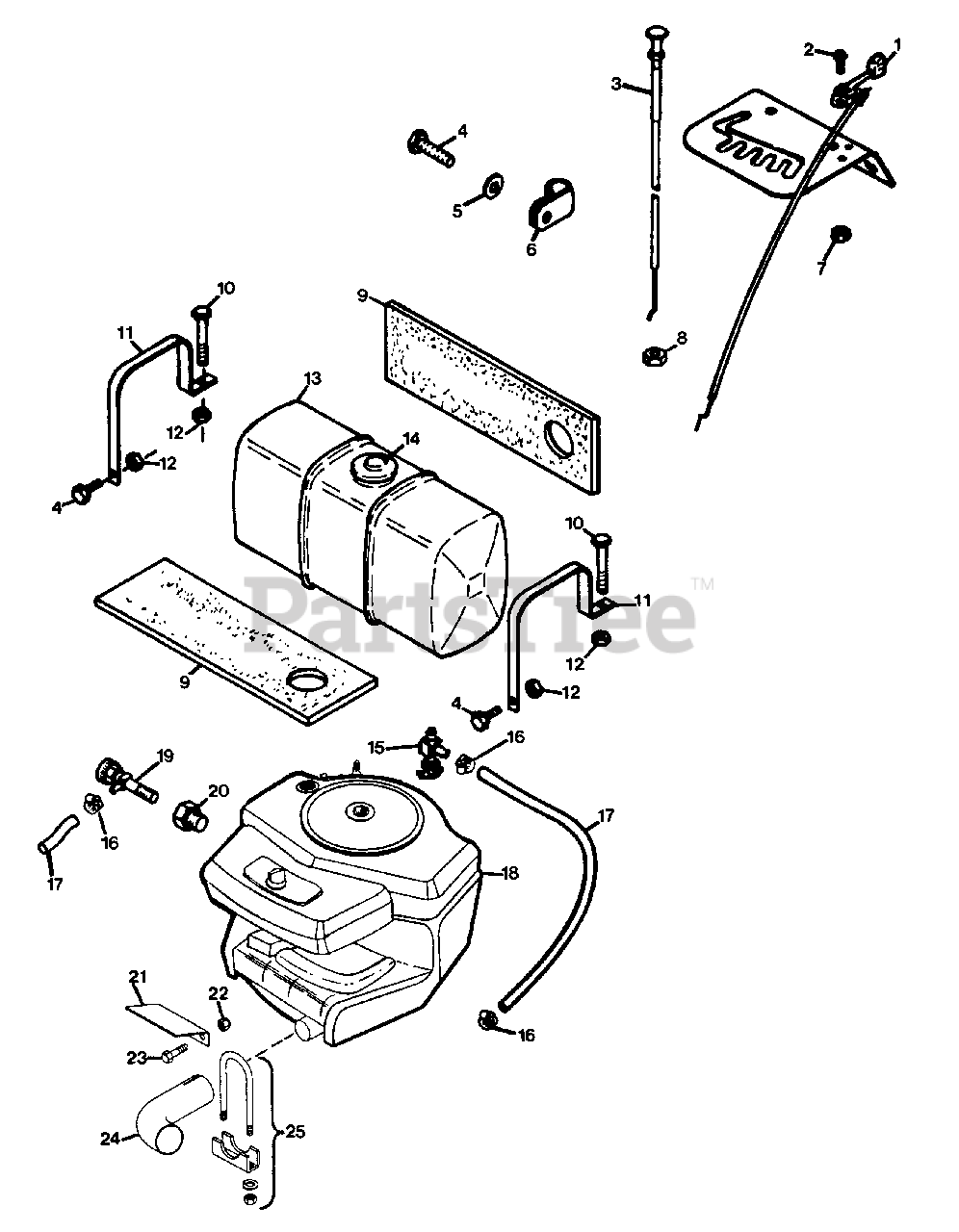

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 044621

LEVER, CONTROL
(Superseded to 20810700)

$

$

Not available

2

Gravely 159920

SCREW, MACH. 10-24X.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

3

Gravely 035137

CONTROL, CHOKE
(Superseded to 06924800)

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

5

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 027122

CLAMP
(Superseded to 06907200)

$

$

Not available

7

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 124925

NUT, JAM 3/8-24 HEX
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 048815

FITTING, TANK
(Superseded to 21287700)

$

$

Not available

10

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 048855

STRAP, FUEL TANK
(Superseded to 21287800)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 047681

TANK, FUEL
(Superseded to 20865200)

$

$

Not available

14

Gravely 048856

CAP, GAS TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

15

Gravely 047613

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 045522

ENGINE, 16 HP B&S

$

$

Not available

19

Gravely 035329

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

20

Gravely 035328

ADAPTOR, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 044932

DEFLECTOR, EXHAUST
(Superseded to 08763500)

$

$

Not available

22

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

UNKNOWN

UNKNOWN

$

$

Not available

25

UNKNOWN

UNKNOWN

$

$

Not available
