988039 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) General Assembly Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

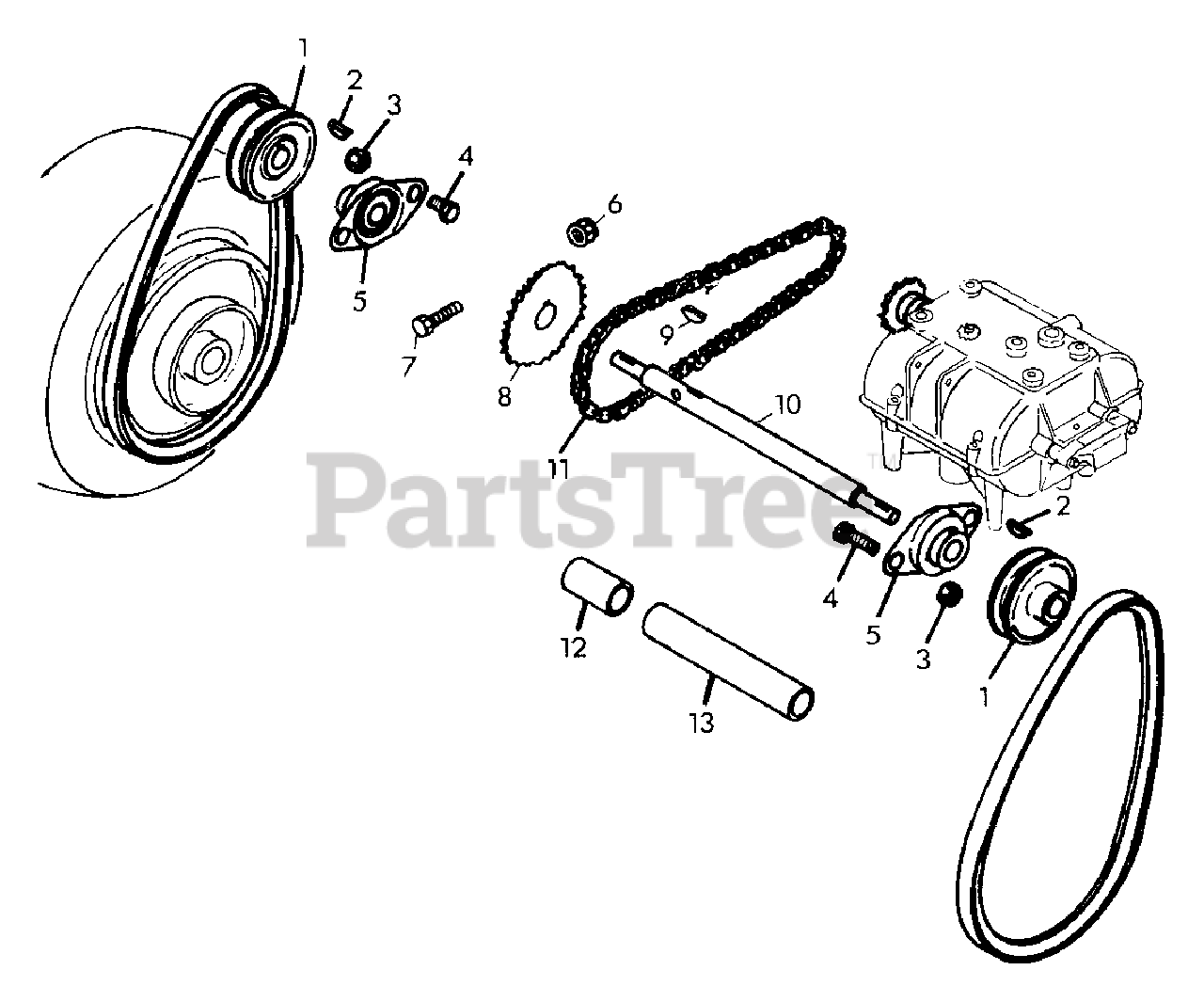

General Assembly Parts Diagram

  • Title

1

34321

Pulley, Jack-Shaft

$

$

Not available

2

Gravely 124549

Key, Woodruff 3/16x.750 Hard
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

30986

Bearing, Fan

$

$

Not available

6

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 180046

Bolt, Hex 1/4-20x2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

8

41321

Sprocket, 28T .5 Pitch

$

$

Not available

9

Gravely 218211

Key, Woodruff .25x.75 Hard
(Superseded to 06601200)

$2.99

$

In Stock, Qty 20+

0

10

41322

Shaft, Jack

$

$

Not available

11

40543

Chain, No. 40

$

$

Not available

12

42493

Tube, Plastic

$

$

Not available

13

41323

Tube, Plastic

$

$

Not available
