988038 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

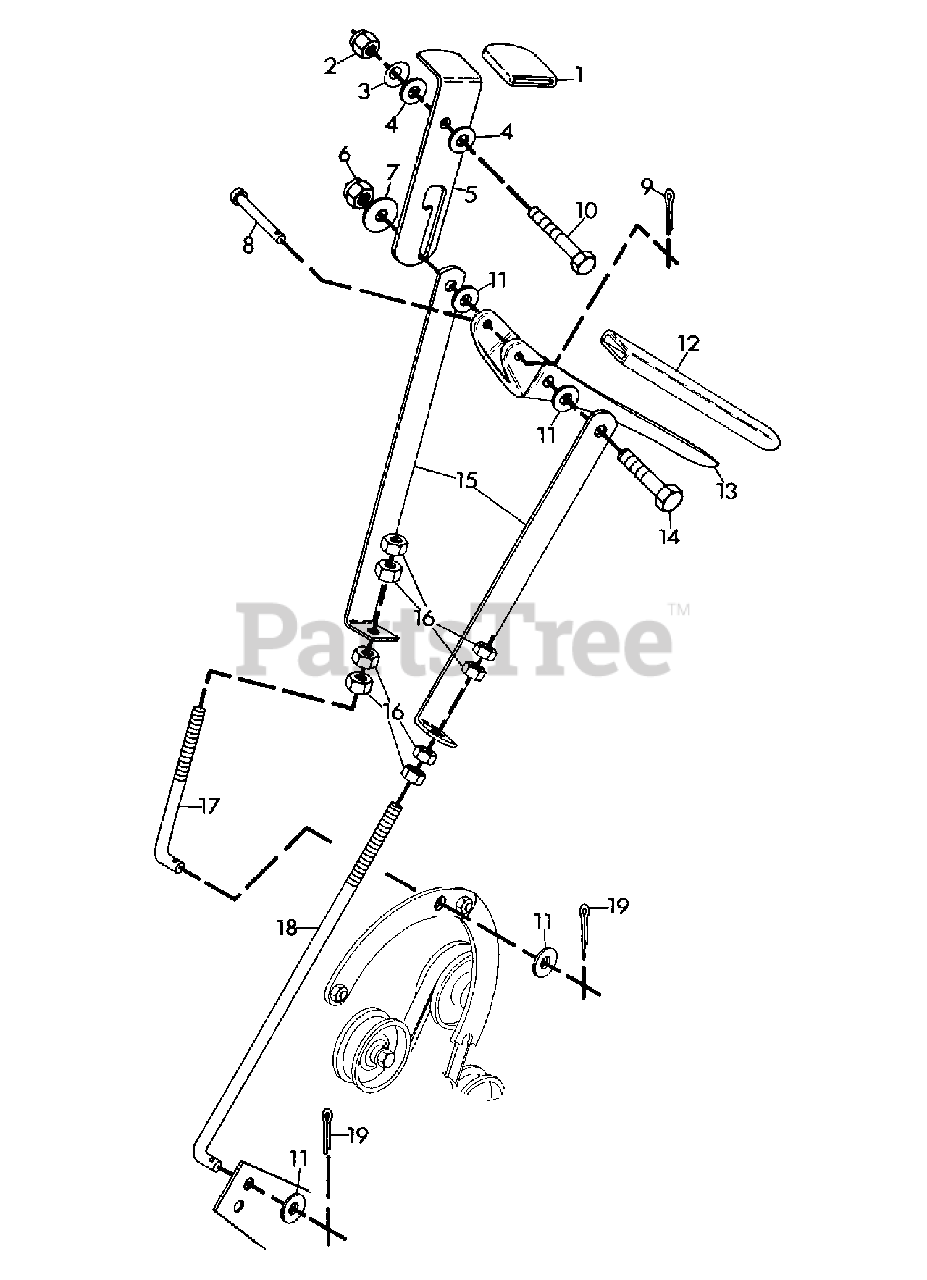

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 035124

TIP, VINYL
(Superseded to 20618500)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 041813

LEVER, CLUTCH-BRAKE LOCK
(Superseded to 20702600)

$

$

Not available

6

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 034354

PIN, CLEVIS .187X1.70
(Superseded to 20600600)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 112726

PIN, COTTER .06X.50
(Superseded to 21049300)

$

$

Not available

10

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 446363

WASHER, FLAT .360X.875X.083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 035125

GRIP, HANDLE
(Superseded to 20618600)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 034353

LEVER, HAND CLUTCH
(Superseded to 21226300)

$

$

Not available

14

Gravely 180083

BOLT, HEX 5/16-18X1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

15

Gravely 041989

STRAP, CLUTCH & BRAKE ACTUATING
(Superseded to 21262200)

$

$

Not available

16

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

17

Gravely 041990

ROD, CLUTCH
(Superseded to 08877800)

$

$

Not available

18

Gravely 041991

ROD, BRAKE LOWER
(Superseded to 20706800)

$

$

Not available

19

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0
