988038 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

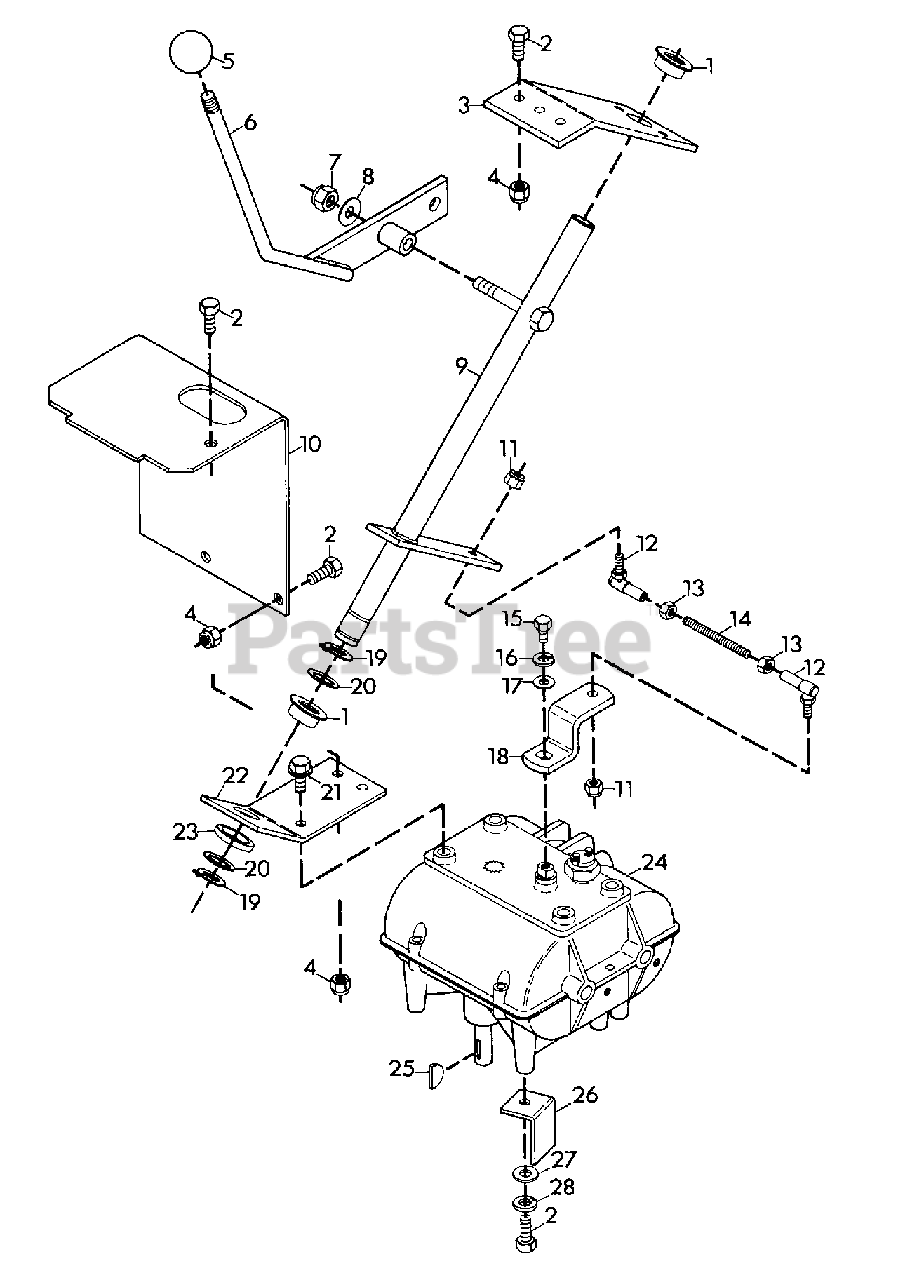

GEAR SELECTOR Parts Diagram

  • Title
1

Gravely 010174

BUSHING, NYLON .76X1X.6 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 041336

PLATE, SHIFTER SUPPORT UPPER
(Superseded to 21259400)

$

$

Not available

4

Gravely 419455

NUT, HEX 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 011261

KNOB, CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 041341

WELDMENT, SHIFT LEVER
(Superseded to 21259700)

$

$

Not available

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 041338

WELDMENT, SHIFTER SHAFT
(Superseded to 21259500)

$

$

Not available

10

Gravely 041345

GUARD, TRANSMISSION CHAIN
(Superseded to 08813900)

$

$

Not available

11

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

12

Gravely 032352

BALL JOINT, DISCONNECTING
(Superseded to 08802500)

$

$

Not available

13

Gravely 120367

NUT, HEX 1/4-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 041688

ROD, TRANS. SHIFTER
(Superseded to 08876500)

$

$

Not available

15

Gravely 181561

BOLT, HEX 1/4-28X.50
(Superseded to 05936600)

$

$

Not available

16

Gravely 120380

WASHER, LOCK 1/4
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 034418

ARM, TRANS. SHIFT
(Superseded to 08863751)

$

$

Not available

19

Gravely 026300

RING, RETAINING
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

20

Gravely 011223

RACE, BEARING THRUST
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

21

Gravely 034357

BOLT, SELF-TAPPING 5/16-18X.62
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

22

Gravely 041319

PLATE, SHIFT SUPPORT LOWER
(Superseded to 21259200)

$

$

Not available

23

Gravely 041337

SPACER, SHIFTER SHAFT
(Superseded to 01408100)

$

$

Not available

24

Gravely 040544

TRANSMISSION, PRO LINE
(Superseded to 08870600)

$707.99

$

Usually ships in 4-12 days

0

25

Gravely 124549

KEY, WOODRUFF .187X.750 HARD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 034329

GUIDE, V-BELT
(Superseded to 08803200)

$

$

Not available

27

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
