988036 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

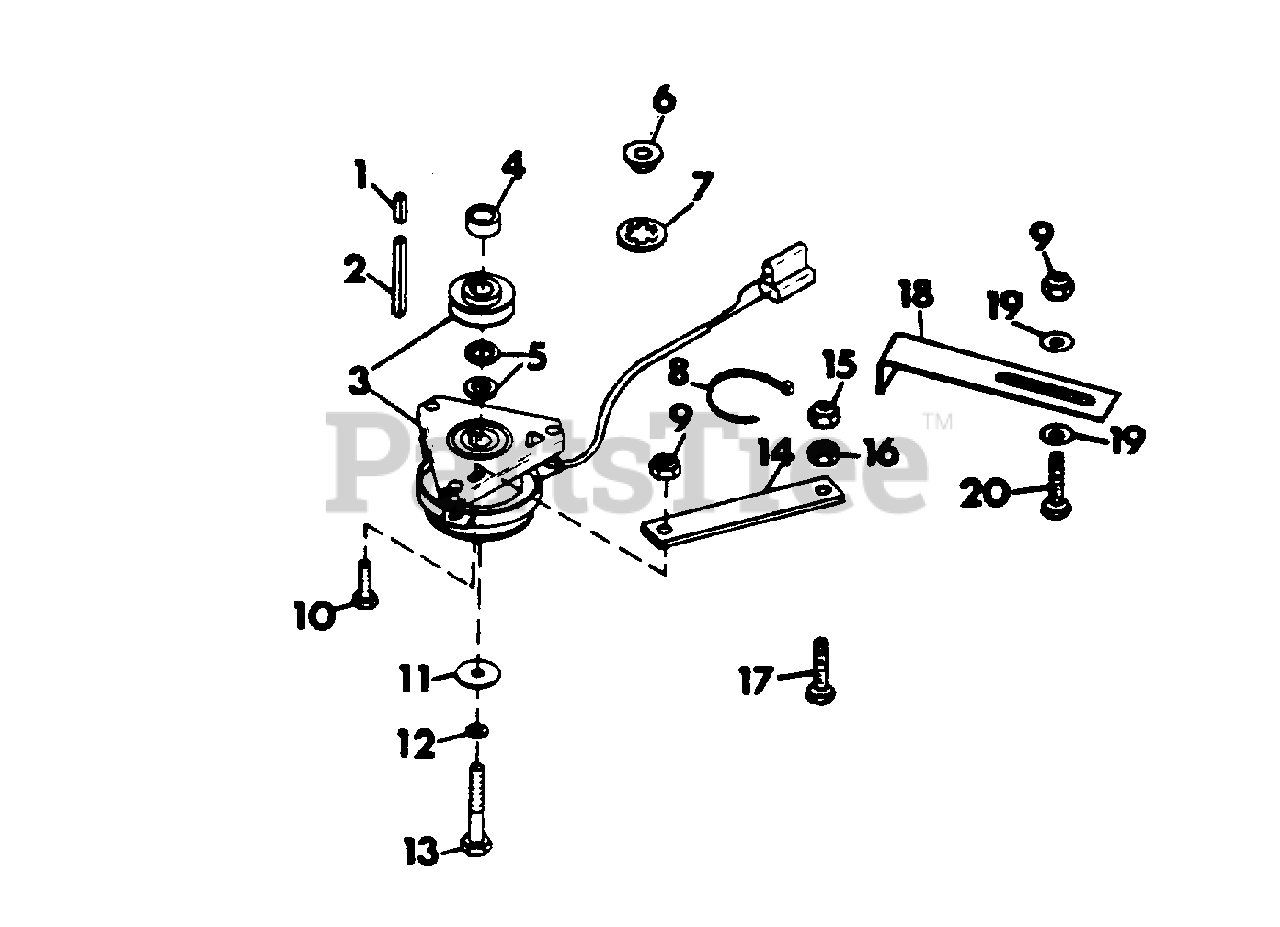

PTO CLUTCH LINKAGE Parts Diagram

  • Title
1

Gravely 035382

KEY, SQUARE
(Superseded to 20623900)

$

$

Not available

2

Gravely 035131

KEY, RECTANGULAR
(Superseded to 20619000)

$

$

Not available

3

Gravely 035126

CLUTCH, ELECTRIC
(Superseded to 20618700)

$

$

Not available

4

Gravely 035381

SPACER, ELECTRIC CLUTCH
(Superseded to 20623800)

$

$

Not available

5

Gravely 035380

SPACER, ELECTRIC CLUTCH
(Superseded to 20623700)

$

$

Not available

6

Gravely 010174

BUSHING, NYLON
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 020273

RING, RETAINING INT. TOOTH 1.000 SHAFT
(Superseded to 05717300)

$

$

Not available

8

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

9

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 034382

WASHER, SPECIAL FLAT
(Superseded to 20601300)

$

$

Not available

12

Gravely 120383

WASHER, LOCK 7/16 REG.
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 181678

BOLT, HEX 7/16-20X3.0
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 035132

BRACE, PTO CLUTCH
(Superseded to 21237600)

$

$

Not available

15

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 180188

BOLT, HEX 1/2-13X2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 034309

GUIDE, V-BELT
(Superseded to 08803000)

$

$

Not available

19

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0
