988035 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

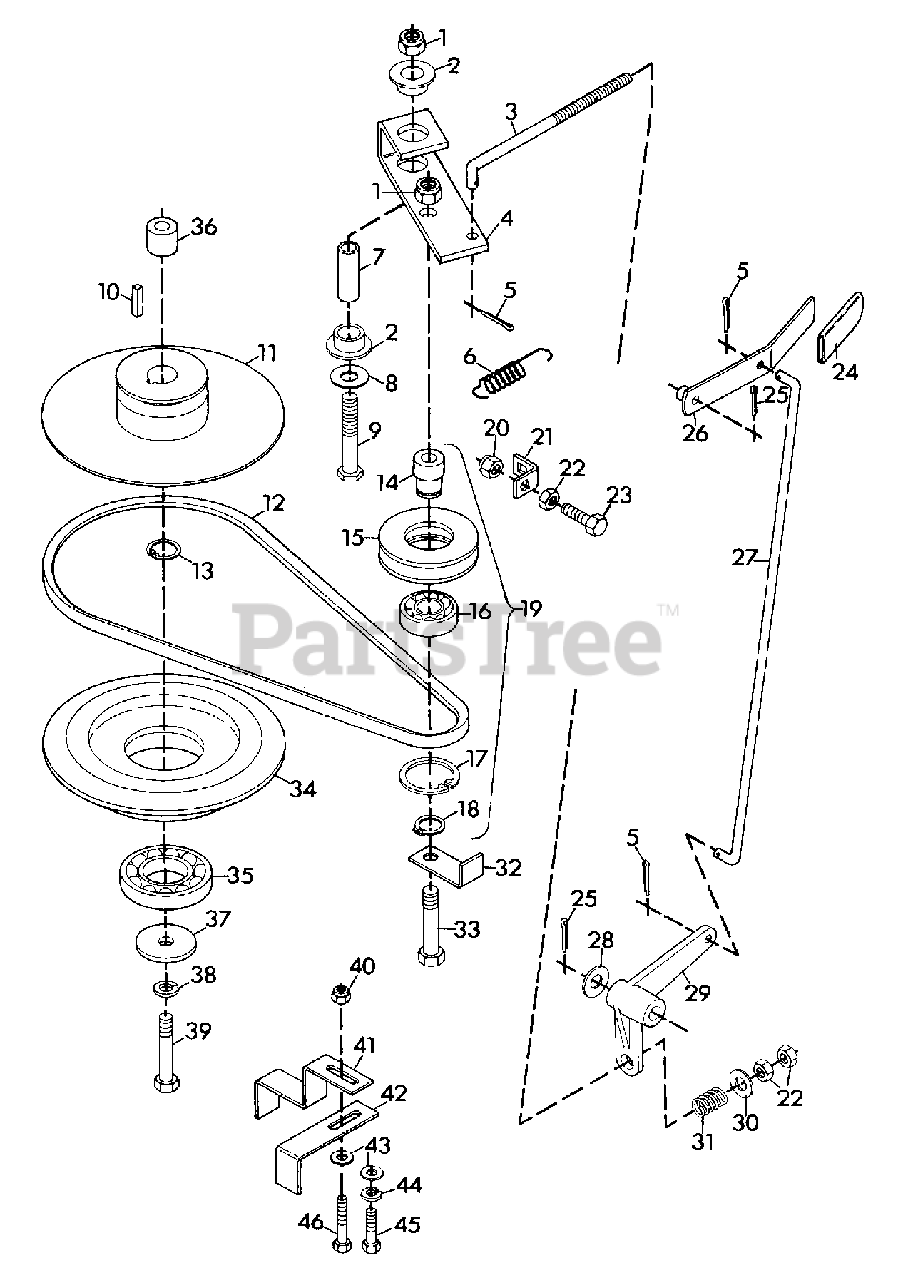

PTO CLUTCH LINKAGE Parts Diagram

  • Title
1

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 010174

BUSHING, NYLON .76X1X.6 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 041334

ROD, PTO CLUTCH ACTUATING
(Superseded to 08876200)

$200.99

$

In Stock, only 1 left!

0

4

Gravely 041370

ARM, IDLER PIVOT
(Superseded to 08846200)

$

$

Not available

5

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

6

Gravely 034385

SPRING, PTO RETURN
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

7

Gravely 039015

SPACER
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

8

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

9

Gravely 041333

BOLT, HEX 1/2-13X2.75 SPECIAL
(Superseded to 08813700)

$

$

Not available

10

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 041839

HUB, PTO AND DRIVE CLUTCH
(Superseded to 08814600)

$543.99

$

In Stock, only 1 left!

0

12

Gravely 041545

BELT, ENGINE-TRANSMISSION DRIVE
(Superseded to 07220600)

$20.99

$

In Stock, only 1 left!

0

13

Gravely 031624

RING, RETAINING
(Superseded to 05717200)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 039327

BUSHING
(Superseded to 08810700)

$102.99

$

Usually ships in 4-12 days

0

15

Gravely 038896

SHEAVE, IDLER
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

16

Gravely 038898

BEARING, BALL
(Superseded to 05425100)

$

$

Not available

17

Gravely 018960

RING, RETAINING
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 039331

RING, RETAINING
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

19

Gravely 039336

ASSEMBLY, IDLER SHEAVE
(Superseded to 08810900)

$262.99

$

Usually ships in 4-12 days

0

20

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

21

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

22

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

24

Gravely 034395

GRIP, PTO LEVER
(Superseded to 20601500)

$

$

Not available

25

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

26

Gravely 035061

WELDMENT, PTO CONTROL
(Superseded to 21237000)

$

$

Not available

27

Gravely 042550

ROD, PTO CONTROL
(Superseded to 20724300)

$

$

Not available

28

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 041838

LEVER, PTO CLUTCH
(Superseded to 08814500)

$

$

Not available

30

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 011779

SPRING, COMPRESSION 1.0X.78
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

32

Gravely 039330

GUIDE, BELT
(Superseded to 08810800)

$

$

Not available

33

Gravely 180185

BOLT, HEX 1/2-13X2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

34

Gravely 041353

SHEAVE, MOWER CLUTCH
(Superseded to 08814000)

$339.99

$

Usually ships in 4-12 days

0

35

Gravely 035330

BEARING, BALL 1.574X3.149X.708
(Superseded to 05420900)

$193.99

$

In Stock, only 3 left!

0

36

Gravely 035381

SPACER, ELECTRIC CLUTCH
(Superseded to 20623800)

$

$

Not available

37

Gravely 034328

WASHER, SPECIAL FLAT
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

38

Gravely 120383

WASHER, LOCK 7/16 REG.
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

39

Gravely 181676

BOLT, HEX 7/16-20X2.50
(Superseded to 05964600)

$2.49

$

In Stock, only 1 left!

0

40

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 041346

GUIDE, PTO V-BELT
(Superseded to 21259900)

$

$

Not available

42

Gravely 034309

GUIDE, V-BELT
(Superseded to 08803000)

$

$

Not available

43

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

44

UNKNOWN

UNKNOWN

$

$

Not available

45

UNKNOWN

UNKNOWN

$

$

Not available

46

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0
