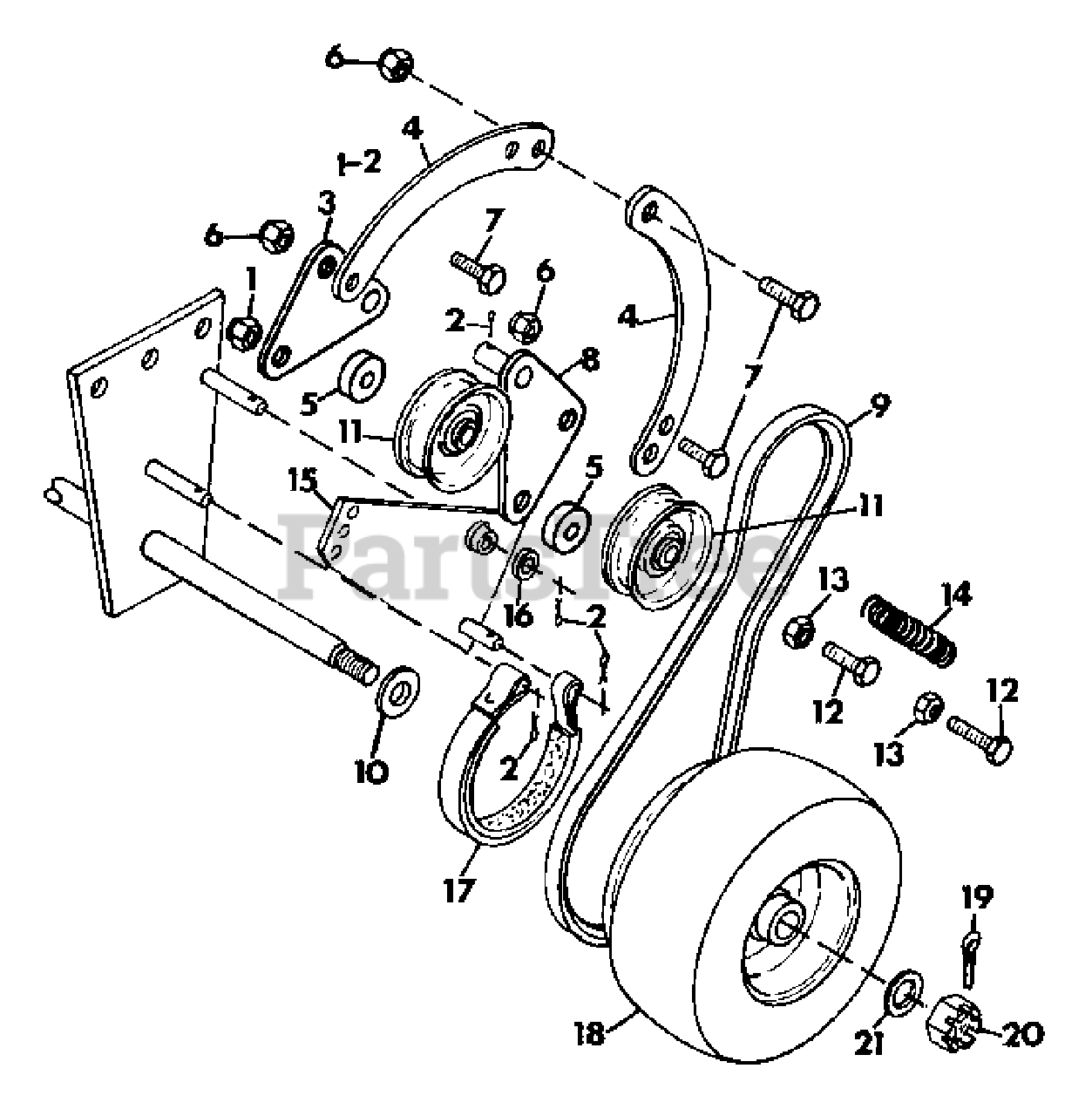

988033 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) Wheel & Tire Assembly Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

Wheel & Tire Assembly Parts Diagram

  • Title

1

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

3

35128

Weldment, Wheel Clutch L.H.

$

$

Not available

4

34387

Strap, Wheel Clutch Actuating

$

$

Not available

5

14672

Spacer, Idler

$

$

Not available

6

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 180075

Bolt, Hex 5/16-18x.625
(Superseded to 05901832)

$

$

Not available

8

34879

Lever, Wheel Clutch R.H.

$

$

Not available

9

34346

Belt, Traction

$

$

Not available

10

35379

Spacer, Wheel

$

$

Not available

11

27824

Sheave, Idler

$

$

Not available

12

34402

Bolt, Hex 3/8-16x2.0

$

$

Not available

13

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

34400

spring

$

$

Not available

15

34301

Weldment, Brake Lever L.H.

$

$

Not available

15

34302

Weldment, Brake Lever R.H.

$

$

Not available

16

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

34306

Assembly, Brake Band L.H.

$

$

Not available

17

34307

Assembly, Brake Band R.H.

$

$

Not available

18

34347

Assembly, Wheel and Tire

$

$

Not available

19

Gravely 137228

Pin, Cotter .156x1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

20

Gravely 427640

Nut, Slotted 3/4-16
(Superseded to 06538700)

$5.99

$

Usually ships in 4-12 days

0

21

11223

Race, Bearing Thrust

$

$

Not available
