988032 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton (SN: 000101 & Above) TRANSMISSION MODEL 773 Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton

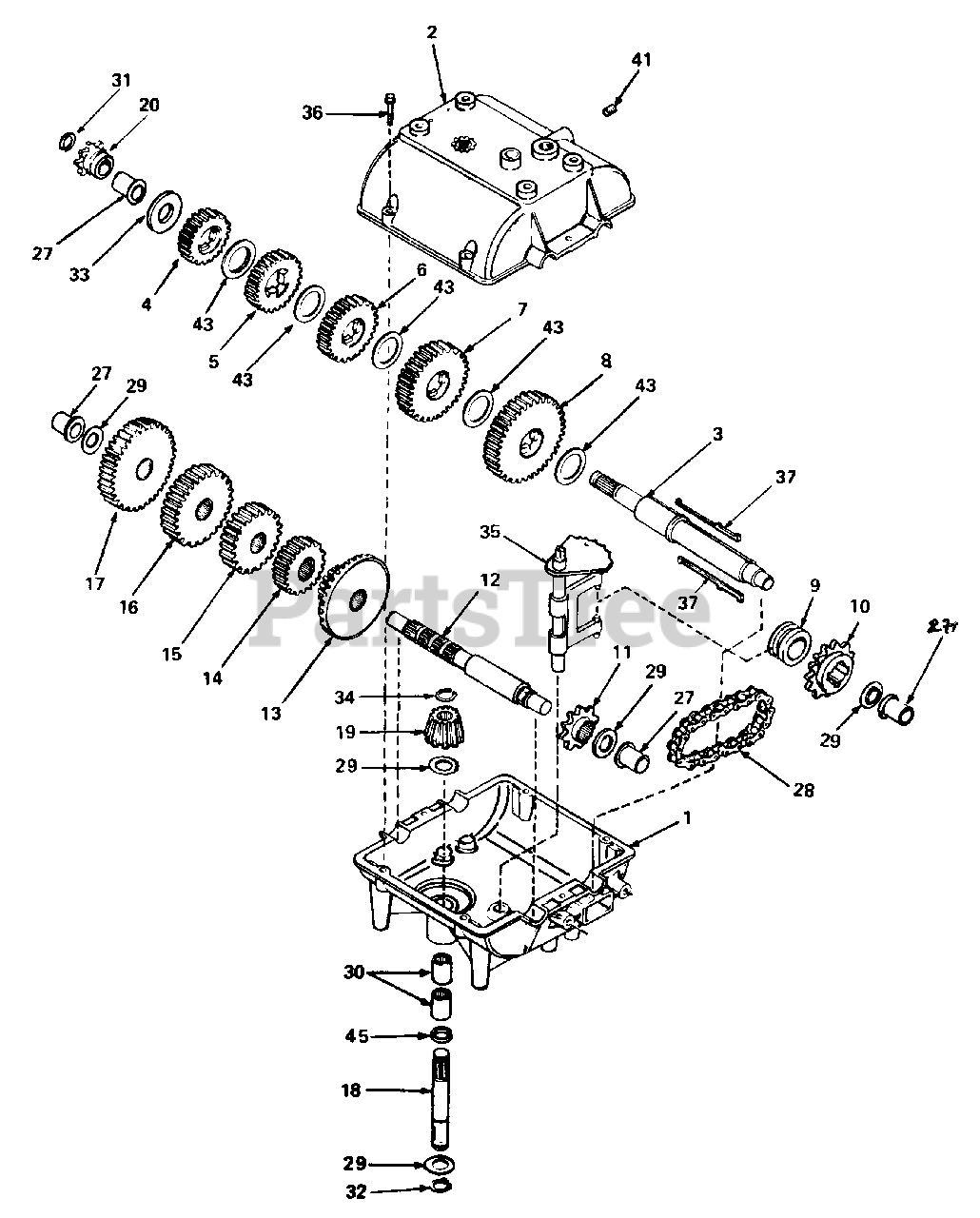

TRANSMISSION MODEL 773 Parts Diagram

  • Title

1

Gravely 770061

CASE, TRANSMISSION

$

$

Not available

2

Gravely 772083

COVER, TRANSMISSION

$

$

Not available

3

Gravely 776164

SHAFT, OUTPUT

$

$

Not available

4

Gravely 778121A

GEAR, SPUR (20 TEETH)

Note: (20 TEETH)

$

$

Not available

5

Gravely 778122A

GEAR, SPUR (22 TEETH)

Note: (22 TEETH)

$

$

Not available

6

Gravely 778123A

GEAR, SPUR (25 TEETH)

Note: (25 TEETH)

$

$

Not available

7

Gravely 778124A

GEAR, SPUR (30 TEETH)

Note: (30 TEETH)

$

$

Not available

8

Gravely 778125

GEAR, SPUR (35 TEETH)

Note: (35 TEETH)

$

$

Not available

9

Gravely 784266

COLLAR, SHIFT

$

$

Not available

10

Gravely 786083

SPROCKET (18 TEETH)

Note: (18 TEETH)

$

$

Not available

11

Gravely 786082

SPROCKET (9 TEETH)

Note: (9 TEETH)

$

$

Not available

12

Gravely 776134

SHAFT, COUNTER

$

$

Not available

13

Gravely 778109

GEAR, BEVEL (42 TEETH AND 15 TOOTH SPUR GEAR)

Note: (42 TEETH AND 15 TOOTH SPUR GEAR)

$

$

Not available

14

Gravely 778126A

GEAR, SPUR (20 TEETH)

Note: (20 TEETH)

$

$

Not available

15

Gravely 778127A

GEAR, SPUR (25 TEETH)

Note: (25 TEETH)

$

$

Not available

16

Gravely 778128A

GEAR, SPUR (28 TEETH)

Note: (28 TEETH)

$

$

Not available

17

Gravely 778129A

GEAR, SPUR (30 TEETH)

Note: (30 TEETH)

$

$

Not available

18

Gravely 776135

SHAFT, INPUT

$

$

Not available

19

Gravely 778113A

BEVEL PINION, INPUT

$

$

Not available

20

Gravely 786047

SPROCKET (8 TEETH)

Note: (8 TEETH)

$

$

Not available

27

Gravely 780105A

BUSHING, FLANGED

$

$

Not available

28

Gravely 786081

CHAIN, ROLLER (NO. 41 CHAIN, 24 LINKS)

Note: (NO. 41 CHAIN, 24 LINKS)

$

$

Not available

29

Gravely 780072

RACE, THRUST

$

$

Not available

30

Gravely 780086

BEARING, NEEDLE

$

$

Not available

31

Gravely 792072

RING, RETAINING

$

$

Not available

32

Gravely 792035

RING, RETAINING

$

$

Not available

33

Gravely 780109

WASHER

$

$

Not available

34

Gravely 788040

RING, RETAINING

$

$

Not available

35

Gravely 784267

ROD & FORK ASSY., SHIFT

$

$

Not available

36

Gravely 792073

SCREW, HEX HD. TAP-TITE, 1/4-20X1-1/4

$

$

Not available

37

Gravely 792089A

KEY

$

$

Not available

41

Gravely 792078

SCREW, SET 3/8-16X3/8

$

$

Not available

43

Gravely 780108

WASHER, THRUST

$

$

Not available

45

Gravely 792001

O-RING

$

$

Not available
