988032 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton (SN: 000101 & Above) Main Drive Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton

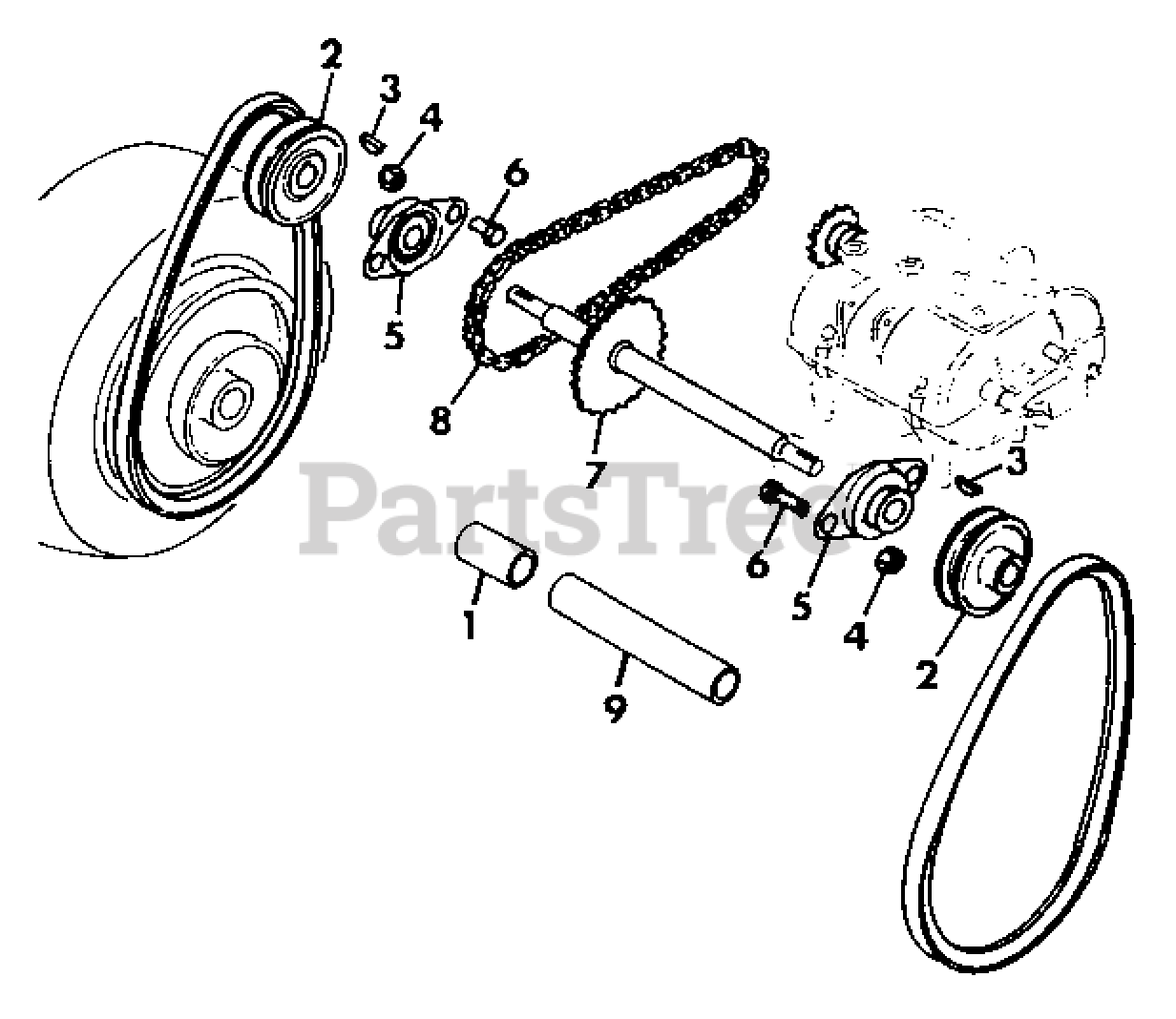

Main Drive Parts Diagram

  • Title
1

37831

Tube, Plastic

$

$

Not available

2

34321

Pulley, Jack-Shaft

$

$

Not available

3

Gravely 124549

Key, Woodruff 3/16x.750 Hard
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

30986

Bearing, Fan

$

$

Not available

6

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

7

37828

Weldment, Jack-Shaft

$

$

Not available

8

34330

Chain, American Standard No. 40

$

$

Not available

9

37830

Tube, Plastic

$

$

Not available
