988030 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) TRACTION CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

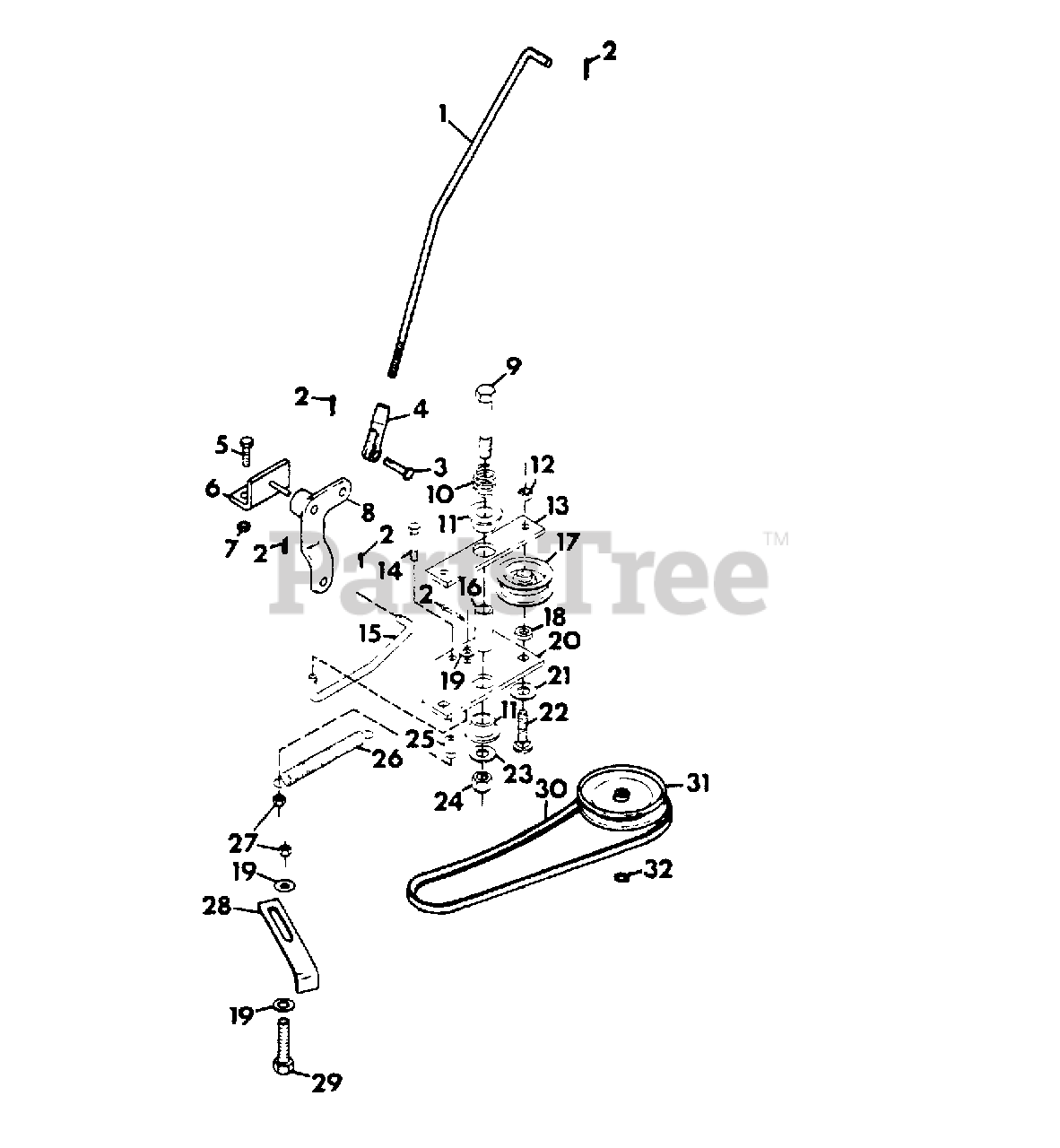

TRACTION CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 034416

ROD, NEUTRAL CLUTCH
(Superseded to 20602000)

$

$

Not available

2

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

3

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

4

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 034887

WELDMENT, CLUTCH LEVER BRACKET
(Superseded to 21235000)

$

$

Not available

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 034630

LEVER, CLUTCH PIVOT
(Superseded to 21231700)

$

$

Not available

9

Gravely 180190

BOLT, HEX 1/2-13X3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

10

Gravely 020444

SPRING, COMP. 1X.80X36 LB/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

11

Gravely 010174

BUSHING, NYLON
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 039013

PLATE, IDLER
(Superseded to 21248300)

$

$

Not available

14

Gravely 180083

BOLT, HEX 5/16-18X1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

15

Gravely 039016

ROD, IDLER
(Superseded to 21366900)

$

$

Not available

16

Gravely 039015

SPACER
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

17

Gravely 027829

SHEAVE, IDLER
(Superseded to 07317200)

$34.99

$

In Stock, only 2 left!

0

18

Gravely 014672

SPACER, IDLER
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

19

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 039014

PLATE, IDLER
(Superseded to 21248400)

$

$

Not available

21

Gravely 103343

WASHER, FLAT .531X1.063X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 126416

BOLT 3/8-16X1.75 RD HD SQ NK
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

24

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 012123

SPACER, SHIPPER SHAFT GUIDE
(Superseded to 08588200)

$77.99

$

In Stock, only 2 left!

0

26

Gravely 034636

SPRING, NEUTRAL CLUTCH
(Superseded to 20605700)

$

$

Not available

27

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 034310

GUIDE, V-BELT
(Superseded to 08803100)

$

$

Not available

29

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

30

Gravely 034332

BELT, V-DRIVE
(Superseded to 07220600)

$20.99

$

In Stock, only 1 left!

0

31

Gravely 034331

SHEAVE, TRANSMISSION
(Superseded to 07319400)

$59.99

$

Usually ships in 4-12 days

0

32

Gravely 015338

RING, RETAINING
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0
