988028 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton (SN: 000101 & Above) FRAME Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton

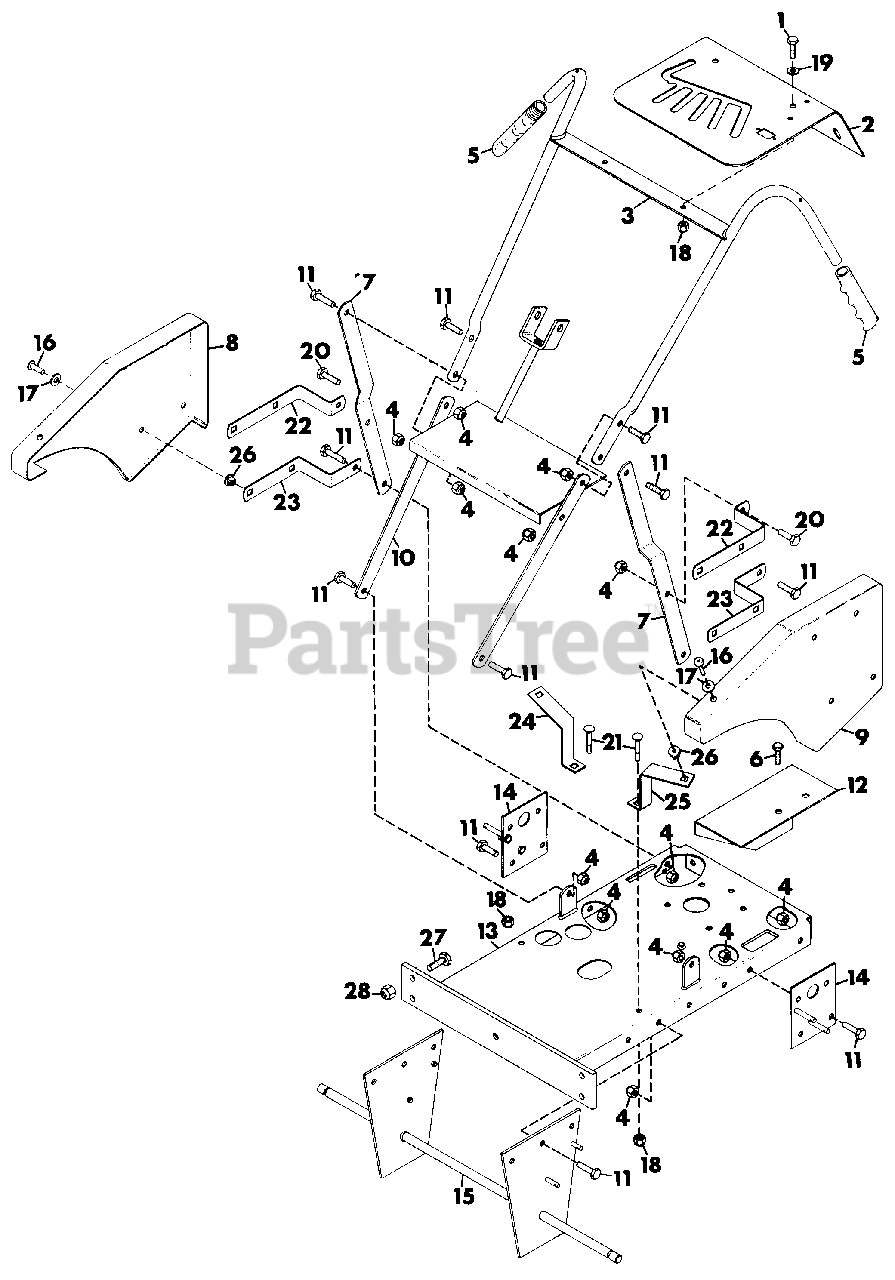

FRAME Parts Diagram

  • Title
1

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 037755

PLATE, INSTRUCTION
(Superseded to 21243800)

$

$

Not available

3

Gravely 034875

WELDMENT, HANDLEBAR
(Superseded to 21234500)

$

$

Not available

4

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 010671

GRIP, HAND
(Superseded to 20046100)

$17.99

$

In Stock, only 1 left!

0

6

Gravely 034357

BOLT, SELF-TAPPING 5/16-18X.50
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

7

Gravely 034878

BRACE, HANDLEBAR SUPPORT
(Superseded to 08804000)

$

$

Not available

8

Gravely 037804

GUARD, BELT R.H.
(Superseded to 20637300)

$

$

Not available

9

Gravely 037803

GUARD, BELT L.H.
(Superseded to 20637200)

$

$

Not available

10

Gravely 034873

WELDMENT, HANDLE BAR SUPPORT
(Superseded to 21248900)

$

$

Not available

11

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 034891

GUARD, TRANSMISSION CHAIN
(Superseded to 21235400)

$

$

Not available

13

Gravely 034865

WELDMENT, FRAME
(Superseded to 20638600)

$92.99

$

Usually ships in 4-12 days

0

14

Gravely 034870

WELDMENT, BEARING SUPPORT L.H.
(Superseded to 21256500)

$

$

Not available

15

Gravely 034868

WELDMENT, AXLE
(Superseded to 21264800)

$

$

Not available

16

Gravely 160536

SCREW, MACHINE 1/4-20X.625 RD HD
(Superseded to 06113400)

$

$

Not available

17

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 180077

BOLT, HEX 5/16-18.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 037799

BRACKET, TOP
(Superseded to 20637000)

$

$

Not available

23

Gravely 037800

BRACKET, BOTTOM
(Superseded to 20637100)

$

$

Not available

24

Gravely 037801

SUPPORT, FRONT R.H.
(Superseded to 21244200)

$

$

Not available

25

Gravely 037802

SUPPORT, FRONT L.H.
(Superseded to 21244300)

$

$

Not available

26

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0
