988026 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

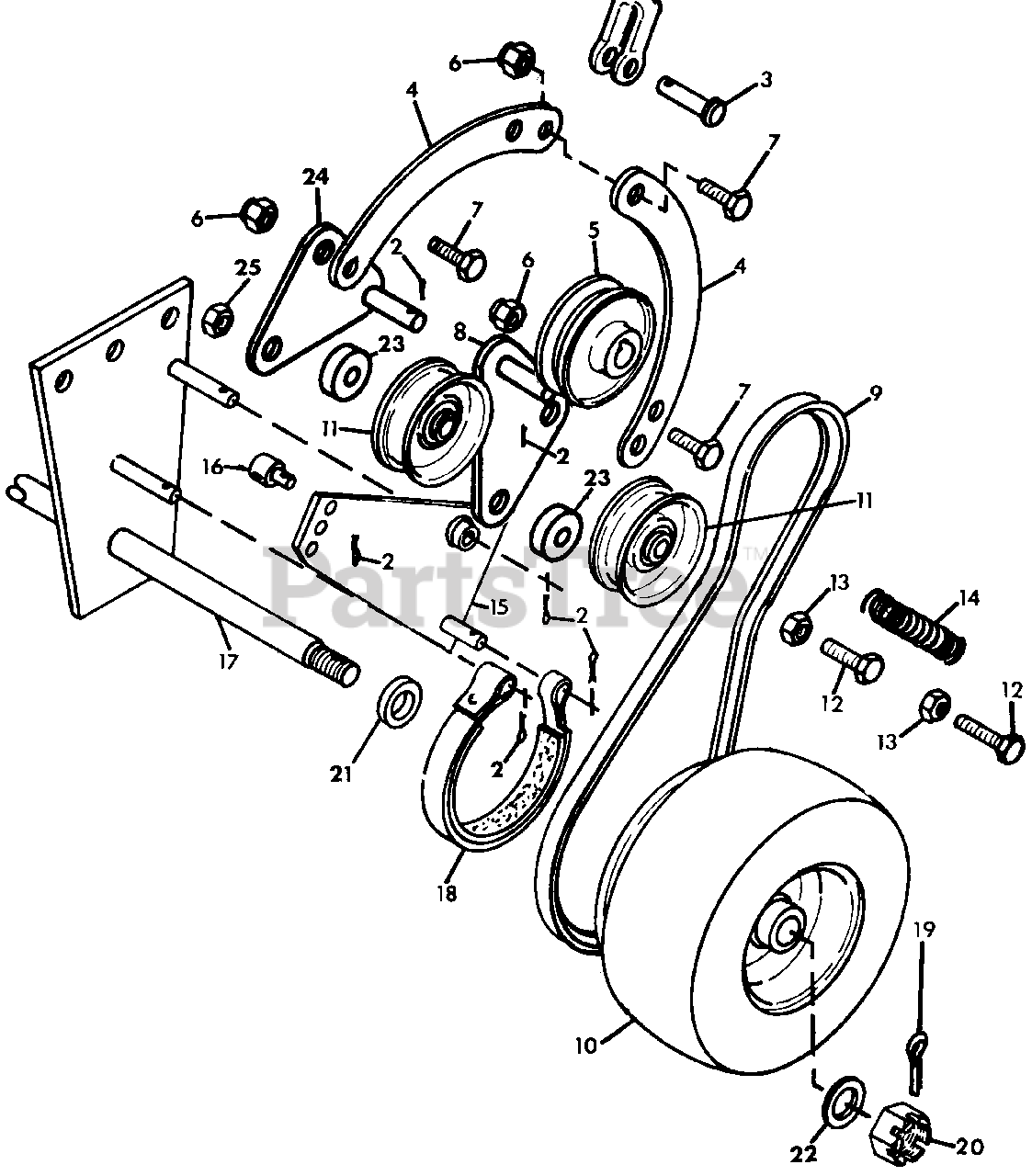

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 034633

CLEVIS, 5/16
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 121222

PIN, COTTER .09X.625
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

3

Gravely 121741

PIN, CLEVIS .312X.812
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 034387

STRAP, WHEEL CLUTCH ACTUATING
(Superseded to 21226700)

$

$

Not available

5

Gravely 034321

PULLEY, JACK-SHAFT
(Superseded to 08822800)

$

$

Not available

6

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 180075

BOLT, HEX 5/16X.625
(Superseded to 05901832)

$

$

Not available

8

Gravely 034879

LEVER, WHEEL CLUTCH IDLER
(Superseded to 21234600)

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 034346

BELT, TRACTION
(Superseded to 20600100)

$37.99

$

In Stock, only 1 left!

0

10

Gravely 034347

ASSEMBLY, WHEEL & TIRE
(Superseded to 07129800)

$

$

Not available

11

Gravely 027824

SHEAVE, IDLER
(Superseded to 07317100)

$

$

Not available

12

Gravely 034402

BOLT, HEX 3/8-16X2.0
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 034400

SPRING
(Superseded to 08332000)

$11.99

$

In Stock, only 1 left!

0

15

Gravely 034301

WELDMENT, BRAKE LEVER L.H.
(Superseded to 21261700)

$

$

Not available

15

Gravely 034302

WELDMENT, BRAKE LEVER R.H.
(Superseded to 21261800)

$

$

Not available

16

Gravely 034349

PIVOT, BRAKE ROD
(Superseded to 20600400)

$

$

Not available

17

Gravely 034868

WELDMENT, AXLE
(Superseded to 21264800)

$

$

Not available

18

Gravely 034306

ASSEMBLY, BRAKE BAND L.H.
(Superseded to 08802800)

$90.99

$

Usually ships in 4-12 days

0

18

Gravely 034307

ASSEMBLY, BRAKE BAND R.H.
(Superseded to 08802900)

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 137228

PIN, COTTER .156X1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

20

Gravely 427640

NUT, SLOTTED 3/4-16
(Superseded to 06538700)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 035379

SPACER, WHEEL
(Superseded to 20623600)

$

$

Not available

22

Gravely 423315

WASHER, FLAT .812X1.375X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 014672

SPACER, IDLER
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

24

Gravely 035128

WELDMENT, WHEEL CLUTCH L.H.
(Superseded to 21237500)

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
