988026 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

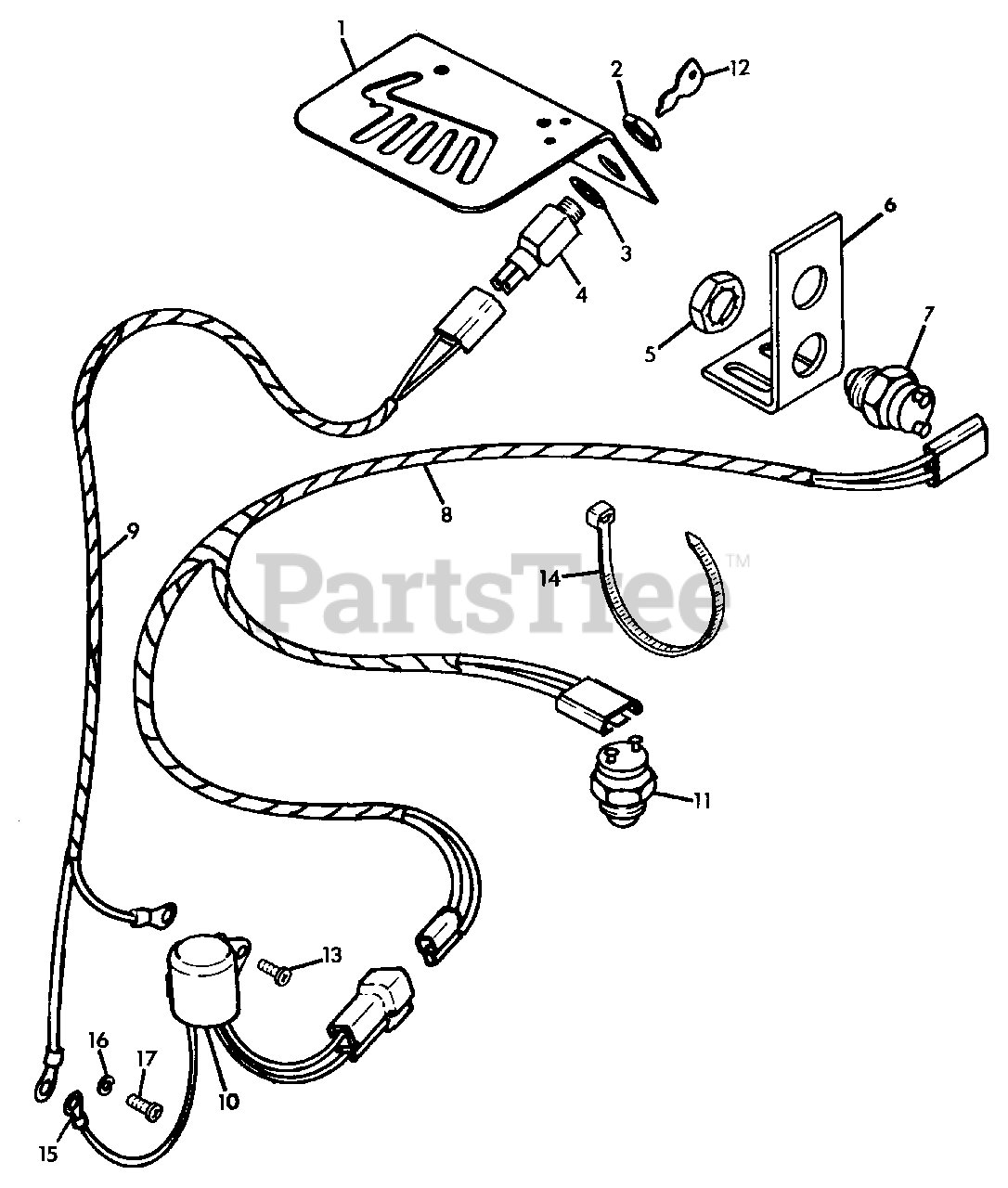

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 037755

PLATE, INSTRUCTION
(Superseded to 21243800)

$

$

Not available

2

Gravely 018585

NUT, JAM 5/8-32
(Superseded to 21119800)

$

$

Not available

3

Gravely 018586

WASHER, LOCK 5/8
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 030202

SWITCH, KEY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 107354

NUT, 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 034637

BRACKET, INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

7

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

8

Gravely 034639

HARNESS, WIRING INTERLOCK
(Superseded to 20605900)

$

$

Not available

9

Gravely 034638

HARNESS, WIRING SWITCH
(Superseded to 20605800)

$

$

Not available

10

Gravely 030204

CONTROL MODULE
(Superseded to 20527200)

$

$

Not available

11

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

12

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

13

Gravely 448423

SCREW, TAPPING 10-24X.50 HHD SF
(Superseded to 07410700)

$

$

Not available

14

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

15

Gravely 036932

TERMINAL, CONNECTOR CLIP TYPE
(Superseded to 20633600)

$

$

Not available

16

Gravely 120217

WASHER, LOCK NO. 10
(Superseded to 21049900)

$

$

Not available

17

Gravely 160046

SCREW, MACHINE 10-32X.50 P/HD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
