988022 - Gravely Pro 50 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro 50 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

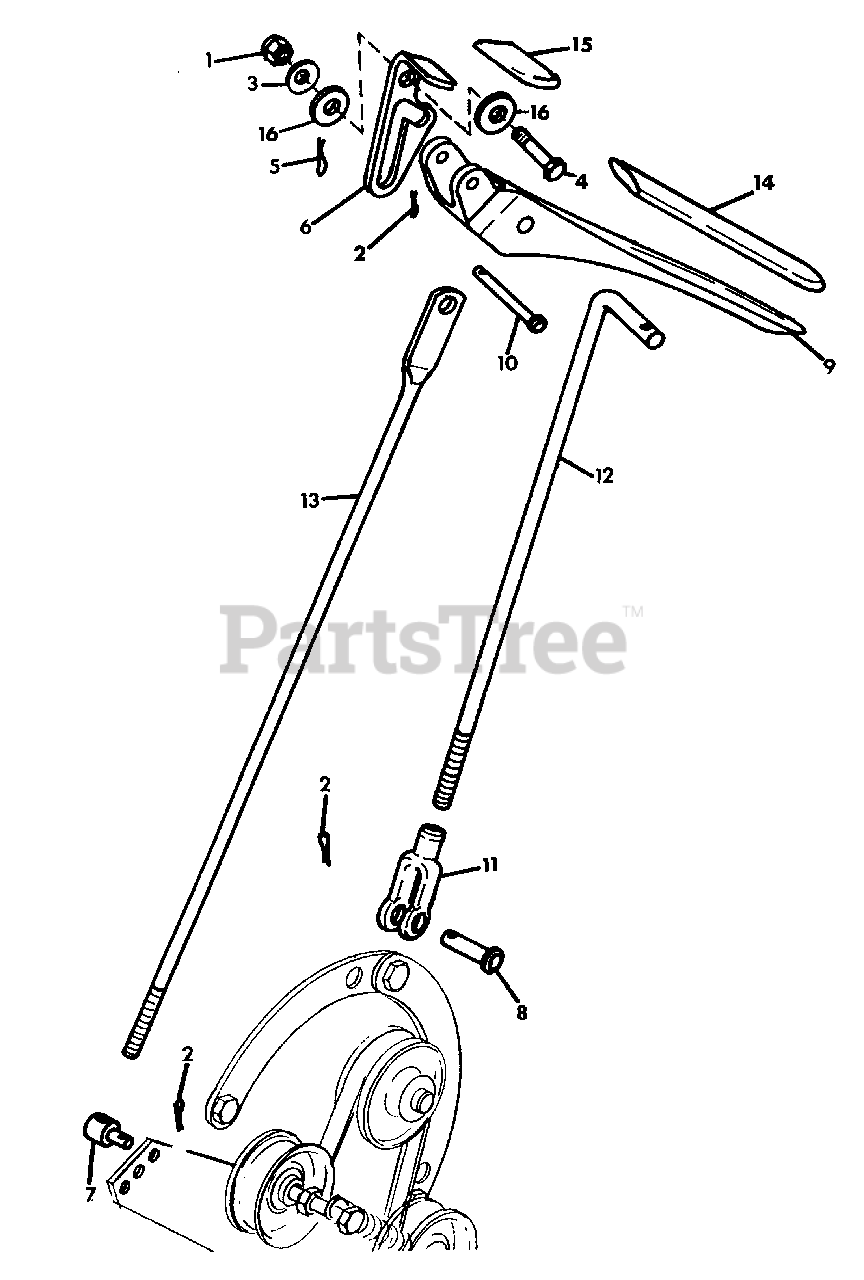

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 121222

PIN, COTTER .09X.625
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

3

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

5

Gravely 112726

PIN, COTTER .06X.50
(Superseded to 21049300)

$

$

Not available

6

Gravely 034415

LEVER, CLUTCH-BRAKE LOCK R.H.
(Superseded to 20601900)

$

$

Not available

7

Gravely 034349

PIVOT, BRAKE ROD
(Superseded to 20600400)

$

$

Not available

8

Gravely 121741

PIN, CLEVIS .312X.812
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 034353

LEVER, HAND CLUTCH
(Superseded to 21226300)

$

$

Not available

10

Gravely 034354

PIN, CLEVIS .187X1.70
(Superseded to 20600600)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 034633

CLEVIS, 5/16
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 034897

ROD, WHEEL CLUTCH ACTUATING
(Superseded to 20613500)

$

$

Not available

13

Gravely 034350

ROD, BRAKE
(Superseded to 20600500)

$

$

Not available

14

Gravely 035125

GRIP, HANDLE
(Superseded to 20618600)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 035124

TIP, VINYL
(Superseded to 20618500)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0
