988020 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Traction Clutch Linkage Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

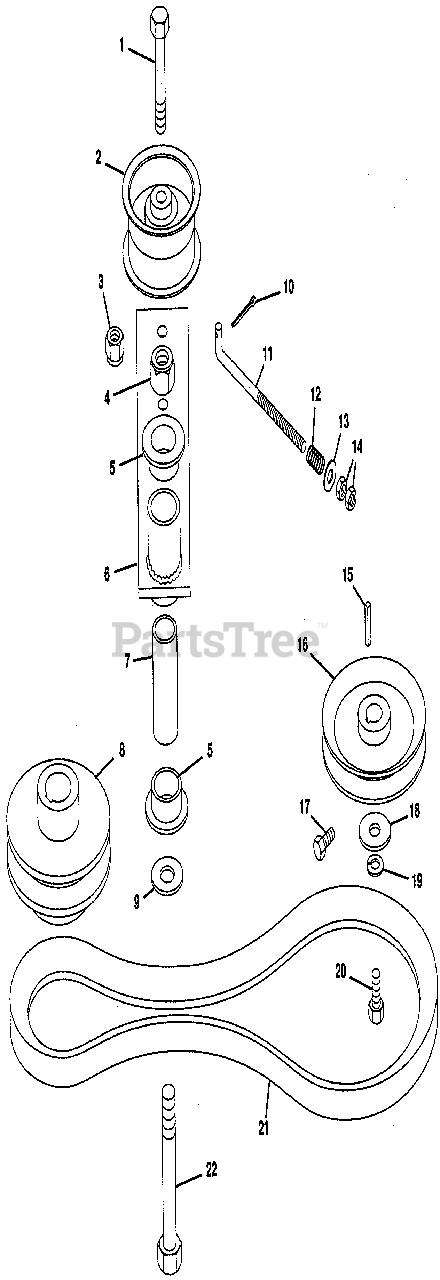

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 05958500

BOLT, HEX 3/8-16 X 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 07320700

PULLEY, IDLER

$34.99

$

In Stock, only 1 left!

0

3

Gravely 06535800

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 06540600

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 05518400

BUSH., FLG. .764 X 1.47 X .560 NY.

$4.99

$

In Stock, Qty 20+

0

6

Gravely 08844251

WELDMENT, GROUND DRIVE IDLER

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 08815100

BUSH., ST. .560 X .745 X 2.04 STL.

$21.99

$

In Stock, only 1 left!

0

8

Gravely 08844500

SHEAVE, ENGINE GROUND DRIVE

Note: (16 & 17 HP)

$136.99

$

Usually ships in 4-12 days

0

8

Gravely 08855400

SHEAVE, ENGINE GROUND DRIVE

Note: (20 HP)

$

$

Not available

9

Gravely 06441900

WASHER, FLAT .531 X 1.062 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06706900

PIN, COTTER .094 X .75

$0.99

$

In Stock, Qty 10

0

11

Gravely 08879300

ROD, IDLER

$77.99

$

Usually ships in 4-12 days

0

12

Gravely 08327000

SPRING, COMP. 1 X .78 X 388 LB/LN

$15.99

$

In Stock, only 2 left!

0

13

Gravely 06436200

WASHER, FLAT .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06522900

NUT, HEX 3/8-24
(Superseded to 06500940)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 06607500

KEY, 5MM SQ. X 25MM LG.

$3.99

$

In Stock, only 2 left!

0

16

Gravely 07318900

SHEAVE, HYDRAULIC PUMP

$51.99

$

In Stock, only 2 left!

0

17

Gravely 05947900

BOLT, HEX 1/4-20 X .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06403700

WASHER, FLAT .265 X 1.250 X .063

$

$

Not available

19

Gravely 06308400

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05969800

BOLT, HEX M6 X 1.0 X 12MM LG.

$1.99

$

In Stock, Qty 14

0

21

Gravely 07223100

V-BELT, ENGINE TO PUMP

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 05959900

BOLT, HEX 1/2-13 X 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0
