988020 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Steering Control Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

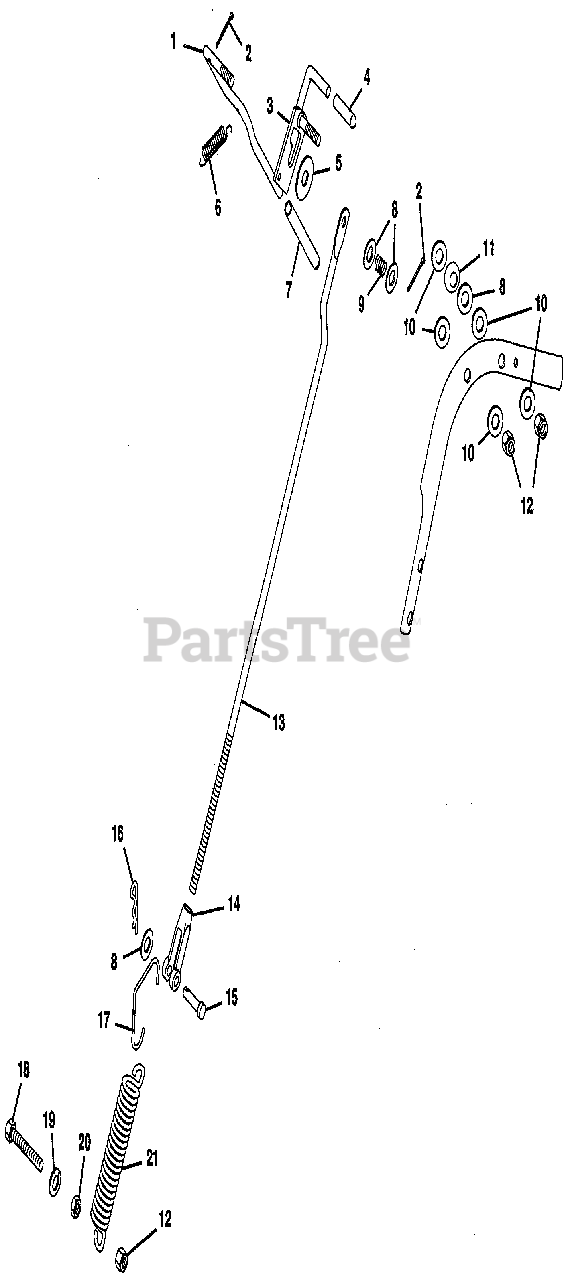

Steering Control Parts Diagram

  • Title

1

Gravely 04905200

LVR, HAND CONTROL

$79.99

$

In Stock, only 1 left!

0

2

Gravely 06706900

PIN-COTR .09 X .75 PL

$0.99

$

In Stock, Qty 10

0

3

Gravely 08848200

WLDMT NEUTRAL LOCKING LEVER

$

$

Not available

4

Gravely 07503800

TIP, BRAKE LOCK LEVER

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06435900

WASHER, FLAT .438 X 1.375 X .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 08339300

SPRING, EXTENSION

$5.99

$

In Stock, only 1 left!

0

7

Gravely 07528300

GRIP, HAND CLUTCH LEVER

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06436200

WASHER, FLAT .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 08338800

SPRING, COMPRESSION

$6.99

$

In Stock, only 2 left!

0

10

Gravely 06433600

WASHER, NYLON .375 X .75 X .06

$0.99

$

In Stock, Qty 11

0

11

Gravely 06433000

WASHER, SPRING .375 I.D.

$

$

Not available

12

Gravely 06535800

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 08878900

ROD, STEERING CONTROL

$297.99

$

Usually ships in 4-12 days

0

14

Gravely 08800400

CLEVIS, 3/8-24 ADJUSTABLE

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 06810200

PIN, CLEVIS

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06713500

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 08879000

HOOK, SPRING

$

$

Not available

18

Gravely 05943100

BOLT, HEX 3/8-16 X 2.50

$3.49

$

In Stock, only 3 left!

0

19

Gravely 06308800

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529400

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08346800

SPRING, EXT. LE-105J6

$14.99

$

In Stock, only 2 left!

0
