988020 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) PTO Clutch Linkage Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

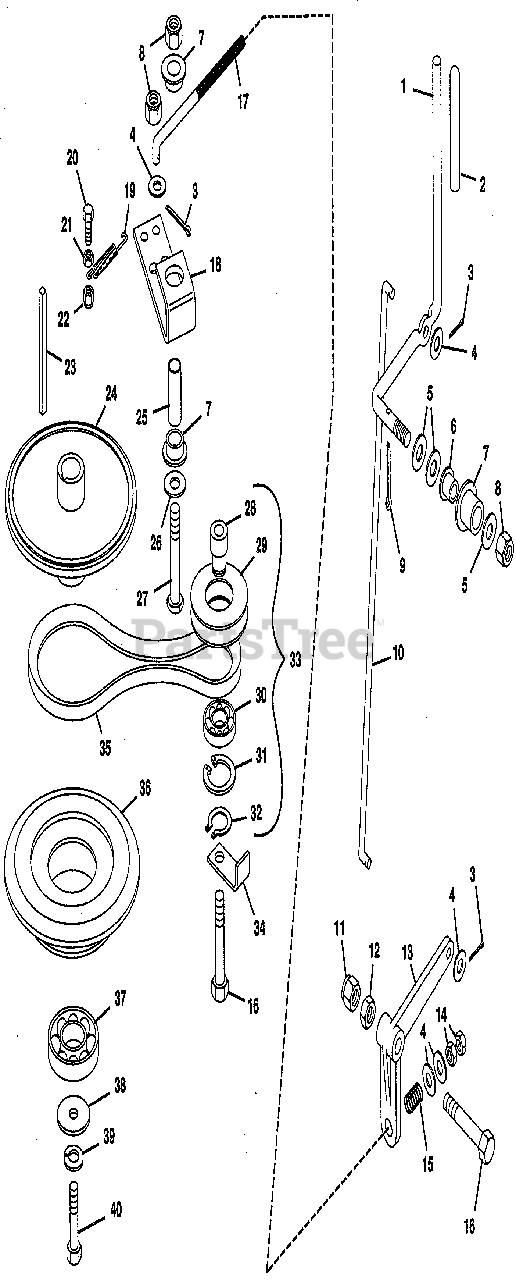

PTO Clutch Linkage Parts Diagram

  • Title

1

Gravely 08878800

LEVER, PTO ACTUATING

$

$

Not available

2

Gravely 07528200

GRIP, PTO LEVER

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 06706900

PIN, COTTER .09 X .75

$0.99

$

In Stock, Qty 10

0

4

Gravely 06436200

WASHER, FLAT .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06441000

WASHER, FLAT .531 X 1.250 X .100
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

6

Gravely 05521100

BUSH., FLG. .515 X 1.00 X .745 NY.

$2.49

$

In Stock, only 3 left!

0

7

Gravely 05518400

BUSH., FLG. .764 X 1.47 X .560 NY.

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06540600

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06712700

PIN, COTTER .187 X 1.25

$1.99

$

In Stock, only 3 left!

0

10

Gravely 08836400

ROD, PTO CONTROL

$32.99

$

Usually ships in 4-12 days

0

11

Gravely 06536300

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06529300

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08844600

LEVER, PTO CLUTCH

$

$

Not available

14

Gravely 06529400

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08327000

SPRING, COMP. 1 X .78 X 388

$15.99

$

In Stock, only 2 left!

0

16

Gravely 05966600

BOLT, HEX 1/2-13 X 2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

17

Gravely 08876200

ROD, PTO CLUTCH ACTUATING

$200.99

$

In Stock, only 1 left!

0

18

Gravely 08846200

ARM, IDLER PIVOT

$

$

Not available

19

Gravely 08331900

SPRING, PTO RETURN

$30.99

$

In Stock, only 1 left!

0

20

Gravely 05946900

BOLT, HEX 5/16-18 X 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06529200

NUT, HEX 5/16-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

22

Gravely 06530200

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06607600

KEY, SQUARE .250 X 3.60

$

$

Not available

24

Gravely 08844400

HUB, PTO CLUTCH

Note: (16 & 17 HP)

$

$

Not available

24

Gravely 08855300

HUB, PTO CLUTCH

Note: (20HP)

$

$

Not available

25

Gravely 08815100

BUSH., ST. .560 X .745 X 2.04 STL.

$21.99

$

In Stock, only 1 left!

0

26

Gravely 06441900

WASHER, FLAT .531 X .787 X 1.41 STL.
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 08813700

BOLT, HEX 1/2-13 X 2.75 SPECIAL

$

$

Not available

28

Gravely 08810700

BUSH., FLG. .515 X 787 X 1.41 STL

$102.99

$

Usually ships in 4-12 days

0

29

Gravely 08744300

SHEAVE, IDLER

$129.99

$

Usually ships in 4-12 days

0

30

Gravely 05425100

BEARING, BALL

$

$

Not available

31

18960

RING, RETAINING

$

$

Not available

32

Gravely 05715200

RING, RETAINING
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 08810900

ASSEMBLY, IDLER SHEAVE

$262.99

$

Usually ships in 4-12 days

0

34

Gravely 08810800

GUIDE, BELT

$

$

Not available

35

Gravely 07225000

V-BELT, PTO CLUTCH

$35.99

$

In Stock, only 1 left!

0

36

Gravely 08814000

SHEAVE, MOWER CLUTCH

$339.99

$

Usually ships in 4-12 days

0

37

Gravely 05420900

BEARING, BALL 1.574 X 3.149 X .708

$193.99

$

In Stock, only 3 left!

0

38

Gravely 06443600

WASHER, SPECIAL
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

39

Gravely 06309300

WASHER, LOCK 7/16 REG.
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

40

Gravely 06223100

BOLT, HEX 7/16-20 X 2.50
(Superseded to 06200421)

Note: (16 & 20 HP)

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 06214000

BOLT, HEX 10MM X 1.50

Note: (16 & 20 HP)

$

$

Not available
