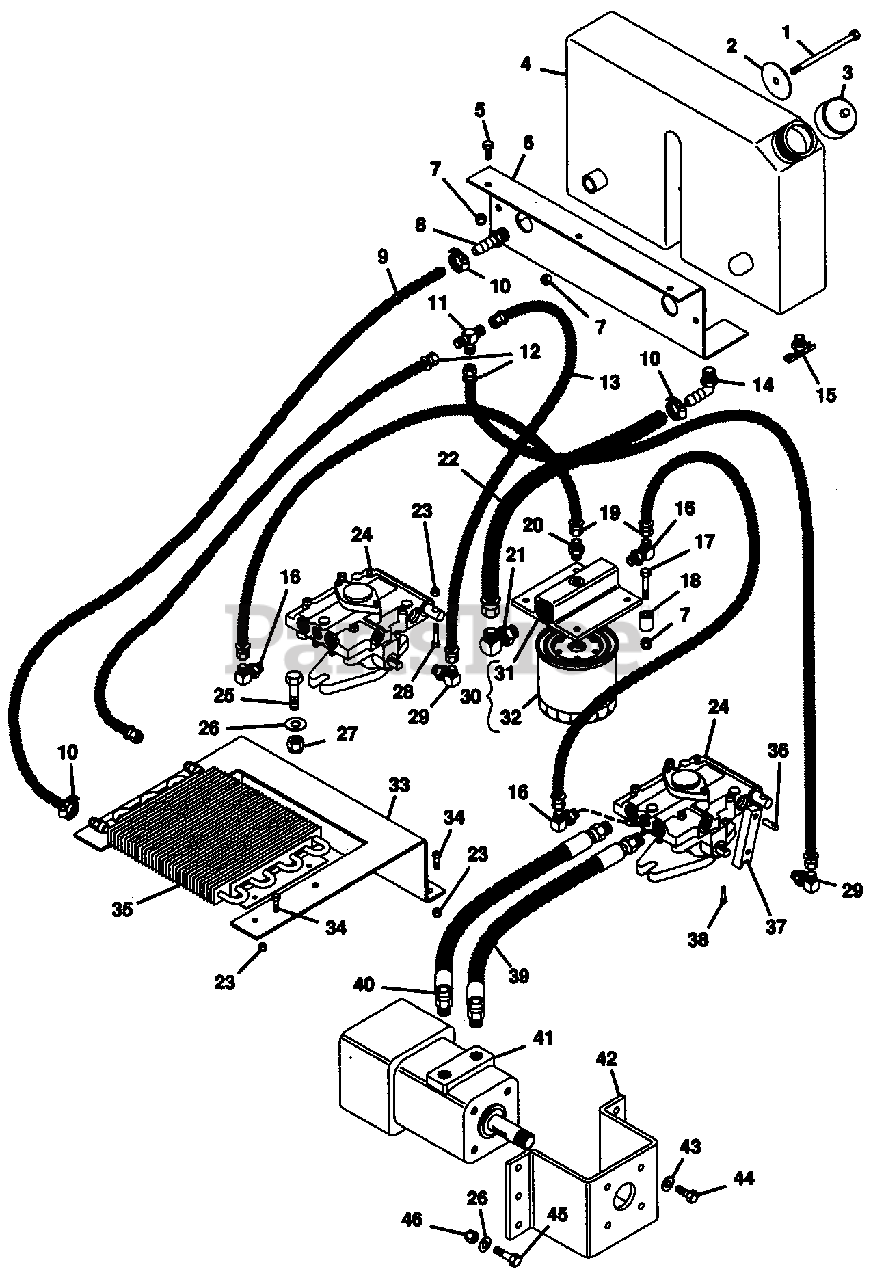

988020 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Hydraulic System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

Hydraulic System Parts Diagram

  • Title

1

Gravely 05948000

BOLT, HEX 5/16-18 X 3.50

$

$

Not available

2

Gravely 08857300

WASHER, FLAT .344 X 3.0 X .060

$

$

Not available

3

Gravely 08826200

CAP, TANK

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 08868400

TANK, HYDRAULIC OIL

$

$

Not available

5

Gravely 05947000

BOLT, HEX 5/16-18 X .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 08857200

BRACKET, HYD. TANK MTG.

$

$

Not available

7

Gravely 06530200

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07018800

ADAPTOR, MALE

$

$

Not available

9

Gravely 08856600

HOSE, OIL COOLER TO TANK

$

$

Not available

10

Gravely 06923500

CLAMP, .88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

11

Gravely 07021500

ADAPTOR, TEE

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 08811300

HOSE, HYD. VALVE TO TANK

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 08856400

HOSE, PUMP TO TEE

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 07019800

FITTING, MALE ELBOW 1/2 X 1/2

$

$

Not available

15

Gravely 07018700

COCK, DRAIN

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 08800700

ADAPTOR, 2503-4-4

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05957200

BOLT, HEX 5/16-18 X 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08839600

BUSH., ST. .328 X .462 X 1.00 STL.

$

$

Not available

19

Gravely 08845200

HOSE, OIL FILTER TO PUMP

$

$

Not available

20

Gravely 08801500

ADAPTOR, 0503-4-4

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 07018200

ADAPTOR, P-H #2503-8-8

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 08856500

HOSE, TANK TO OIL FILTER

$

$

Not available

23

Gravely 06531000

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 09279900

PUMP, VARIABLE DISPLACE

$1238.99

$

Usually ships in 4-12 days

0

25

Gravely 05934800

BOLT, HEX 3/8-16 X 1.125

$

$

Not available

26

Gravely 06436200

WASHER, FLAT .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06529600

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05967100

BOLT, HEX 1/4-20 X 2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 00313270

ADAPTOR, 2503-6-6

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 08844700

ASSEMBLY, SPIN-ON LUBE

$

$

Not available

31

Gravely 08157900

ASSEMBLY, HEAD

$

$

Not available

32

Gravely 08841800

ELEMENT

$39.99

$

Usually ships in 4-12 days

0

33

Gravely 08856300

BRACKET, OIL COOLER

Note: (17 HP)

$

$

Not available

33

Gravely 08856900

BRACKET, OIL COOLER

Note: (16 HP)

$

$

Not available

33

Gravely 08857000

BRACKET, OIL COOLER

Note: (20 HP)

$

$

Not available

34

Gravely 05945800

BOLT, HEX 1/4-20 X .750

$

$

Not available

35

Gravely 08856200

COOLER

$

$

Not available

36

Gravely 05808000

PIN, DOWEL

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 08880700

ARM, PUMP ACTUATING

$

$

Not available

38

Gravely 05932900

SCREW, CAP 10-24 X .75 HEX SOCKET

$

$

Not available

39

Gravely 58803900

ASM, HOSE WHEEL MOTOR TO PUMP

$

$

Not available

40

Gravely 58803800

ASM, HOSE WHEEL MOTOR TO PUMP

$149.99

$

Usually ships in 4-12 days

0

41

Gravely 08864000

MOTOR, HYDRAULIC WHEEL

$

$

Not available

42

Gravely 08842400

BRACKET, WHEEL MOTOR

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 06308800

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 05959400

BOLT, HEX .38/16 X .75 PL GR5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 05948700

BOLT, HEX 3/8-16 X 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06535800

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
