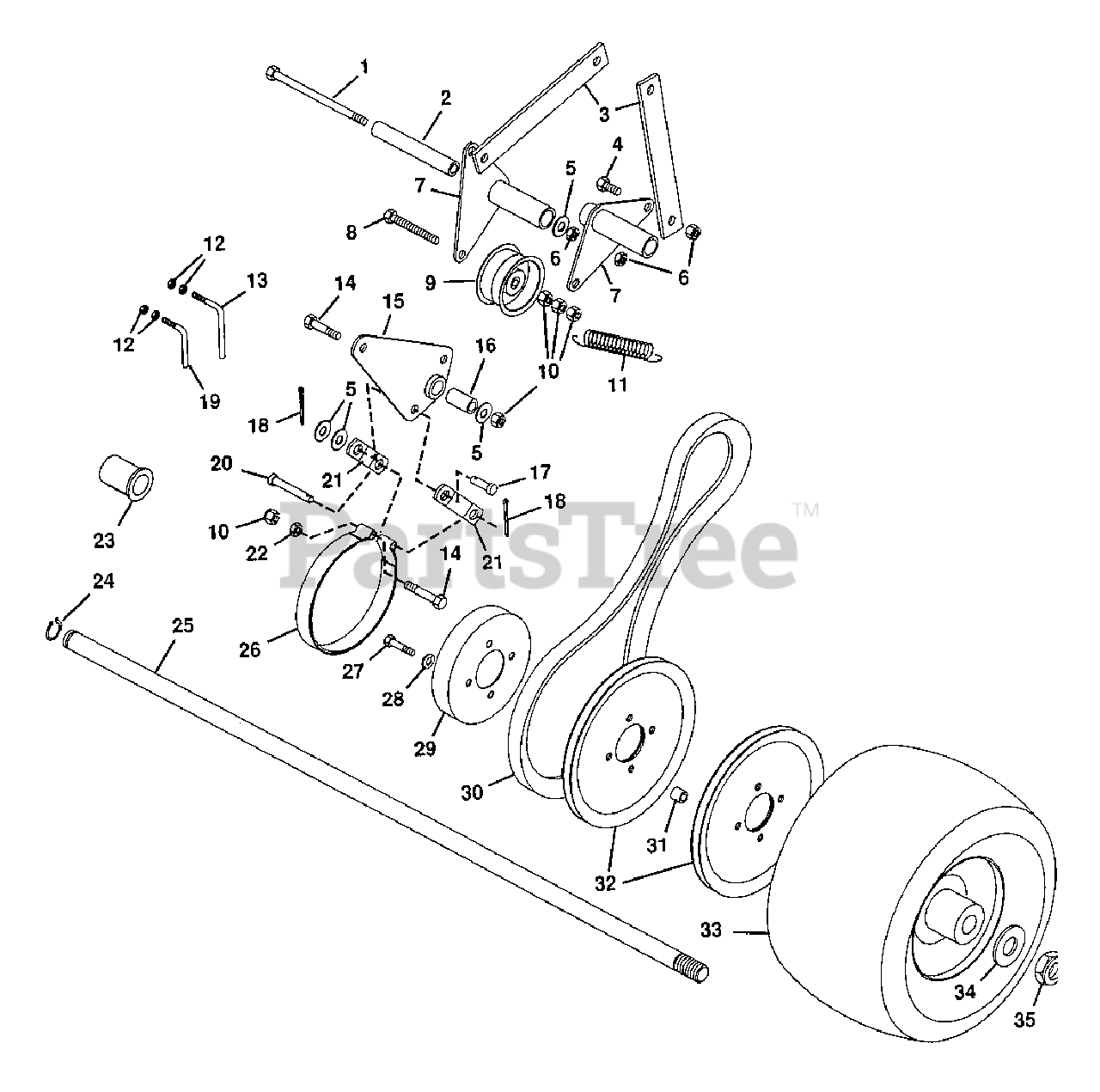

988015 - Gravely Pro Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 14hp Kohler

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 189306

Bolt, Hex 3/8-1660
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

2

49665

Bushing, St. .385 x.610 x3.85 Stl.

$

$

Not available

3

49668

Strap, Wheel Clutch

$

$

Not available

4

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

49266

Weldment, Wheel Clutch Arm

$

$

Not available

8

13620

Bolt, Hex 3/8-16x3.00 All Thread

$

$

Not available

9

48870

Sheave, Idler

$

$

Not available

10

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

47314

Spring, Clutch Idler

$

$

Not available

12

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

50294

Rod, Pulley Cleaning

$

$

Not available

14

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

49036

Weldment, Brake Arm

$

$

Not available

16

49027

Bushing, St. .391 x.622x.950 Stl.

$

$

Not available

17

18417

Pin, Clevis 3/8x.594

$

$

Not available

18

Gravely 177923

Pin, Cotter .12505
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

19

41355

Rod, Pulley Cleaning

$

$

Not available

20

11718

Pin, Clevis 3/8x1.093

$

$

Not available

21

49026

Link, Brake Arm

$

$

Not available

22

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

49969

Bushing, Flange

$

$

Not available

24

17980

Ring, Retaining

$

$

Not available

25

49034

Shaft, Axle

$

$

Not available

26

49017

Assembly, Brake Band

$

$

Not available

27

Gravely 180083

Bolt, Hex 5/16-18x1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

28

Gravely 120214

Washer, Lock 5/16 Reg,
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

29

49015

Drum, Brake

$

$

Not available

30

49029

Belt, Vee Drive Wheel (Set of 2)

Note: (Set of 2)

$

$

Not available

31

48868

Bushing, St. .385x.625x.475 Stl.

$

$

Not available

32

49033

Pulley, Pro Drive Wheel

$

$

Not available

33

48999

Assembly, Wheel 13x8.50-6

$

$

Not available

34

Gravely 423315

Washer, Flat .813x1.37x.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

35

22502

Nut, Lock 3/4-10 Light Thin

$

$

Not available
