988015 - Gravely Pro Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) TRANSMISSION 700-052 Parts Diagram

Pro Walk-Behind Mower Power Unit, 14hp Kohler

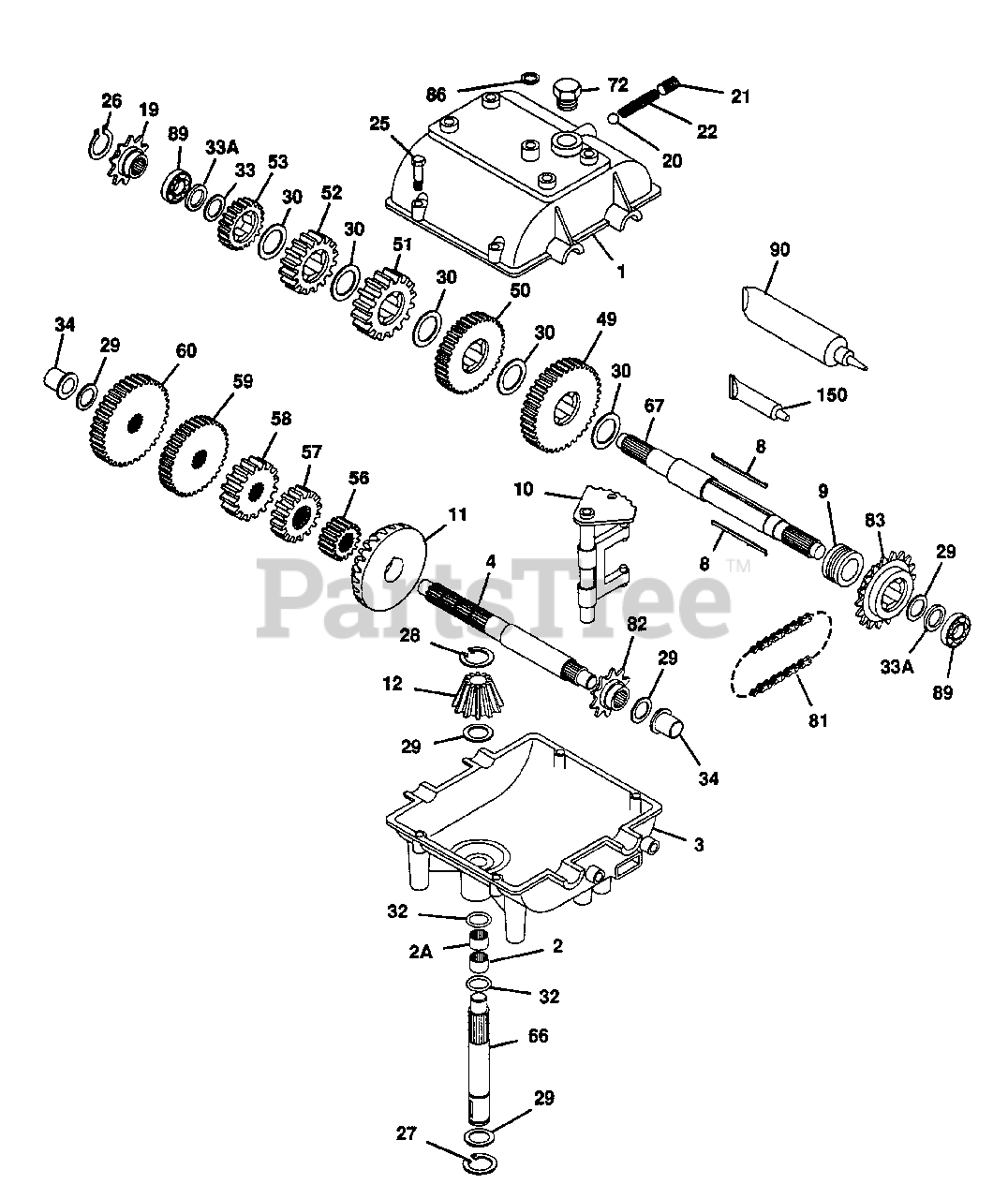

TRANSMISSION 700-052 Parts Diagram

  • Title

1

Gravely 772099A

COVER, TRANSMISSION

$

$

Not available

2

Gravely 780086

BEARING, NEEDLE

$

$

Not available

2A

Gravely 780142

BEARING, NEEDLE

$

$

Not available

3

Gravely 770090A

CASE, TRANSMISSION

$

$

Not available

4

Gravely 776134

SHAFT, COUNTER

$

$

Not available

8

Gravely 792089A

KEY

$

$

Not available

9

Gravely 784266

COLLAR, SHIFT

$

$

Not available

10

Gravely 784267

ROD & FORK ASSEMBLY, SHIFT

$

$

Not available

11

Gravely 778137A

GEAR, BEVEL (42 TEETH)

Note: (42 TEETH)

$

$

Not available

12

Gravely 778113A

BEVEL PINION, INPUT

$

$

Not available

19

Gravely 786095

SPROCKET (12 TEETH)

Note: (12 TEETH)

$

$

Not available

20

Gravely 792077

BALL, STEEL 5/16

$

$

Not available

21

Gravely 792078

SCREW, SET 3/8-16X3/8

$

$

Not available

22

Gravely 792079

SPRING

$

$

Not available

25

Gravely 792073

SCREW, HHD TAPITE 1/4-20X1-1/4

$

$

Not available

26

Gravely 792072

RING, RETAINING

$

$

Not available

27

Gravely 792035

RING, RETAINING

$

$

Not available

28

Gravely 788040

RING, RETAINING

$

$

Not available

29

Gravely 780072

WASHER, THRUST

$

$

Not available

30

Gravely 780108

WASHER, THRUST

$

$

Not available

32

Gravely 792001

O-RING

$

$

Not available

33

Gravely 780109

WASHER, THRUST

$

$

Not available

33A

Gravely 780065

WASHER, THRUST

$

$

Not available

34

Gravely 780105A

BUSHING, FLANGED

$

$

Not available

49

Gravely 778125

GEAR, SPUR (35 TEETH)

Note: (35 TEETH)

$

$

Not available

50

Gravely 778124A

GEAR, SPUR (30 TEETH)

Note: (30 TEETH)

$

$

Not available

51

Gravely 778123A

GEAR, SPUR (25 TEETH)

Note: (25 TEETH)

$

$

Not available

52

Gravely 778122A

GEAR, SPUR (22 TEETH)

Note: (22 TEETH)

$

$

Not available

53

Gravely 778121A

GEAR, SPUR (20 TEETH)

Note: (20 TEETH)

$

$

Not available

56

Gravely 778136

GEAR, SPUR (15 TEETH)

Note: (15 TEETH)

$

$

Not available

57

Gravely 778126A

GEAR, SPUR (20 TEETH)

Note: (20 TEETH)

$

$

Not available

58

Gravely 778127A

GEAR, SPUR (25 TEETH)

Note: (25 TEETH)

$

$

Not available

59

Gravely 778128A

GEAR, SPUR (28 TEETH)

Note: (28 TEETH)

$

$

Not available

60

Gravely 778129A

GEAR, SPUR (30 TEETH)

Note: (30 TEETH)

$

$

Not available

66

Gravely 776135

SHAFT, INPUT

$

$

Not available

67

Gravely 776307

SHAFT, OUTPUT & BRAKE

$

$

Not available

72

Gravely 792074

PLUG, THREADED

$

$

Not available

81

Gravely 786081

CHAIN, ROLLER (NO. 41 CHAIN, 24 LINKS)

Note: (NO. 41 CHAIN, 24 LINKS)

$

$

Not available

82

Gravely 786082

SPROCKET (9 TEETH)

Note: (9 TEETH)

$

$

Not available

83

Gravely 786083

SPROCKET (18 TEETH)

Note: (18 TEETH)

$

$

Not available

86

Gravely 788069

SEAL, SQUARE CUT

$

$

Not available

89

Gravely 780092

BEARING, BALL

$

$

Not available

90

Gravely 788067B

GREASE (32 OZ. BOTTLE BENTONITE GREASE)

Note: (32 OZ. BOTTLE BENTONITE GREASE)

$

$

Not available

150

Gravely 510334

GASKET ELIMINATOR (LOCTITE 515)

Note: (LOCTITE 515)

$

$

Not available
