988015 - Gravely Pro Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro Walk-Behind Mower Power Unit, 14hp Kohler

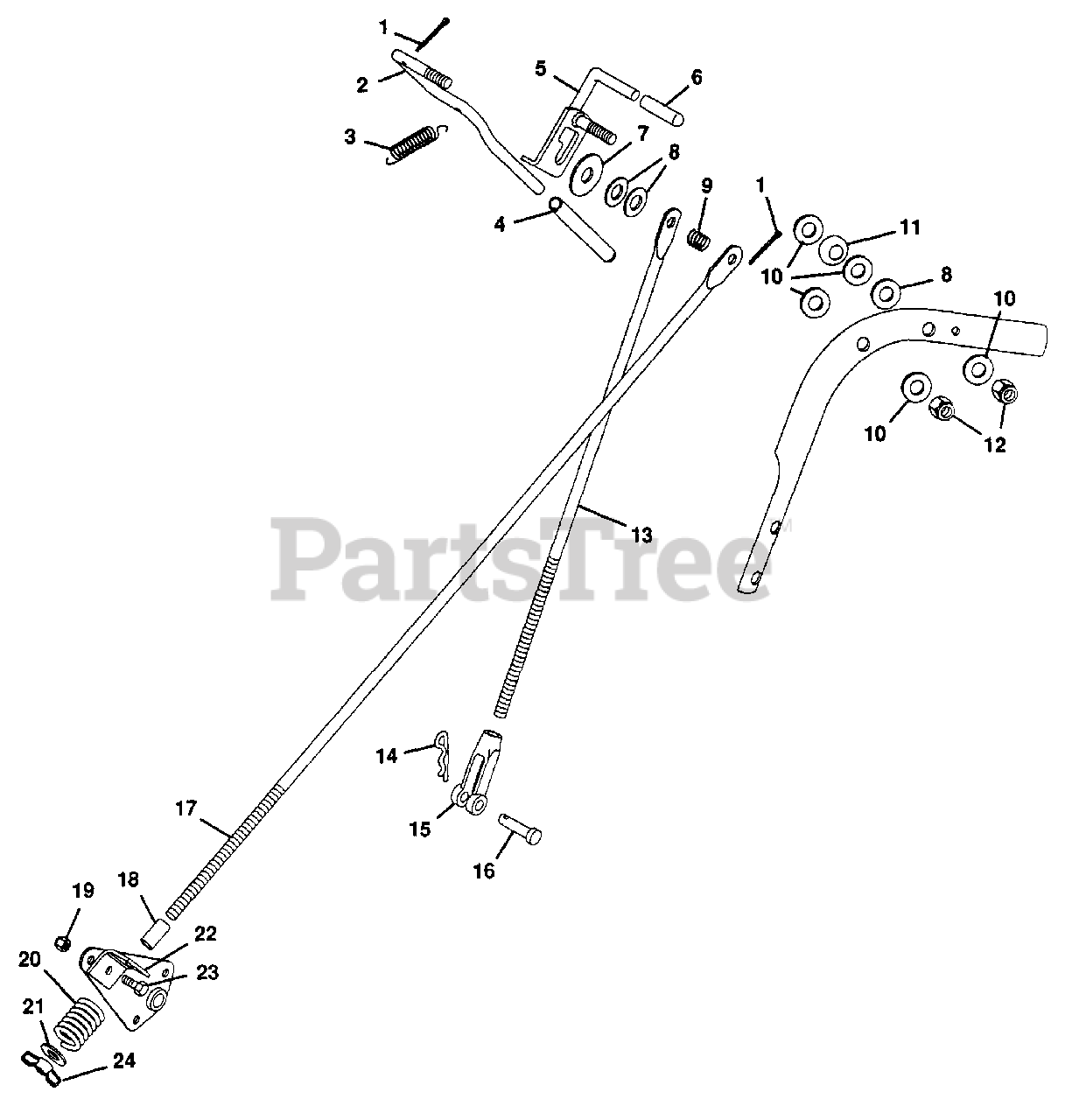

STEERING CONTROL Parts Diagram

  • Title
1

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

2

Gravely 047345

LEVER, HAND CLUTCH
(Superseded to 08829700)

$219.99

$

Usually ships in 4-12 days

0

3

Gravely 043446

SPRING, EXTENSION
(Superseded to 08339300)

$5.99

$

In Stock, only 1 left!

0

4

Gravely 043197

GRIP, HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 042990

WELDMENT, CLUTCH BRAKE
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 043192

TIP, BRAKE LOCK LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 446477

WASHER, FLAT .438X1.375X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 043193

SPRING, COMPRESSION
(Superseded to 08338800)

$6.99

$

In Stock, only 2 left!

0

10

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

11

Gravely 041623

WASHER, SPRING .375 I.D.
(Superseded to 06433000)

$

$

Not available

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 049705

ROD, CLUTCH ACTUATING
(Superseded to 08878600)

$49.99

$

Usually ships in 4-12 days

0

14

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 034633

CLEVIS, 5/16-24 ADJUSTABLE
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 121741

PIN, CLEVIS .312X.812
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 049337

ROD, BRAKE
(Superseded to 08878500)

$

$

Not available

18

Gravely 050094

BUSHING, ST. .327X.411X.2.0 STL.
(Superseded to 08841300)

$

$

Not available

19

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 049704

BRACKET, BRAKE ROD
(Superseded to 08837000)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 040194

NUT, WING 5/16-18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0
