988014 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Kohler

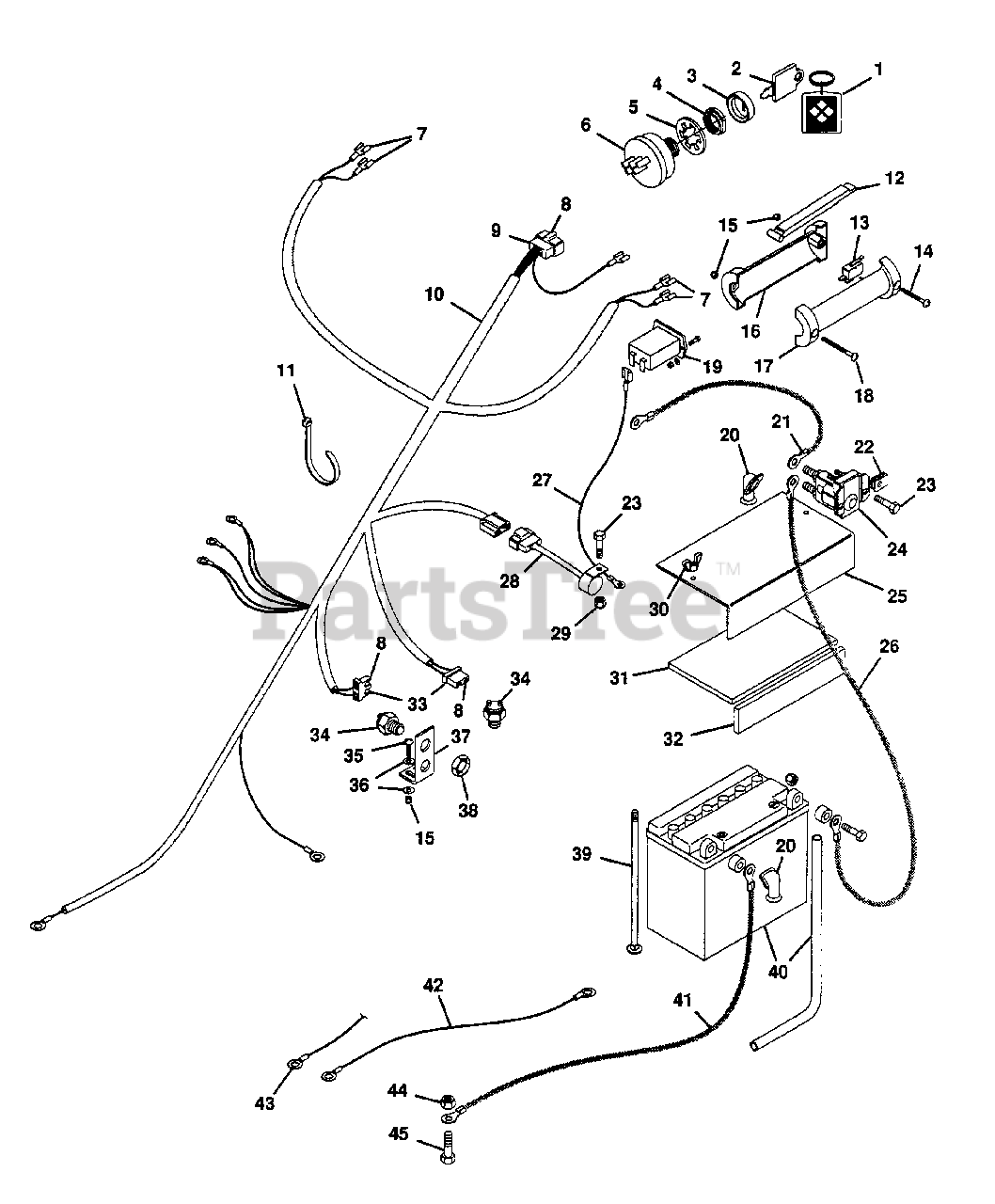

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Gravely 045842

CHAIN, KEY
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

BOOT, FOR 9/16 SWITCH
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045489

NUT, 9/16-24 FOR SWITCH
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 019667

WASHER, LOCK
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 020564

SWITCH, IGNITION
(Superseded to 53507600)

$

$

Not available

7

Gravely 046988

TERMINAL, FEMALE
(Superseded to 08828400)

$

$

Not available

8

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

9

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

10

Gravely 047382

HARNESS, WIRING
(Superseded to 08829900)

$

$

Not available

11

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

12

Gravely 046822

LEVER
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

14

Gravely 159929

SCREW, MACHINE 10-24X.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

15

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 046821

HANDLE, R.H.
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

17

Gravely 046820

HANDLE, L.H.
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

18

Gravely 159967

SCREW, MACH. 10-24X1.50 PHDCR
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 038256

HOURMETER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

20

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

21

Gravely 035141

CABLE, SOLENOID TO STARTER
(Superseded to 08805700)

$

$

Not available

22

Gravely 011676

NUT, SPEED 1/4-20
(Superseded to 07016800)

$

$

Not available

23

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 045071

SWITCH, MAGNETIC
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

25

Gravely 049294

COVER, BATTERY
(Superseded to 08835800)

$

$

Not available

26

Gravely 042129

CABLE, BATTERY TO SOLENOID
(Superseded to 08816700)

$

$

Not available

27

Gravely 021425

WIRE, INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

28

Gravely 043435

MODULE, INTERLOCK
(Superseded to 58801000)

$162.99

$

Usually ships in 4-12 days

0

29

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

31

Gravely 050417

PAD, BATTERY
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

32

Gravely 050418

PAD, BATTERY
(Superseded to 08800600)

$

$

Not available

33

Gravely 042176

CONNECTOR, 2-WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

35

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 131015

WASHER, FLAT .188X.438X.049
(Superseded to 06409200)

$

$

Not available

37

Gravely 034637

BRACKET, INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

38

Gravely 107354

NUT, STAMPED 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 126922

BOLT, 1/4-20X7.00 RD HD SQ NK
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

40

Gravely 041358

BATTERY, 12 VOLT
(Superseded to 78801800)

$

$

Not available

41

Gravely 042130

CABLE, NEGATIVE BATTERY
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

42

Gravely 042529

WIRE, GROUND
(Superseded to 08818400)

$

$

Not available

43

Gravely 035378

TERMINAL, RING TONGUE
(Superseded to 08805800)

$

$

Not available

44

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 180089

BOLT, HEX 5/16-18X2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0
